Attaching bracket 3831142

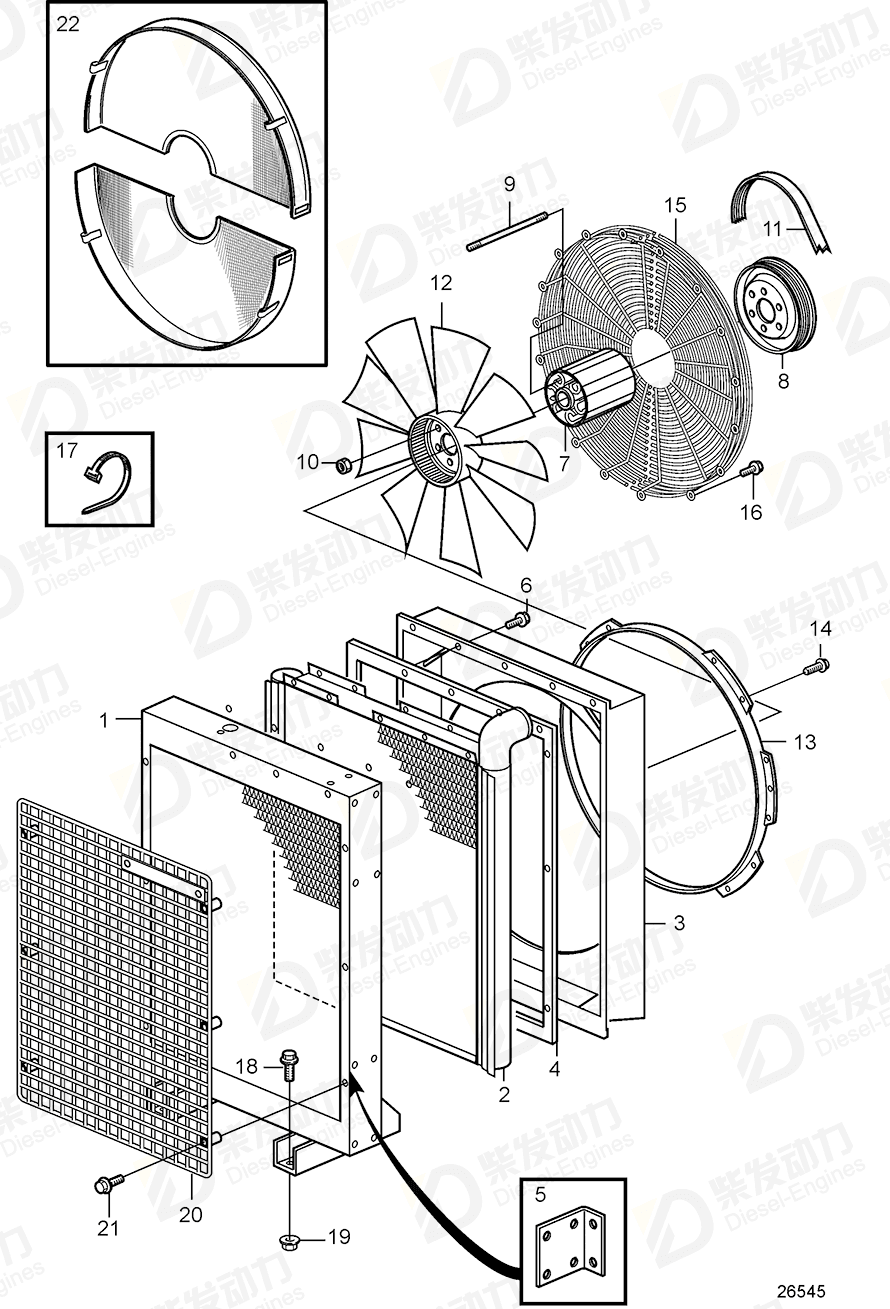

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 888301 | 1 | |
| 2 | Charge air cooler | 3827870 | 1 | |
| 3 | Fan shroud | 3826684 | 1 | |
| 3 | Fan shroud | 40005100 | 1 | |
| 4 | Sealing strip | 3827816 | 1 | (3831141) |
| 5 | Attaching bracket | 3831142 | 4 | |
| 6 | Flange screw | 967949 | 1 | |
| 7 | Fan hub | 3837740 | 1 | |
| 8 | Pulley | 3807446 | 1 | Ratio 1:1,07 |
| 9 | Stud | 981590 | 6 | |
| 10 | Flange lock nut | 971098 | 6 | |
| 11 | V-ribbed belt | 3838617 | 1 | For 3807446 |
| 12 | Fan | 3828964 | 1 | |
| 13 | Fan ring | 3827612 | 1 | |
| 14 | Flange screw | 984734 | 12 | |
| 15 | Fan guard | 3825490 | 2 | |
| 16 | Flange screw | 984734 | 12 | |
| 17 | Cable tie | 948211 | 1 | |
| 18 | Flange screw | 946817 | 8 | |
| 19 | Flange nut | 990942 | 8 | |
| 20 | Radiator protector | 3827871 | 1 | |
| 21 | Flange screw | 994385 | 6 | L=45mm |
| 22 | Air filter | 22036546 | 1 |
| Item | Part Name | Part No. |
| 5 | Attaching bracket 3831142 | 3831142 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE TAD1242GE TAD940GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE |
| Application | Radiator and Fan Radiator and Fan. Pusher Radiator and Fan. Pusher. 1, 09:1 |
