Attaching clamp 414348

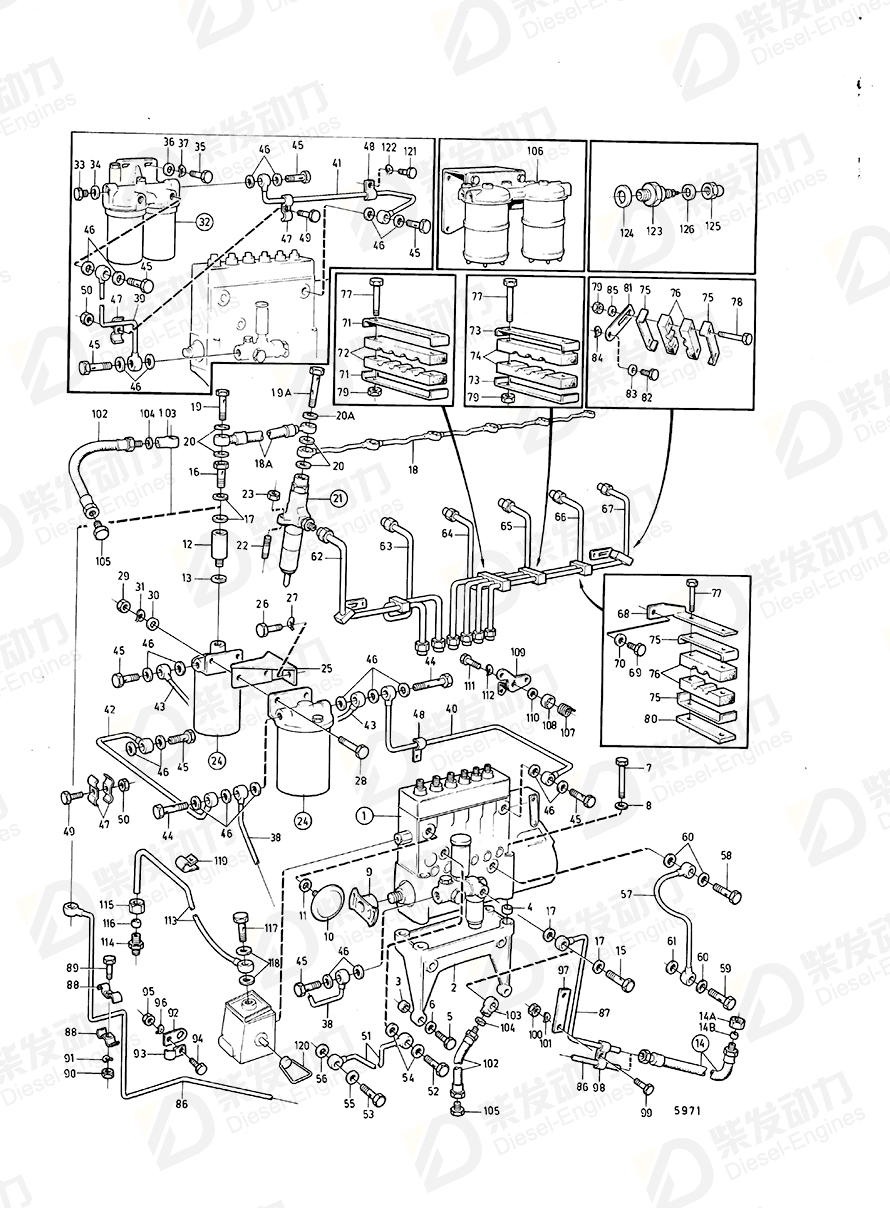

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 837046 | 1 | |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 10 | Pressure equalizer | 466398 | 1 | |
| 11 | Gasket | 957178 | 1 | |
| 12 | Overflow valve | 35096 | 1 | |
| 13 | Gasket | 957178 | 1 | |
| 14 | Fuel hose | 845450 | 2 | (880618) |
| 15 | Hollow screw | 25167 | 1 | |
| 16 | Hollow screw | 16496 | 1 | |
| 17 | Gasket | 957178 | 4 | |
| 18 | Leak-off pipe | 424202 | 1 | D42A PP spec. 16053, 867638., Late type |
| 19 | Hollow screw | 74033 | 1 | |
| 20 | Gasket | 957171 | 14 | |
| 21 | Injector | 240337 | 6 | |
| 22 | Stud | 941928 | 12 | |
| 23 | Nut | 417110 | 12 | |
| 25 | Bracket | 820811 | 1 | Replaced by 77989., D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 26 | Hexagon screw | 940115 | 2 | |
| 27 | Spring washer | 942336 | 2 | |
| 28 | Hexagon screw | 955551 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 29 | Hexagon nut | 940157 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 30 | Washer | 955896 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 31 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 32 | Filter housing | 241672 | 1 | Replaced by 1 PC 843512,1 ST 191026., Classed engine,not included in fuel feed pump. |
| 33 | Plug | 960630 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 34 | Gasket | 957178 | 2 | |
| 35 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 36 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 37 | Spring washer | 942336 | 2 | |
| 38 | Fuel pipe | 820808 | 1 | MO80263/XXXXX-89183/XXXXX |
| 38 | Fuel pipe | 822458 | 1 | Spec.9803 |
| 39 | Tube | 422553 | 1 | Engine with control motor type crouzet |
| 40 | Fuel pipe | 820809 | 1 | MO80263/XXXXX-89183/XXXXX |
| 40 | Tube | 822172 | 1 | Spec.9803 |
| 41 | Fuel pipe | 422554 | 1 | Engine with control motor type crouzet |
| 42 | Fuel pipe | 422267 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 43 | Fuel pipe | 422268 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 44 | Hollow screw | 180211 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 45 | Hollow screw | 25167 | 4 | |
| 46 | Gasket | 957178 | 14 | |
| 47 | Clamp | 402404 | 2 | |
| 48 | Clamp | 18387 | 1 | |
| 49 | Cross recessed screw | 950046 | 1 | |
| 50 | Hexagon nut | 955825 | 1 | Late type |
| 51 | Oil feed pipe | 422245 | 1 | |
| 52 | Hollow screw | 48634 | 1 | |
| 53 | Hollow screw | 942081 | 1 | |
| 54 | Gasket | 957173 | 2 | |
| 55 | Gasket | 18666 | 1 | |
| 56 | Gasket | 11994 | 1 | |
| 57 | Return pipe | 422246 | 1 | |
| 58 | Hollow screw | 25167 | 1 | |
| 59 | Hollow screw | 954394 | 1 | |
| 60 | Gasket | 957178 | 3 | |
| 61 | Gasket | 957181 | 1 | |
| 62 | Delivery pipe | 422225 | 1 | |
| 63 | Delivery pipe | 422226 | 1 | |
| 64 | Delivery pipe | 422227 | 1 | |
| 65 | Delivery pipe | 422228 | 1 | |
| 66 | Delivery pipe | 422229 | 1 | |
| 67 | Delivery pipe | 422230 | 1 | |
| 68 | Bracket | 422400 | 1 | |
| 69 | Cross recessed screw | 950046 | 1 | |
| 70 | Washer | 955893 | 1 | |
| 71 | Attaching clamp | 414348 | 2 | |
| 72 | Attaching clamp | 414349 | 2 | |
| 73 | Attaching clamp | 414346 | 2 | |
| 74 | Attaching clamp | 414347 | 2 | |
| 75 | Attaching clamp | 414344 | 8 | |
| 76 | Attaching clamp | 414345 | 8 | |
| 77 | Hexagon screw | 955247 | 8 | |
| 78 | Hexagon screw | 955249 | 4 | |
| 79 | Hexagon nut | 955780 | 10 | |
| 80 | Nut plate | 414736 | 1 | |
| 81 | Bracket | 422323 | 2 | |
| 82 | Cross recessed screw | 950046 | 2 | |
| 83 | Washer | 955893 | 2 | |
| 84 | Spring washer | 941906 | 2 | |
| 85 | Washer | 940090 | 2 | |
| 86 | Fuel pipe | 821170 | 1 | Replaced by 77989., D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 86 | Tube | 822174 | 1 | Spec.9803 |
| 86 | Fuel pipe, pipe | 845032 | 1 | Replaced by 77989., (823658) |
| 87 | Fuel pipe | 842656 | 1 | |
| 88 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 88 | Clamp | 942542 | 1 | |
| 89 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 90 | Hexagon nut | 955825 | 1 | Late type |
| 91 | Spring washer | 941906 | 1 | |
| 92 | Anchorage | 821036 | 1 | |
| 93 | Clamp | 952625 | 1 | |
| 94 | Cross recessed screw | 950046 | 1 | |
| 95 | Hexagon nut | 955825 | 1 | Late type |
| 96 | Spring washer | 941906 | 1 | |
| 97 | Anchorage | 821625 | 1 | |
| 98 | Clamp | 941492 | 1 | |
| 99 | Cross recessed screw | 950046 | 1 | |
| 100 | Hexagon nut | 955825 | 1 | Late type |
| 101 | Spring washer | 941906 | 1 | |
| 103 | Banjo nipple | 26016 | 2 | Early type |
| 104 | Gasket | 957181 | 2 | |
| 105 | Nipple | 22753 | 2 | |
| 107 | Spring | 239056 | 1 | Replaced by 837364. |
| 108 | Cover | 239059 | 1 | Replaced by 837364 |
| 109 | Lever | 821134 | 1 | |
| 110 | Washer | 120265 | 1 | |
| 111 | Hexagon screw | 955637 | 1 | |
| 112 | Spring washer | 941906 | 1 | |
| 113 | Tube | 467497 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171 |
| 114 | Nipple | 949554 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171. |
| 115 | Fitting nut | 954357 | 1 | |
| 116 | Fitting | 954365 | 1 | |
| 117 | Hollow screw | 74040 | 1 | |
| 118 | Gasket | 11994 | 2 | |
| 119 | Clamp | 942778 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171. |
| 120 | Attaching lug | 422525 | 1 | |
| 121 | Hexagon screw | 940100 | 1 | |
| 122 | Spring washer | 941906 | 1 | |
| 14A | Fitting nut | 956983 | 4 | |
| 14B | Ferrule | 956969 | 4 | |
| 18A | Fuel hose | 837794 | 1 | D42A PP spec. 16053, 867638., Late type |
| 19A | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 20A | Gasket | 957171 | 1 |
| Item | Part Name | Part No. |
| 71 | Attaching clamp 414348 | 414348 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC TD100A TD100AHC TD100ARC |
| Application | Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System Spec.S5175/497250 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D |
| Specification | |
| Descriptions | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
