Attaching lug 844608

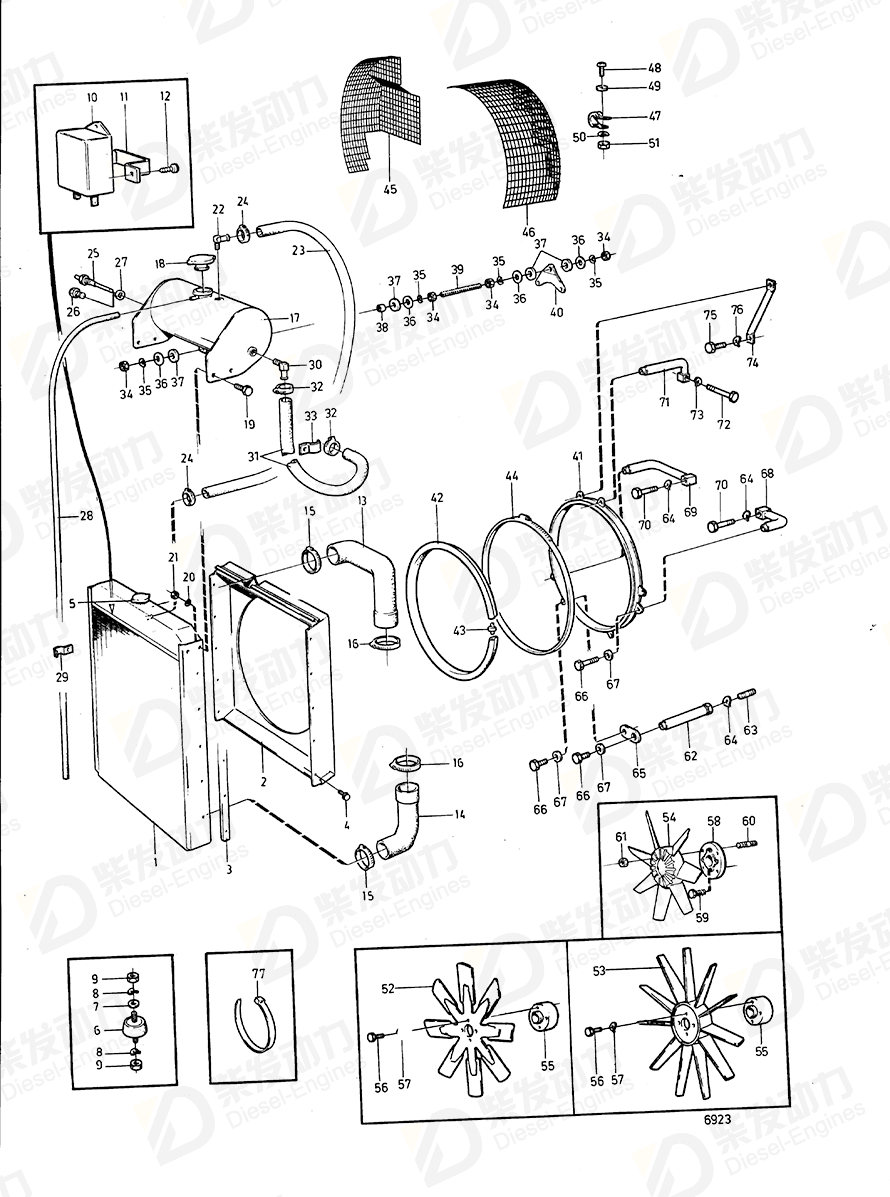

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 844090 | 1 | 3''repl by 863799 |
| 2 | Fan shroud | 844061 | 1 | |
| 3 | Sealing strip | 821707 | 1 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 4 | Hexagon screw | 945970 | 10 | |
| 5 | Radiator cap | 344753 | 1 | |
| 6 | Rubber cushion | 833720 | 2 | |
| 7 | Washer | 955898 | 2 | Late type |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Hexagon nut | 955850 | 4 | |
| 10 | Relay | 1501618 | 1 | Replaced by relay 1622515 and 1pc clamp 941772., Early type |
| 11 | Brace | 846728 | 1 | Repl by 941772 |
| 12 | Cross recessed screw | 955120 | 3 | |
| 13 | Radiator hose | 845186 | 1 | |
| 14 | Radiator hose | 844057 | 1 | |
| 15 | Hose clamp | 943479 | 2 | |
| 16 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 17 | Expansion tank | 845436 | 1 | |
| 17 | Expansion tank | 848525 | 1 | Repl by 3828638 |
| 18 | Cover | 334687 | 1 | |
| 19 | Hexagon screw | 955294 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Hexagon nut | 955782 | 4 | |
| 22 | Elbow nipple | 180283 | 1 | |
| 23 | Hose | 13776 | 1 | L=450mm early type |
| 24 | Hose clamp | 945651 | 2 | (943470) |
| 25 | Level indicator | 1581232 | 1 | |
| 26 | Plug | 836268 | 1 | |
| 27 | Gasket | 11994 | 1 | |
| 28 | Hose | 192618 | 1 | L=1400mm |
| 29 | Clamp | 18387 | 3 | |
| 30 | Elbow nipple | 942240 | 1 | |
| 31 | Hose | 952969 | 1 | (943368) L=600mm |
| 32 | Hose clamp | 943472 | 2 | |
| 33 | Clamp | 949379 | 1 | |
| 34 | Hexagon nut | 955782 | 4 | |
| 35 | Spring washer | 941907 | 4 | |
| 36 | Washer | 418531 | 4 | |
| 37 | Rubber bushing | 403877 | 4 | |
| 38 | Spacer sleeve | 403894 | 2 | |
| 39 | Control rod | 845404 | 1 | |
| 40 | Attaching lug | 847076 | 1 | |
| 41 | Fan ring | 843694 | 1 | |
| 42 | Sealing strip | 837300 | 1 | |
| 43 | Connector | 475450 | 1 | |
| 44 | Hose clamp | 947467 | 1 | |
| 45 | Safety net | 843816 | 1 | |
| 46 | Safety net | 843817 | 1 | |
| 47 | Clamp | 952632 | 12 | Late type |
| 48 | Cross recessed screw | 956095 | 12 | |
| 49 | Washer | 192404 | 12 | |
| 50 | Washer | 960139 | 12 | MO201374/XXXXX- |
| 51 | Lock nut | 963105 | 12 | |
| 52 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 53 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 54 | Fan | 846337 | 1 | Visco D=620mm |
| 55 | Spacer ring | 843839 | 1 | |
| 56 | Hexagon screw | 940186 | 4 | |
| 57 | Spring washer | 941907 | 4 | |
| 59 | Hex. socket screw | 956570 | 4 | |
| 61 | Hexagon nut | 955783 | 4 | |
| 62 | Anchorage | 843406 | 1 | Alt |
| 63 | Stud | 953241 | 1 | |
| 64 | Spring washer | 941907 | 6 | |
| 65 | Attaching lug | 844608 | 1 | |
| 66 | Hexagon screw | 955523 | 6 | |
| 67 | Washer | 960141 | 6 | |
| 68 | Anchorage | 843425 | 1 | |
| 69 | Anchorage | 843428 | 1 | |
| 70 | Hexagon screw | 940136 | 1 | |
| 70 | Hexagon screw | 955530 | 1 | |
| 71 | Anchorage | 843429 | 1 | |
| 72 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 73 | Spring washer | 942336 | 1 | |
| 74 | Anchorage | 845411 | 1 | Late type |
| 75 | Hexagon screw | 940133 | 1 | |
| 76 | Spring washer | 942336 | 1 | |
| 77 | Cable tie | 948210 | 1 | (827353) |
| Item | Part Name | Part No. |
| 65 | Attaching lug 844608 | 844608 |
| Details | |
| Engine model | TD60A TD60B TD60D TID60D |
| Application | FAN, FAN- AND BELT PROTECTION WITH INSTALLATION COMPONENTS Fan, Fan-and Belt Protection with Installation Components: A Fan, Fan-and Belt Protection with Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS |
