Attaching plate 843530

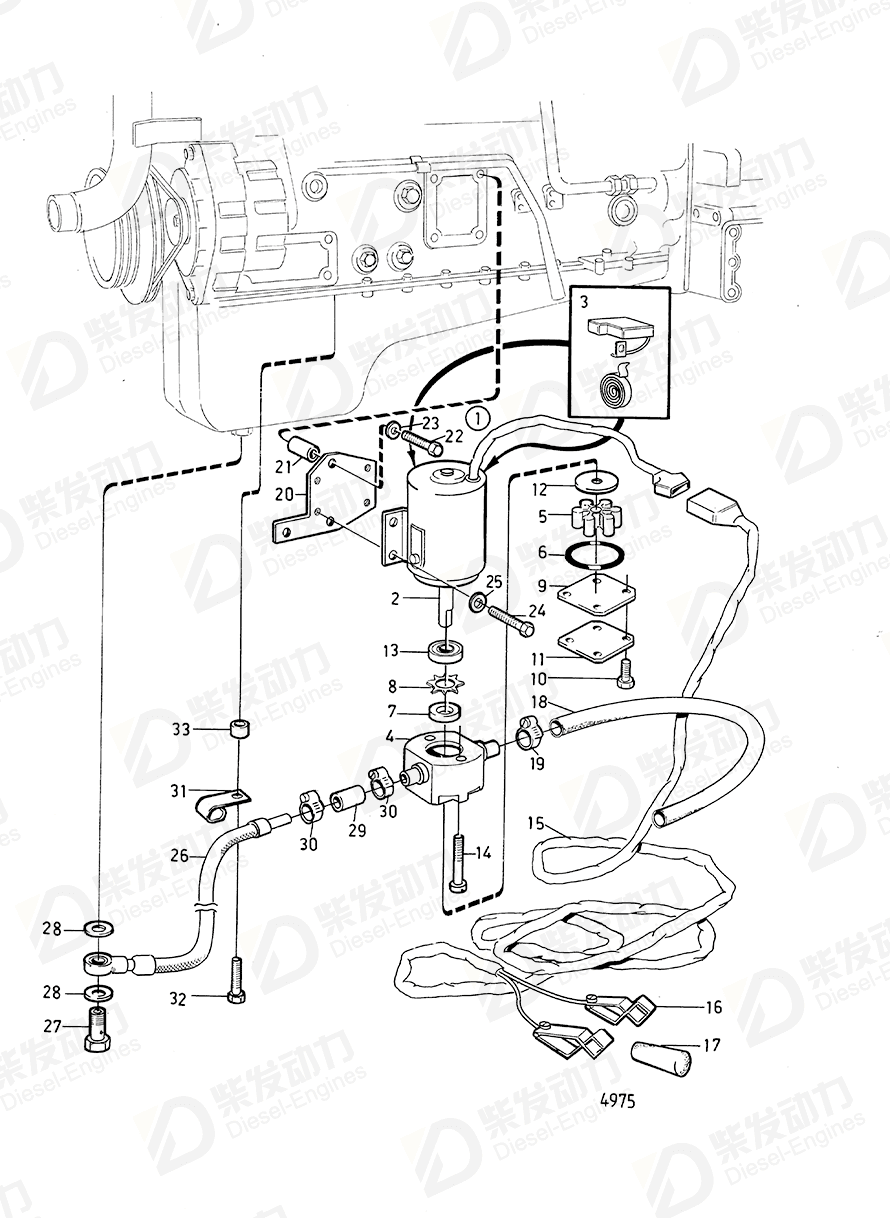

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 843410 | 1 | 24V |
| 3 | Carbon brush set | 844014 | 2 | |
| 4 | Pump housing | 844015 | 1 | |
| 5 | Impeller kit | 844022 | 1 | |
| 9 | Wear washer | 844017 | 1 | |
| 10 | Screw | 844021 | 4 | |
| 11 | Cap | 844018 | 1 | |
| 12 | Wear washer | 844016 | 1 | |
| 13 | Deflector ring | 844019 | 1 | |
| 14 | Screw | 844020 | 2 | |
| 15 | Cable block | 843113 | 1 | |
| 16 | Clip, battery cable +pole | 844280 | 2 | 16x1,5mm² |
| 17 | Insulation | 844278 | 1 | Red |
| 17 | Insulation | 844279 | 1 | Black |
| 18 | Hose | 943707 | 1 | L=3000mm |
| 19 | Hose clamp | 943471 | 3 | (951787) |
| 20 | Attaching plate | 843530 | 1 | |
| 21 | Spacer sleeve | 821540 | 3 | Replaced by 1pc 1578938., L=22mm |
| 22 | Hexagon screw | 940162 | 3 | MO-XXXXX/105194 |
| 23 | Spring washer | 942336 | 2 | |
| 24 | Hexagon screw | 955268 | 4 | |
| 25 | Spring washer | 941906 | 4 | |
| 26 | Hose | 842190 | 1 | |
| 27 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 28 | Gasket, plug | 18677 | 2 | |
| 29 | Retaining ring | 941552 | 1 | TH=2.7mm alt |
| 30 | Hose clamp | 943472 | 2 | |
| 31 | Clamp | 942810 | 1 | |
| 32 | Flange screw | 944012 | 1 | |
| 33 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| Item | Part Name | Part No. |
| 20 | Attaching plate 843530 | 843530 |
| Details | |
| Engine model | TD60A TD60B TD60D |
| Application | ELECTRICAL OIL BILGE PUMP AND INSTALLATION COMPONENTS Electrical Oil Bilge Pump and Installation Components: A Electrical Oil Bilge Pump and Installation Components: B |
