Baffle plate 4772181

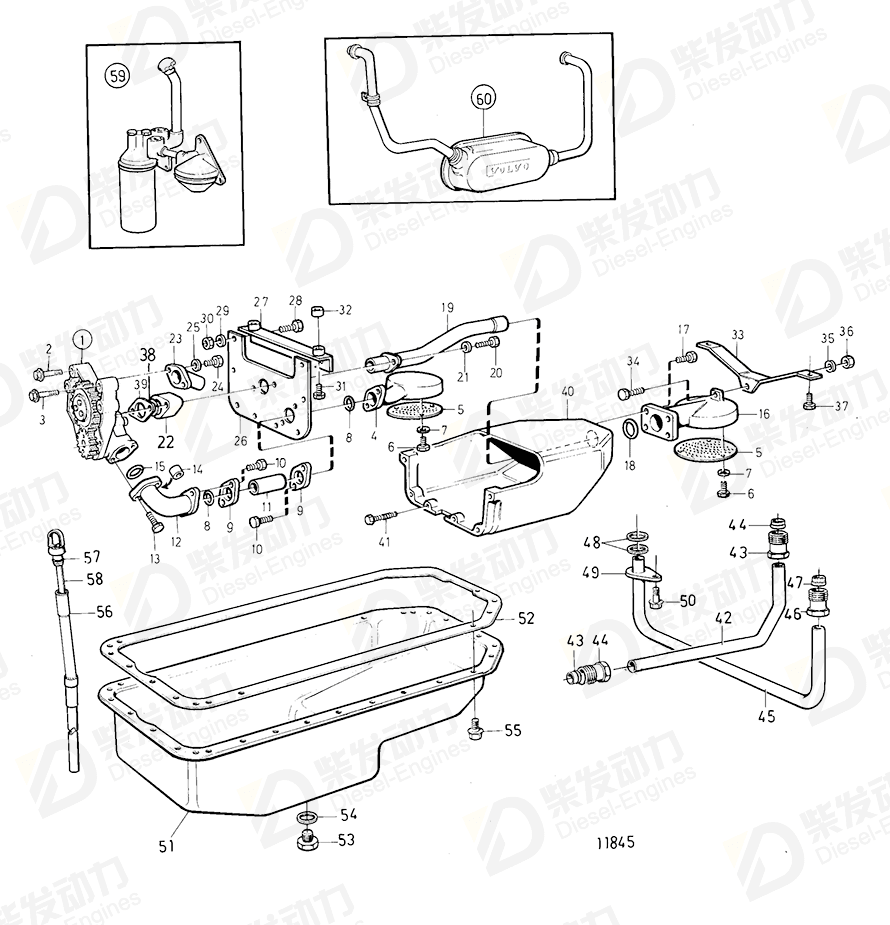

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 4772128 | 1 | Repl by 11030633 |
| 1 | Oil pump | 11030633 | 1 | |
| 2 | Flange nut | 471513 | 4 | |
| 3 | Flange screw | 471734 | 2 | |
| 4 | Strainer housing | 4772173 | 1 | |
| 5 | Strainer | 4778048 | 2 | |
| 6 | Hexagon screw | 955268 | 6 | |
| 7 | Toothed washer | 955948 | 6 | |
| 8 | O-ring | 944126 | 2 | |
| 9 | Flange | 4778330 | 2 | |
| 10 | Flange screw | 946173 | 4 | |
| 11 | Pipe | 4772177 | 1 | |
| 12 | Connector | 4772174 | 1 | |
| 13 | Flange screw | 965216 | 2 | |
| 14 | Sleeve | 4778328 | 1 | |
| 15 | O-ring | 944126 | 1 | |
| 16 | Strainer housing | 4778037 | 1 | |
| 17 | Flange screw | 946671 | 4 | |
| 18 | O-ring | 944126 | 1 | |
| 19 | Suction pipe | 11030590 | 1 | (4772179) |
| 20 | Hexagon screw | 968303 | 2 | |
| 21 | Spring washer | 941907 | 2 | |
| 22 | Spacer | 4772185 | 1 | |
| 23 | Pipe | 4778425 | 1 | |
| 24 | Hexagon screw | 955312 | 2 | |
| 25 | Spring washer | 941907 | 2 | |
| 26 | Baffle plate | 4772181 | 1 | |
| 27 | Bracket | 11030588 | 1 | |
| 28 | Flange screw | 946173 | 2 | |
| 29 | Washer | 955894 | 2 | |
| 30 | Lock nut | 946036 | 2 | |
| 31 | Flange screw | 947760 | 2 | M8x40mm |
| 33 | Bracket | 4772182 | 1 | |
| 34 | Flange screw | 946671 | 1 | |
| 35 | Washer | 955894 | 1 | |
| 36 | Lock nut | 946036 | 1 | |
| 37 | Flange screw | 946440 | 2 | |
| 38 | Spacer | 4778331 | 1 | |
| 39 | Sealing ring | 470383 | 1 | SN-2120226439 |
| 40 | Oil reservoir | 4772172 | 1 | |
| 41 | Flange screw | 946440 | 6 | |
| 42 | Oil pressure pipe | 4772186 | 1 | |
| 43 | Pressure pipe connec | 471595 | 2 | |
| 44 | Ferrule | 956972 | 2 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 45 | Oil pressure pipe | 4772187 | 1 | |
| 46 | Oil feed pipe | 471588 | 1 | |
| 47 | Ferrule | 956972 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 48 | Gasket | 471956 | 2 | |
| 49 | Clamp | 471746 | 1 | |
| 50 | Flange screw | 946440 | 1 | |
| 51 | Sump | 11030522 | 1 | (M24) |
| 52 | Gasket | 865342 | 1 | (864485) |
| 53 | Magnetic plug | 949175 | 1 | |
| 54 | Gasket | 18813 | 1 | |
| 55 | Flange screw | 946440 | 36 | |
| 56 | Tube | 848501 | 1 | For oil dipstick, left side mounting., Replaced by 1pc 862055,1pc 862197,1pc 955984., Early type |
| 56 | Pipe | 848700 | 1 | Oil dipstick mounted on right side. |
| 56 | Pipe | 862055 | 1 | Oil dipstick mounted on left side. |
| 57 | Oil dipstick | 846872 | 1 | |
| 57 | Oil dipstick | 848696 | 1 | For measuring of oil level when not running., Repl by 863797 |
| 57 | Oil dipstick | 862197 | 1 | Oil dipstick mounted on left side. |
| 57 | Oil dipstick | 863797 | 1 | |
| 58 | O-ring | 925052 | 1 | |
| 58 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 58 | O-ring | 955984 | 1 | MO-13688/XXXXX |
| Item | Part Name | Part No. |
| 26 | Baffle plate 4772181 | 4772181 |
| Details | |
| Engine model | TD71A, TD71AW, TID71A TD71ACE |
| Application | Lubricating System, Standard Model &Early&prod. Lubricating System,40%Z9 |
