Baffle plate 848588

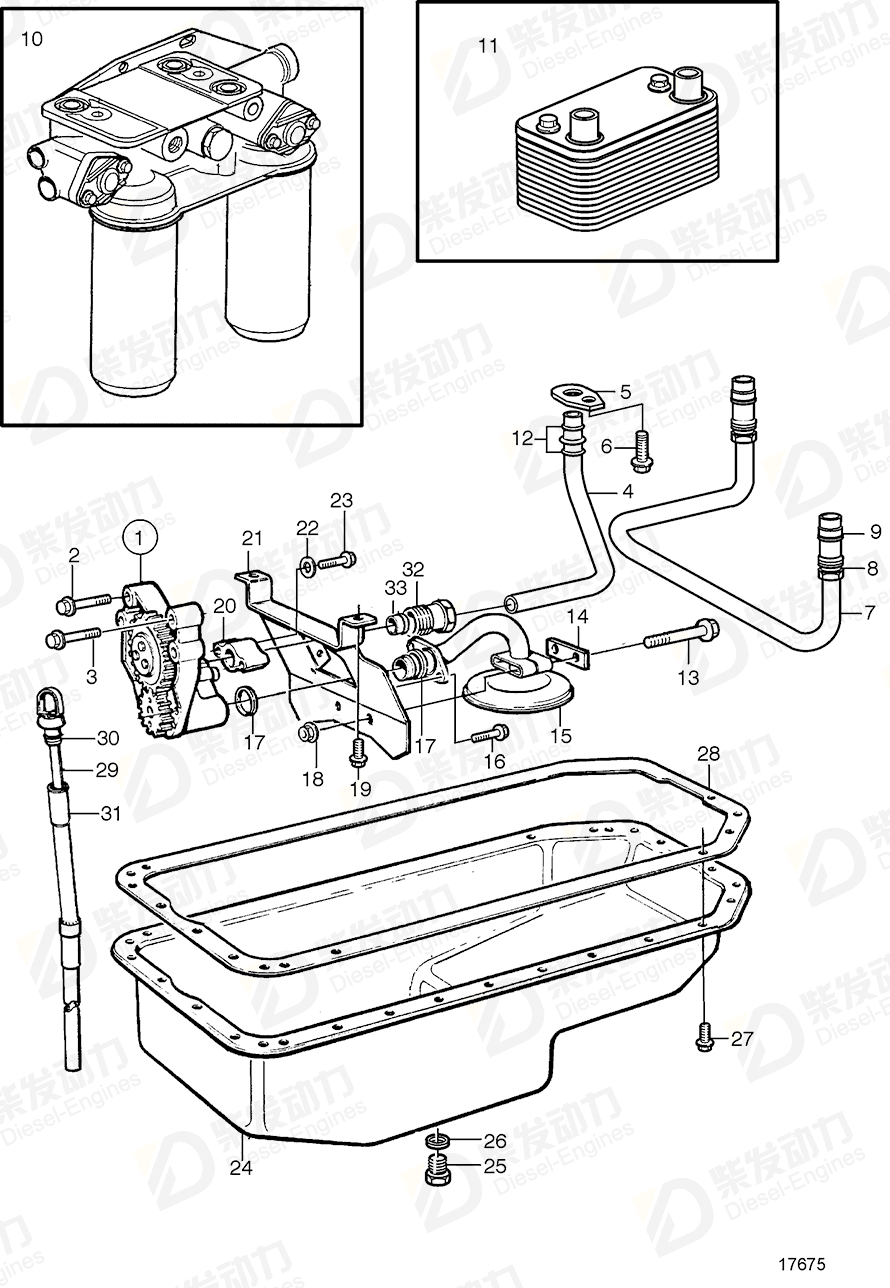

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 864760 | 1 | |
| 2 | Flange nut | 471513 | 4 | |
| 3 | Flange screw | 471734 | 2 | |
| 4 | Oil pressure pipe | 3827022 | 1 | |
| 5 | Clamp | 471746 | 1 | |
| 6 | Flange screw | 946440 | 1 | |
| 7 | Oil pressure pipe | 3827023 | 1 | |
| 8 | Pressure pipe connec | 471595 | 2 | |
| 9 | Ferrule | 956972 | 2 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 12 | Gasket | 471956 | 2 | |
| 13 | Flange screw | 965183 | 2 | |
| 14 | Square washer | 421750 | 1 | |
| 15 | Suction pipe | 848586 | 1 | |
| 16 | Flange screw | 965183 | 2 | |
| 17 | Sealing ring | 470383 | 2 | SN-2120226439 |
| 18 | Flange nut | 945408 | 2 | |
| 19 | Flange screw | 946440 | 2 | |
| 20 | Spacer | 465846 | 1 | |
| 21 | Baffle plate | 848588 | 1 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Flange screw | 968553 | 2 | L=115mm |
| 24 | Sump | 11030522 | 1 | (M24) |
| 25 | Magnetic plug | 949175 | 1 | |
| 26 | Gasket | 18813 | 1 | |
| 27 | Flange screw | 946440 | 36 | |
| 28 | Gasket | 11030779 | 1 | (865342) |
| 29 | Oil dipstick | 862197 | 1 | Oil dipstick mounted on left side. |
| 30 | O-ring | 955984 | 1 | MO-13688/XXXXX |
| 31 | Pipe | 862055 | 1 | Oil dipstick mounted on left side. |
| 32 | Oil feed pipe | 471588 | 1 | |
| 33 | Ferrule | 956972 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| Item | Part Name | Part No. |
| 21 | Baffle plate 848588 | 848588 |
| Details | |
| Engine model | TAD730V TD71A, TD71AW, TID71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE TD71ACE TD730ME, TWD730ME, TWD731ME TWD740VE |
| Application | Lubricating System, Standard Lubricating System, Standard Model Lubricating System, Standard: A Lubricating System, Standard: B Lubricating System,standard Model &Early&prod. |
| Specification | |
| Descriptions | SN-XXXXXXXXXX/30628 |
