Ball 184453

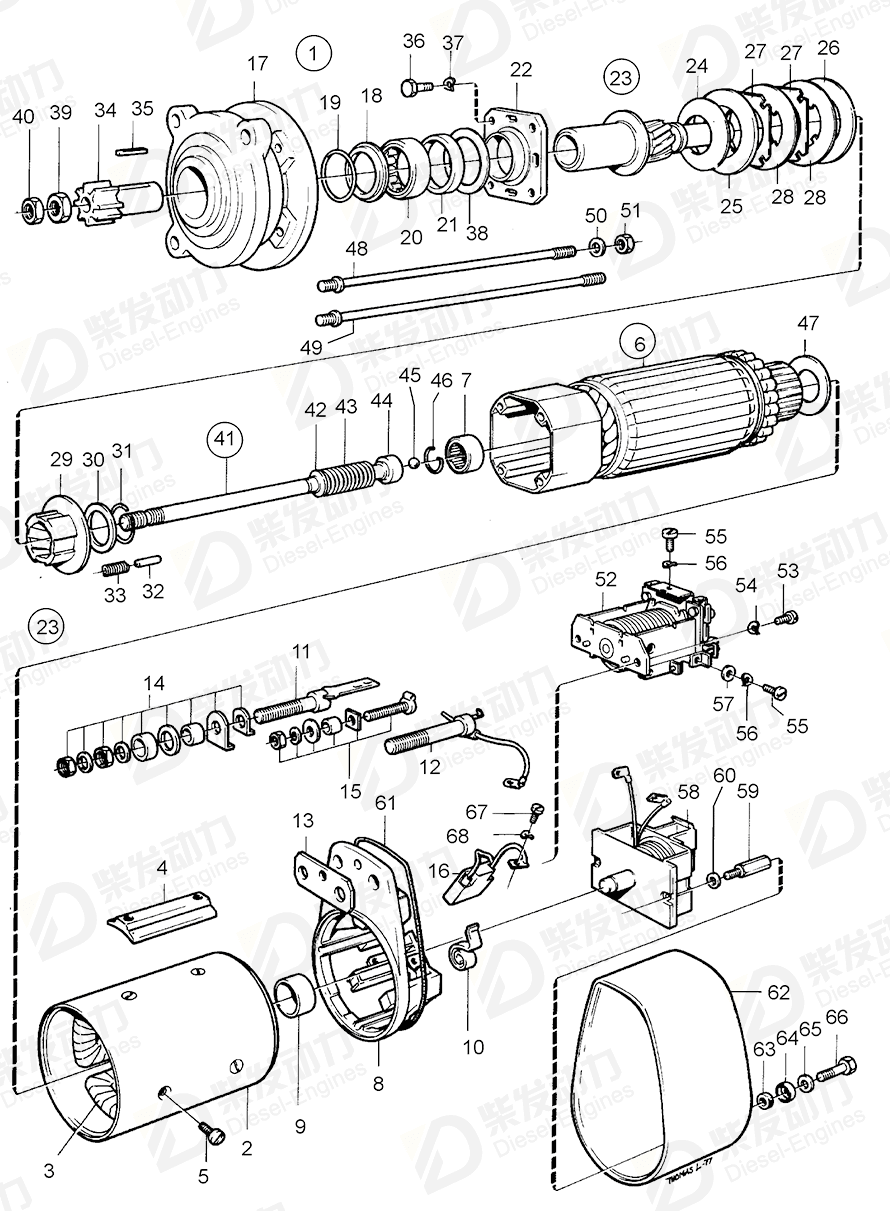

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 843510 | 1 | 24V |
| 4 | Field winding | 6212612 | 1 | (6212705) |
| 5 | Cross recessed screw | 956241 | 8 | |
| 6 | Field winding | 6212612 | 1 | (6212705) |
| 7 | Needle bearing | 243091 | 1 | |
| 8 | Armature bearing | 844408 | 1 | |
| 9 | Bearing bushing | 240481 | 1 | |
| 10 | Brush spring | 240478 | 4 | |
| 11 | Terminal screw | 240479 | 1 | |
| 12 | Electric cable | 240480 | 1 | |
| 13 | Insulating plate | 243175 | 1 | TH=0.3mm |
| 14 | Connecting kit | 241149 | 1 | |
| 15 | Small parts kit | 6643672 | 1 | |
| 16 | Carbon brush set | 6212621 | 1 | (6212707) |
| 17 | Bearing shield | 240449 | 1 | |
| 18 | Sealing ring | 240450 | 1 | |
| 19 | Spring | 240451 | 1 | |
| 20 | Needle bearing | 240453 | 1 | |
| 21 | Bearing bushing | 240455 | 1 | |
| 22 | Bearing shield | 240456 | 1 | |
| 23 | Disc clutch | 244539 | 1 | |
| 24 | Washer | 243782 | 1 | |
| 25 | Disc | 6643674 | 1 | |
| 26 | Adjusting washer | 244365 | 1 | TH = 0.35mm |
| 26 | Adjusting washer | 244366 | 1 | TH = 0.40 mm |
| 26 | Adjusting washer | 244367 | 1 | TH = 0.45mm |
| 26 | Adjusting washer | 244368 | 1 | TH = 0.50mm |
| 26 | Adjusting washer | 244369 | 1 | TH = 0,55mm |
| 26 | Adjusting washer | 244370 | 1 | TH = 0.60mm |
| 26 | Adjusting washer | 244371 | 1 | TH = 0.65mm |
| 27 | Disc | 243780 | 5 | |
| 29 | Clutch half | 243778 | 1 | |
| 30 | Stop ring | 243179 | 1 | Early type |
| 31 | Lock ring | 241908 | 1 | Early type |
| 32 | Pin | 243791 | 4 | |
| 33 | Spring | 243790 | 4 | |
| 34 | Starter pinion | 6643675 | 1 | |
| 35 | Key | 240473 | 1 | |
| 36 | Screw | 848095 | 4 | |
| 37 | Spring washer | 941905 | 4 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 38 | Spacer washer | 240457 | 1 | |
| 39 | Hexagon nut | 955791 | 1 | |
| 40 | Nut | 6643682 | 1 | |
| 41 | Rotor shaft | 6643680 | 1 | |
| 42 | Washer | 844410 | 1 | |
| 43 | Spring | 240470 | 1 | |
| 44 | Washer | 844411 | 1 | |
| 45 | Ball | 184453 | 1 | (844412) |
| 46 | Lock ring | 240471 | 1 | |
| 47 | Shim | 240486 | 1 | TH=0.3mm |
| 47 | Shim | 240487 | 1 | TH=0.5mm |
| 47 | Shim | 241904 | 1 | TH=0.2mm |
| 48 | Bolt | 6643677 | 1 | |
| 49 | Bolt | 6643678 | 3 | |
| 50 | Washer | 955892 | 4 | |
| 51 | Hexagon nut | 955781 | 4 | |
| 52 | Actuator solenoid | 241897 | 1 | |
| 53 | Hexagon screw | 955294 | 2 | |
| 54 | Spring washer | 941907 | 2 | |
| 55 | Screw | 244218 | 6 | |
| 56 | Spring washer | 941905 | 6 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 57 | Washer | 906822 | 3 | |
| 58 | Relay kit | 11991942 | 1 | (844415) |
| 59 | Bolt | 243713 | 2 | |
| 60 | Washer | 6212619 | 2 | (240498) |
| 61 | O-ring | 72225 | 1 | |
| 62 | Protecting casing | 240496 | 1 | |
| 63 | Gasket | 72202 | 2 | |
| 64 | Washer | 72201 | 2 | |
| 65 | Spring washer | 941906 | 2 | |
| 66 | Cross recessed screw | 956094 | 2 | |
| 67 | Screw | 6643679 | 2 | |
| 68 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| Item | Part Name | Part No. |
| 45 | Ball 184453 | 184453 |
| Details | |
| Engine model | DH10A, DH10A 285, DH10A 360, DH10A Rail, THD102KD, THD102KB, THD102K-KB TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD610V, TWD610V, TD630VE, TWD630VE TD71A, TID71A, TWD731VE, TAD730V, TWD740VE TWD710V, TAD730V |
| Application | Starter Starter Motor, Components Starter Motor, Oil Proofed, Components Starter: 4774617 Starter: 843510 |
| Specification | |
| Descriptions | (844412) TH = 0,55mm |
