Ball bearing 181601

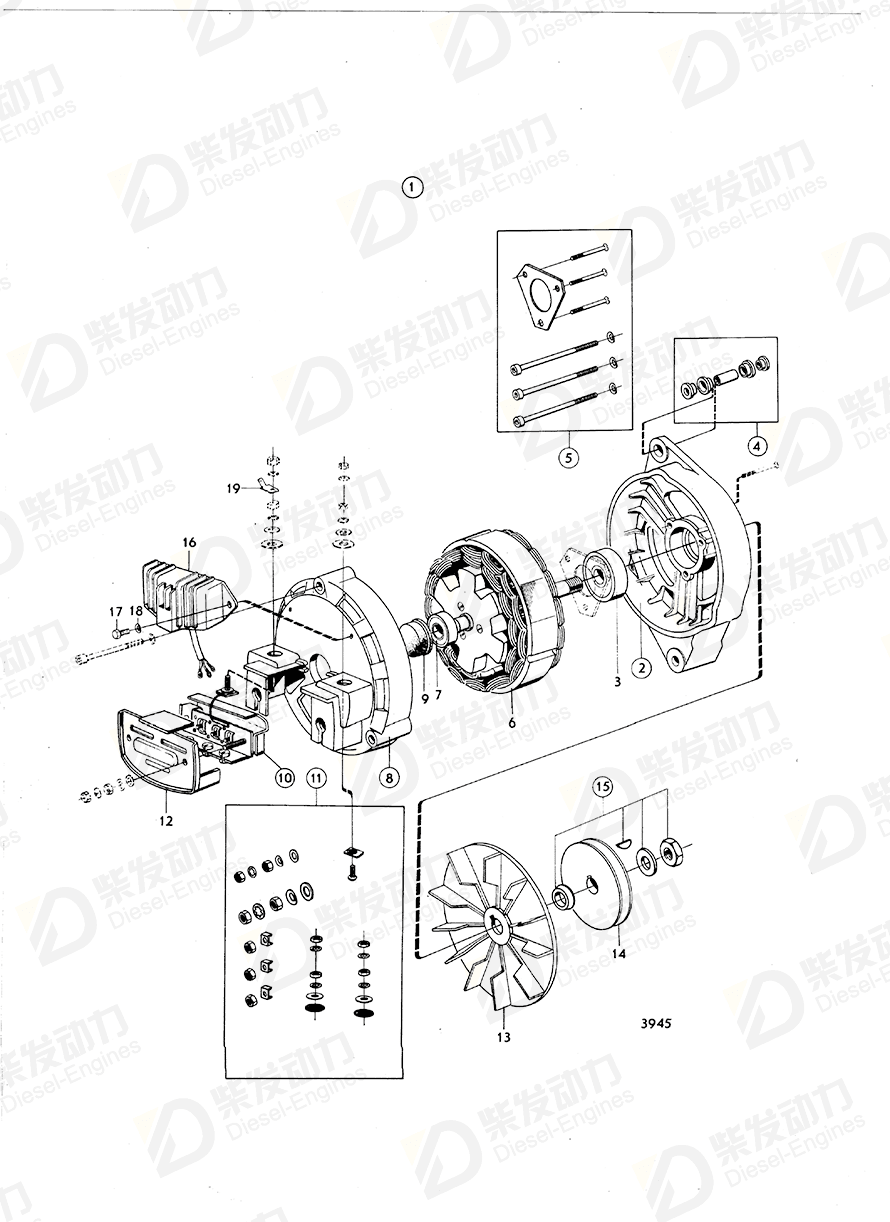

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 841768 | 1 | Replaced by 1pc 841765 alternator, 1pc 841812 pulley, 1pc 845021 tension iron, 1pc 949607 lever, 1pc 955780 plate, 1pc 955781 plate and 1pc 941905 resilient lever., For 12 voltage electric system., 14V 35A |
| 2 | End plate | 831845 | 1 | |
| 3 | Ball bearing | 181601 | 1 | (831853) |
| 4 | Guide | 465033 | 1 | |
| 5 | Screw kit | 6211438 | 1 | (831846) |
| 7 | Ball bearing, rear | 181797 | 1 | |
| 8 | End plate | 831847 | 1 | |
| 9 | Protecting cover | 831848 | 1 | |
| 10 | Diode kit | 841575 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 11 | Screw kit | 831851 | 1 | |
| 12 | Cover | 831854 | 1 | |
| 13 | Fan | 831855 | 1 | |
| 14 | Pulley | 834835 | 1 | |
| 15 | Mounting kit | 831857 | 1 | |
| 16 | Governor | 841688 | 1 | (834611) |
| 17 | Hexagon screw | 955243 | 2 | |
| 18 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 19 | Tab | 829311 | 1 | I.d=5,2mm b=6,35mm |
| Item | Part Name | Part No. |
| 3 | Ball bearing 181601 | 181601 |
| Details | |
| Application | Alternator: 834964 Alternator: 841378 Alternator: 841768 |
| Specification | |
| Descriptions | (831853) |
