Bearing bracket 21901728

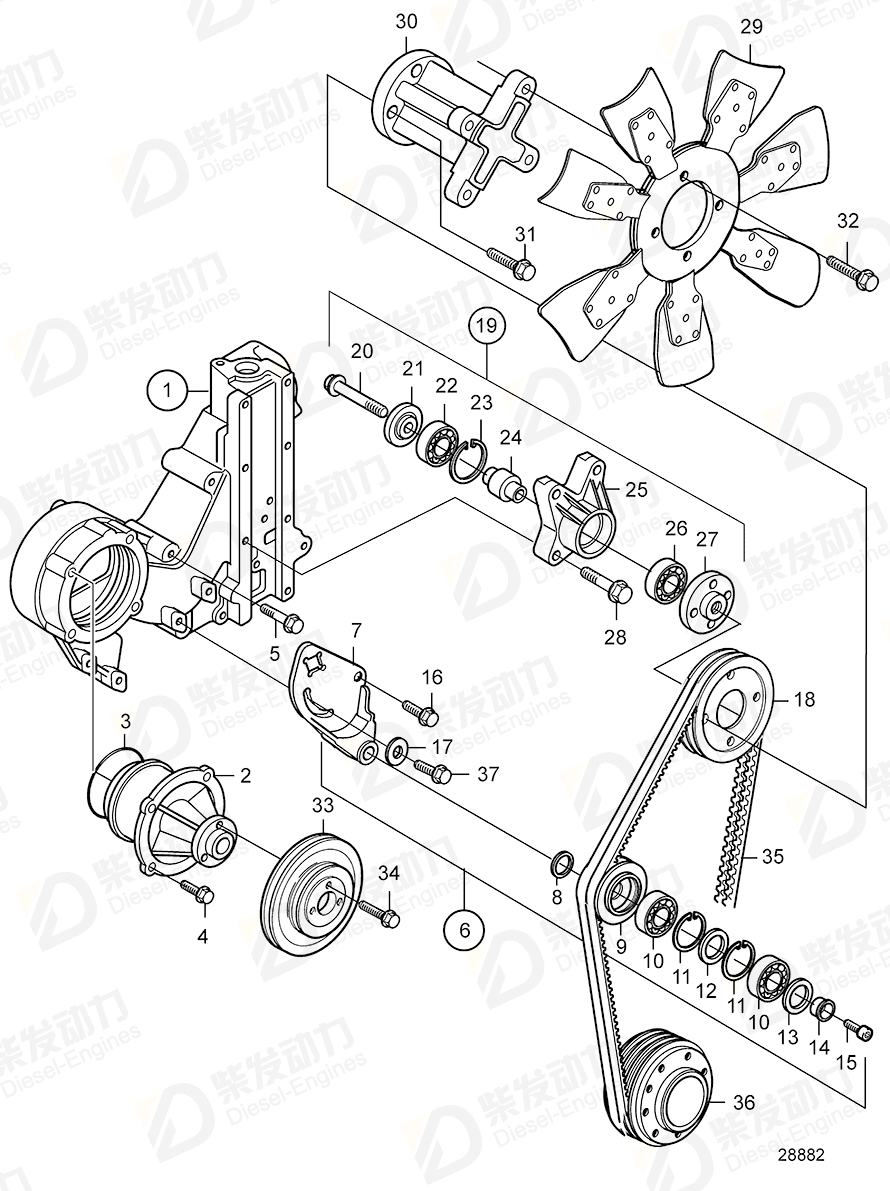

| No. | Part Name | Part Number | Qty | Description |
| 4 | Flange screw | 984734 | 4 | |
| 5 | Flange screw | 984741 | 7 | L=70mm |
| 6 | Belt tensioner | 20450758 | 1 | SN10103092-10467324 |
| 6 | Belt tensioner | 21142055 | 1 | SN10467325-11415146 |
| 6 | Belt tensioner | 22295257 | 1 | SN11415147- |
| 7 | Belt tensioner | 20450764 | 1 | |
| 8 | Ring | 20450762 | 1 | |
| 9 | Pulley | 20450759 | 1 | SN-22001331, Replaced by 22295270 |
| 9 | Pulley | 22295270 | 1 | SN22001332- |
| 10 | Ball bearing | 11012 | 2 | |
| 11 | Retaining ring | 20459025 | 2 | |
| 12 | Spacer sleeve | 20450760 | 1 | |
| 13 | Seal | 20450990 | 1 | |
| 14 | Spacer | 20450761 | 1 | |
| 15 | Hex. socket screw | 20459263 | 1 | |
| 16 | Hexagon screw | 970947 | 2 | M10X25 |
| 17 | Washer | 20460365 | 1 | |
| 18 | Pulley | 20509134 | 1 | |
| 19 | Fan console | 21109801 | 1 | |
| 20 | Hexagon screw | 20450754 | 1 | |
| 21 | Washer | 20999732 | 1 | |
| 22 | Ball bearing | 996518 | 1 | (20450750) |
| 23 | Snap ring | 914529 | 1 | |
| 24 | Hollow shaft | 21901696 | 1 | |
| 25 | Bearing bracket | 21901728 | 1 | |
| 26 | Ball bearing | 996519 | 1 | (20450749) |
| 27 | Fan hub | 21071819 | 1 | |
| 28 | Flange screw | 984755 | 4 | |
| 29 | Fan, pusher type | 20585515 | 1 | Spider/steel, fan blade/aluminium |
| 30 | Adapter | 20405988 | 1 | For Fan 20405918 & 20412426 |
| 31 | Flange screw | 20405504 | 4 | |
| 32 | Flange screw | 20405504 | 4 | |
| 33 | Pulley | 20550293 | 1 | |
| 33 | Pulley | 22298148 | 1 | SN11378555- |
| 34 | Flange screw | 20405792 | 4 | |
| 35 | V-belt, Set | 20585207 | 1 | |
| 35 | V-belt | 20592177 | 1 | L=1200mm |
| 36 | Pulley | 20592794 | 1 | 3-groove |
| 36 | Pulley | 22298162 | 1 | SN11378555- |
| 37 | Flange screw | 20755314 | 1 |
| Item | Part Name | Part No. |
| 25 | Bearing bracket 21901728 | 21901728 |
| Details | |
| Engine model | TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD650VE, TAD660VE TAD721GE, TAD722GE TAD732GE, TAD733GE TAD734GE TAD750VE, TAD760VE |
| Application | Bracket for Fan Bracket for Fan. 210mm Fan Height. Ratio 1:0,8 SN10710119- Bracket for Fan. 210mm Fan Height. Ratio 1:1,26 SN10709633- Bracket for Fan. 210mm Fan Height. Ratio 1:1.0 SN10708165- Bracket for Fan. 220mm Fan Height. Ratio 1:0.9 SN10709643- Bracket for Fan. 220mm Fan Height. Ratio 1:1,0 SN10708333- Bracket for Fan. 220mm Fan Height. Ratio 1:1,2 SN10709632- Bracket for Fan. 234mm Fan Height. Ratio 1:0,8 SN10710119- Bracket for Fan. 234mm Fan Height. Ratio 1:1,0 SN10708165- Bracket for Fan. 234mm Fan Height. Ratio 1:1,26 SN10709632- Bracket for Fan. 290mm Fan Height. Ratio 1:1,0 SN10708333- Bracket for Fan. 290mm Fan Height. Ratio 1:1,2 SN10709632- Bracket for Fan. 292mm Fan Height. Ratio 1:0.8 SN10710119- Bracket for Fan. 292mm Fan Height. Ratio 1:1,0 SN10708165- Bracket for Fan. 292mm Fan Height. Ratio 1:1,26 SN10709632- Bracket for Fan. 360mm Fan Height. Ratio 1:1,0 SN10708333- Bracket for Fan. 360mm Fan Height. Ratio 1:1,2 SN10709632- Bracket for Fan. 398mm Fan Height. Ratio 1:0.8 SN10710119- Bracket for Fan. 398mm Fan Height. Ratio 1:1.0 SN10708165- Bracket for Fan. 398mm Fan Height. Ratio 1:1.26 SN10709632- Fan and Fan Bracket SN10707002- Visco-Clutch Flange 1 On Bracket for Fan SN10707002- Visco-Clutch Flange 2 on Bracket for Fan SN10707002- Visco-Clutch Flange 2 on Bracket for Fan: 20460321 SN10707002- |
| Specification | |
| Descriptions | (20999729) |
