Bearing cap 862417

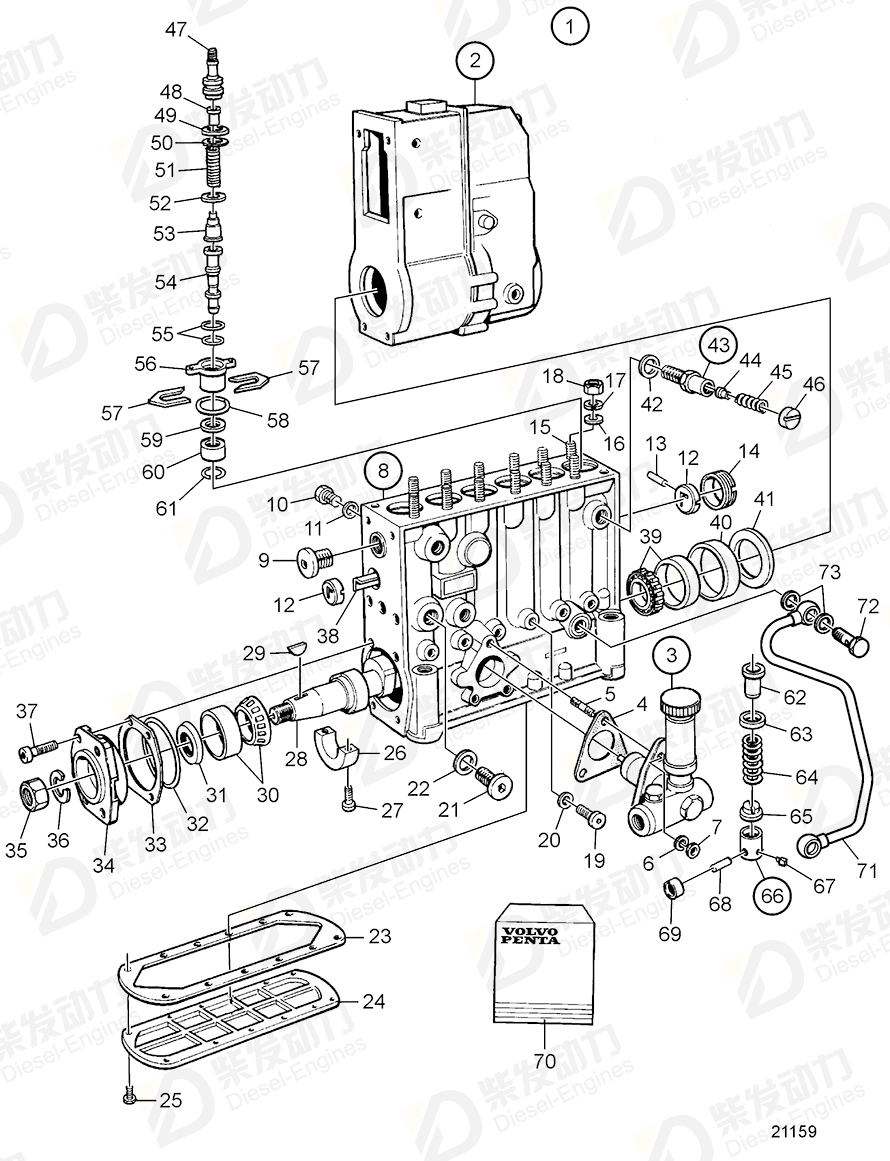

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Injection pump |
3803738 |
1 |
SN2100281912- |
| 2 |
Governor |
3825262 |
1 |
For 865811, 3826087 |
| 3 |
Feed pump |
863474 |
1 |
|
| 4 |
Gasket |
863370 |
1 |
|
| 5 |
Stud |
130673 |
3 |
|
| 6 |
Spring washer |
949607 |
3 |
|
| 7 |
Hexagon nut |
940197 |
3 |
|
| 9 |
Plug |
844988 |
1 |
|
| 10 |
Screw |
847439 |
2 |
|
| 11 |
Sealing ring |
239897 |
2 |
|
| 12 |
Bushing |
240014 |
2 |
|
| 13 |
Spring pin |
244008 |
1 |
(131015) |
| 14 |
Washer |
244699 |
1 |
(240015) |
| 17 |
Washer |
862404 |
12 |
|
| 21 |
Sealing plug |
243263 |
1 |
|
| 22 |
Gasket |
240017 |
1 |
Spec.867473 alt |
| 23 |
Gasket |
1699581 |
1 |
|
| 24 |
Cover |
240947 |
1 |
|
| 25 |
Screw |
244732 |
12 |
|
| 26 |
Bearing cap |
862417 |
1 |
|
| 29 |
Key |
35168 |
1 |
|
| 32 |
O-ring |
862423 |
1 |
Included in small parts kit. |
| 37 |
Screw |
862415 |
4 |
|
| 38 |
Control rod |
241746 |
1 |
|
| 39 |
Bearing |
863833 |
1 |
|
| 40 |
Lock ring |
48602 |
1 |
|
| 42 |
Sealing ring |
239897 |
1 |
|
| 43 |
Overflow valve |
11996309 |
1 |
|
| 47 |
Delivery valve retai |
1699452 |
6 |
|
| 48 |
Peg |
1699453 |
6 |
|
| 49 |
O-ring |
862400 |
6 |
Included in small parts kit. |
| 51 |
Compression spring |
1699454 |
6 |
|
| 53 |
Delivery valve |
1699455 |
6 |
|
| 54 |
Pump element |
3097195 |
6 |
|
| 55 |
O-ring |
240422 |
12 |
|
| 57 |
Shim |
244381 |
1 |
TH=1,50mm |
| 57 |
Shim |
244382 |
1 |
TH=1,60mm |
| 57 |
Shim |
244383 |
1 |
TH=1,70mm |
| 57 |
Shim |
244384 |
1 |
TH=1,80mm |
| 57 |
Shim |
244385 |
1 |
TH=1,90mm |
| 57 |
Shim |
244386 |
1 |
TH=2,00mm |
| 57 |
Shim |
244634 |
1 |
TH=1,3mm |
| 57 |
Shim |
244635 |
1 |
TH=1,4mm |
| 57 |
Adjusting washer |
844990 |
1 |
TH=0.40mm |
| 57 |
Adjusting washer |
844991 |
1 |
TH=0.50mm |
| 57 |
Adjusting washer |
844992 |
1 |
TH=0.70mm |
| 57 |
Adjusting washer |
844993 |
1 |
TH=0.80mm |
| 57 |
Adjusting washer |
844994 |
1 |
TH=1.00mm |
| 57 |
Adjusting washer |
844995 |
1 |
TH=1.10mm |
| 57 |
Adjusting washer |
844996 |
1 |
TH=1,30mm |
| 57 |
Adjusting plate |
847433 |
1 |
TH=2,1mm |
| 58 |
O-ring |
862402 |
6 |
Included in small parts kit. |
| 62 |
Control sleeve |
862406 |
6 |
|
| 63 |
Spring disc |
239984 |
6 |
|
| 65 |
Spring disc |
862408 |
6 |
|
| 68 |
Diaphragm |
240799 |
6 |
|
| 71 |
Oil return pipe |
3826088 |
1 |
SN2100281912- |
| 72 |
Hollow screw |
25167 |
1 |
|
| 73 |
Gasket |
969011 |
2 |
|
| Item |
Part Name |
Part No. |
| 26 |
Bearing cap 862417 |
862417 |
| Details |
| Application |
Fuel Injection Pump, Components: 3803738 |
