Bearing housing 477554

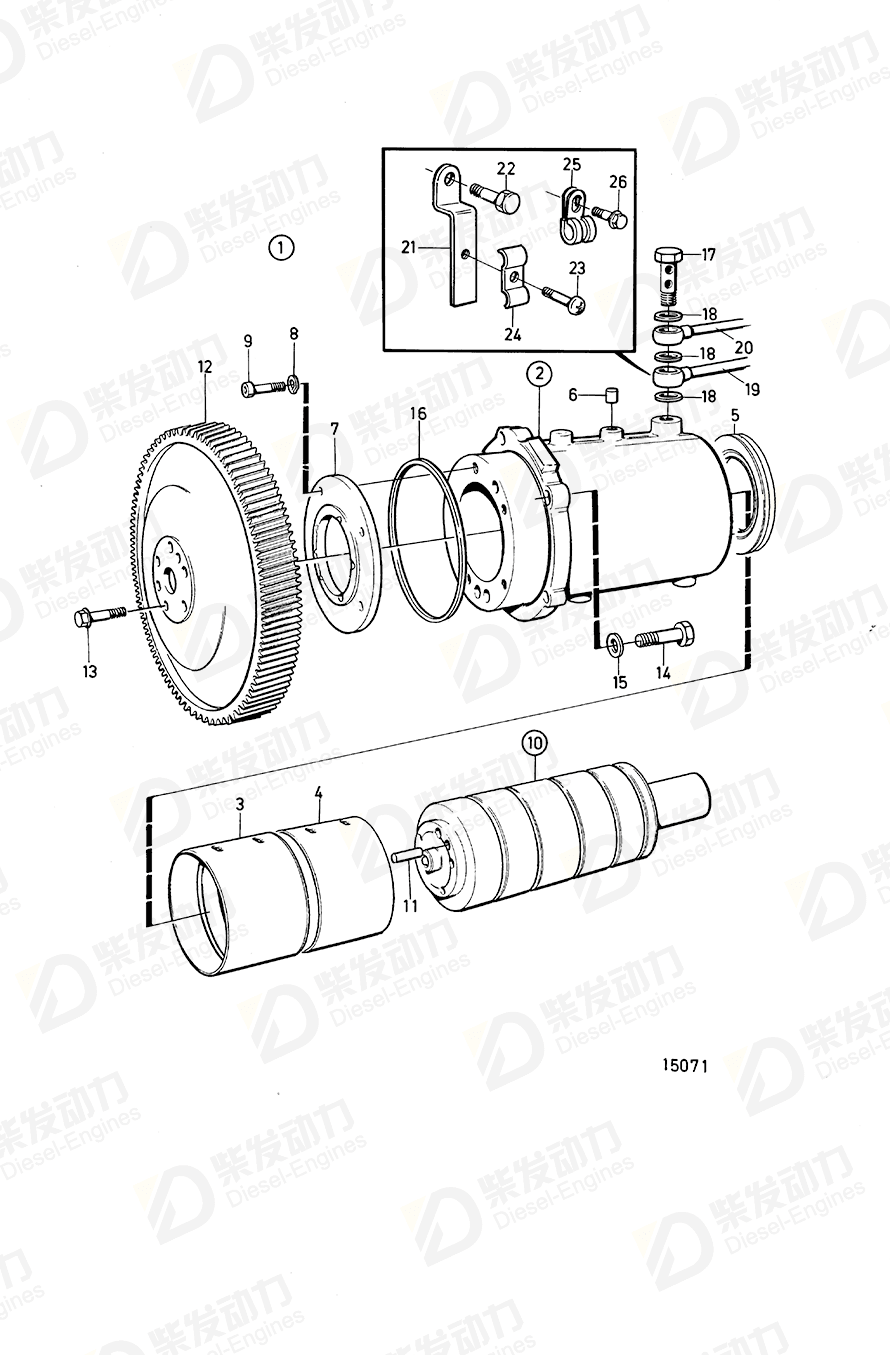

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection timing dev | 1638094 | 1 | Repl. by fuel inject.tim.swit 1638136 and gear (with hole for a guide pin) 479985., SN-XXXXXXXXXX/259067 |
| 1 | Injection timing dev | 1638136 | 1 | SNXXXXXXXXXX/259068- |
| 2 | Bearing housing | 477554 | 1 | |
| 3 | Bushing | 477551 | 1 | |
| 4 | Bushing | 477552 | 1 | |
| 5 | Sealing ring | 1546221 | 1 | |
| 6 | Plug | 955075 | 5 | |
| 7 | Thrust washer | 477409 | 1 | |
| 8 | Spring washer | 941906 | 5 | |
| 9 | Hex. socket screw | 942314 | 5 | |
| 10 | Injection timing dev | 1638137 | 1 | |
| 11 | Pin | 950545 | 1 | |
| 12 | Gear, nitrocarburized | 477535 | 1 | SN-XXXXXXXXXX/259067 |
| 12 | Gear | 479985 | 1 | |
| 13 | Flange screw | 975199 | 6 | |
| 14 | Hexagon screw | 940159 | 5 | |
| 15 | Spring washer | 941907 | 5 | |
| 16 | Sealing ring | 423123 | 1 | |
| 17 | Hollow screw | 947975 | 1 | |
| 18 | Gasket | 11994 | 3 | |
| 19 | Pipe, cylinder block | 479787 | 1 | |
| 20 | Oil pressure pipe, fuel inj. pump | 865765 | 1 | |
| 21 | Bracket | 465584 | 1 | |
| 22 | Hexagon screw | 940100 | 1 | |
| 23 | Cross recessed screw | 950045 | 1 | |
| 24 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 25 | Clamp | 952624 | 1 | |
| 26 | Flange screw | 942402 | 1 |
| Item | Part Name | Part No. |
| 2 | Bearing housing 477554 | 477554 |
| Details | |
| Engine model | TWD1030ME TWD630ME TWD630VE TWD730ME |
| Application | Fuel Injection Timing Device Fuel Injection Timing Device: A Fuel Injection Timing Device: B |
