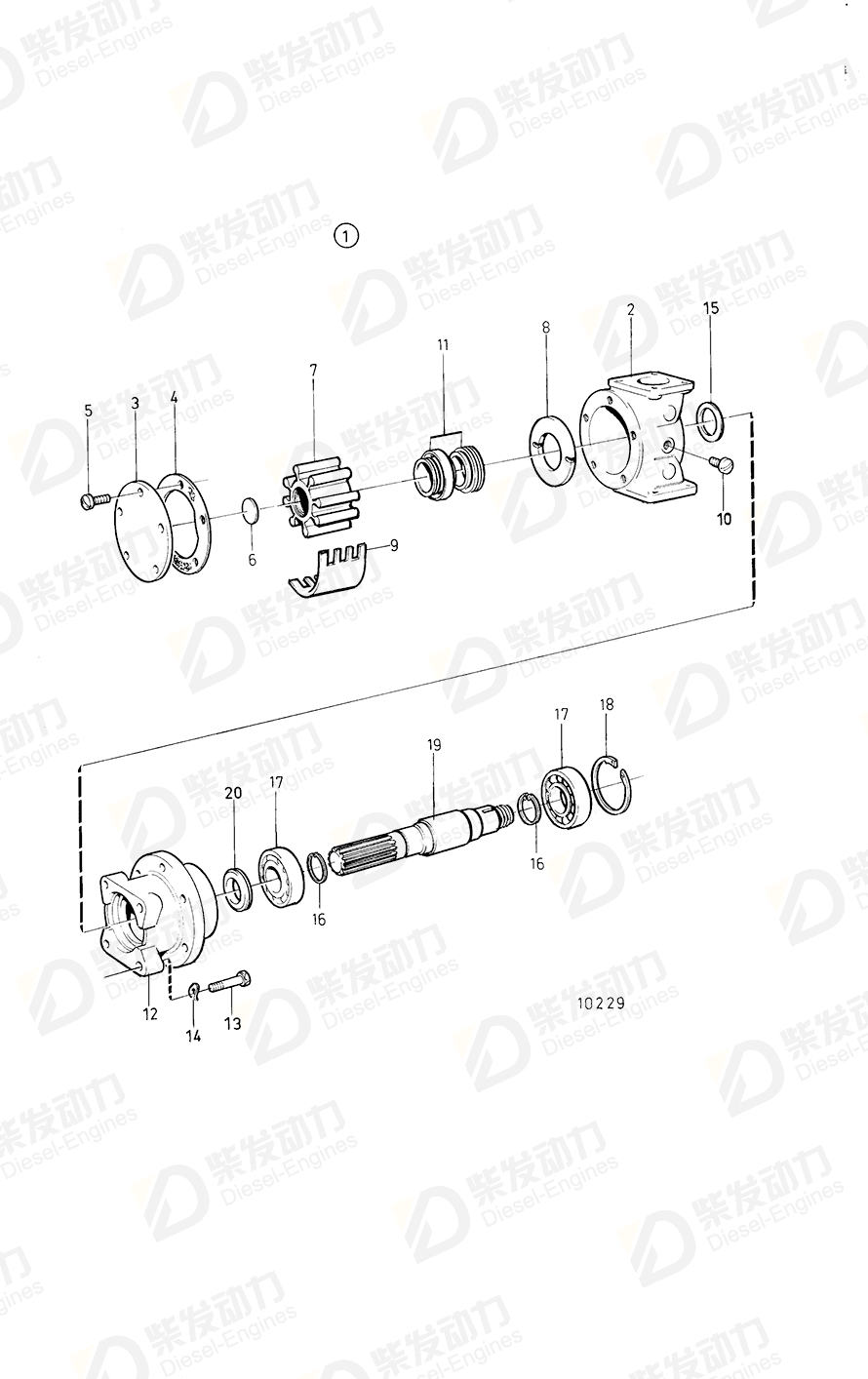

Bearing housing 845969
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Sea water pump |
846354 |
1 |
|
| 3 |
Cover |
847228 |
1 |
|
| 4 |
Gasket |
825728 |
1 |
|
| 5 |
Screw |
847229 |
5 |
|
| 6 |
Splined gasket |
812966 |
1 |
|
| 8 |
Wear washer |
812959 |
1 |
|
| 9 |
Cam |
827013 |
1 |
|
| 10 |
Screw |
825730 |
1 |
|
| 11 |
Sealing ring |
812968 |
1 |
|
| 12 |
Bearing housing |
845969 |
1 |
|
| 13 |
Hexagon screw |
940135 |
4 |
|
| 14 |
Spring washer |
941907 |
4 |
|
| 15 |
Deflector ring |
812964 |
1 |
|
| 16 |
Lock ring |
847230 |
2 |
Included in repair kit |
| 17 |
Ball bearing |
11013 |
2 |
|
| 18 |
Lock ring |
825735 |
1 |
|
| 19 |
Pump shaft |
825978 |
1 |
|
| 20 |
Sealing ring |
845795 |
1 |
|
| 20 |
Impeller kit |
875736 |
1 |
See group 10A |
| 20 |
Overhaul kit |
875737 |
1 |
See group 10A |
| Item |
Part Name |
Part No. |
| 12 |
Bearing housing 845969 |
845969 |
| Details |
| Application |
Sea Water Pump |
