Bearing spindle 838997

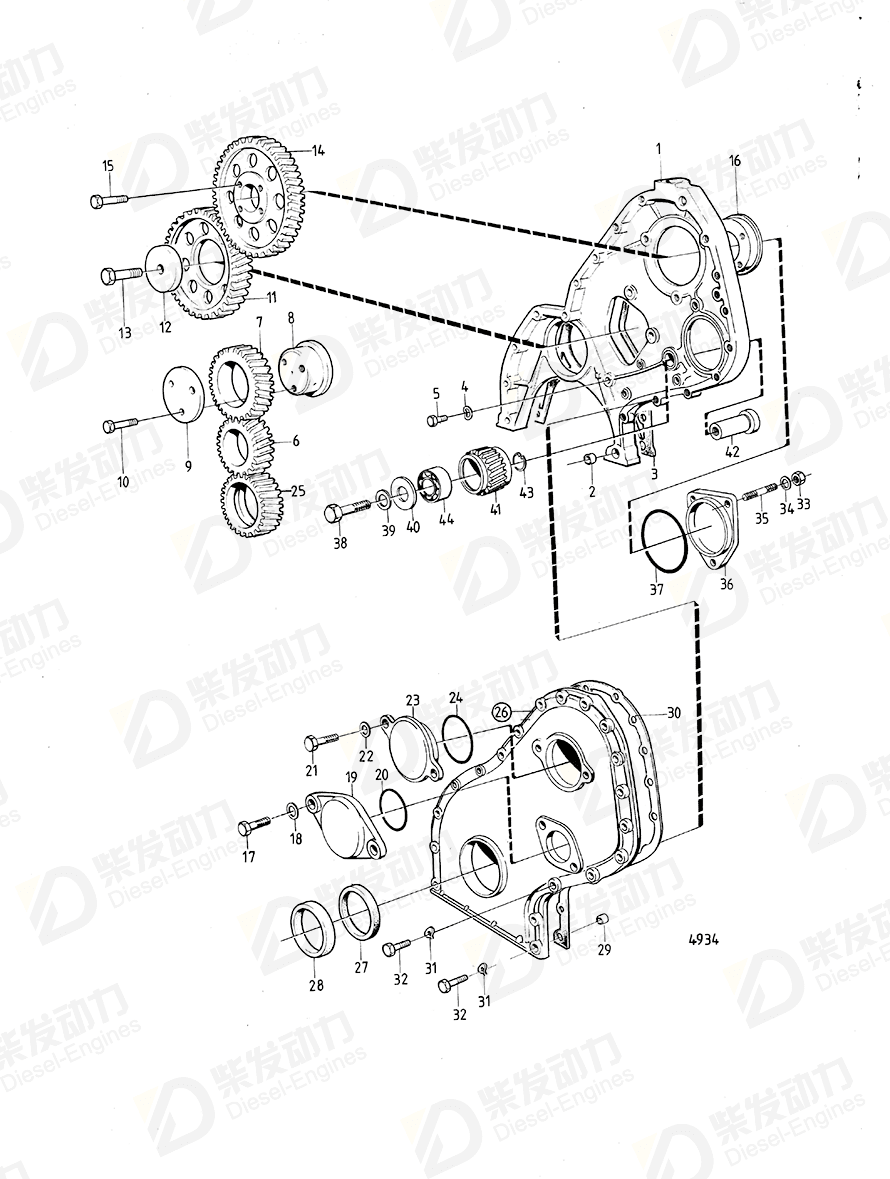

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 1542310 | 1 | |
| 2 | Guide sleeve | 415311 | 1 | |
| 3 | Gasket | 859039 | 1 | (1542219) |
| 4 | Spring washer | 941907 | 4 | |
| 5 | Hexagon screw | 940142 | 2 | ÅKERMAN. |
| 5 | Hexagon screw | 955295 | 3 | |
| 6 | Gear | 1542305 | 1 | |
| 7 | Gear | 1542061 | 1 | |
| 8 | Bearing spindle | 838997 | 1 | (1542064) |
| 9 | Thrust washer | 1542065 | 1 | |
| 10 | Flange screw | 965180 | 3 | |
| 11 | Gear | 1542034 | 1 | |
| 12 | Washer | 1542223 | 1 | |
| 13 | Hexagon screw | 970977 | 1 | (955347) |
| 14 | Gear | 1544149 | 1 | See group 2C |
| 15 | Flange screw | 946671 | 4 | |
| 16 | Hub | 1542171 | 1 | See group 2C |
| 17 | Hexagon screw | 955318 | 2 | |
| 18 | Spring washer | 941908 | 2 | |
| 19 | Cover | 1542373 | 1 | |
| 20 | O-ring | 925091 | 1 | |
| 21 | Hexagon screw | 955285 | 2 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Cover | 1542242 | 1 | |
| 24 | O-ring | 968971 | 1 | |
| 25 | Oil pump wheel | 1542215 | 1 | |
| 26 | Cover | 1542311 | 1 | |
| 27 | Sealing ring | 1542318 | 1 | |
| 28 | Sealing ring | 948042 | 1 | |
| 29 | Guide sleeve | 415311 | 2 | |
| 30 | Gasket | 424890 | 1 | |
| 31 | Spring washer | 941907 | 19 | |
| 32 | Hexagon screw | 940132 | 11 | |
| 32 | Hexagon screw | 955304 | 5 | |
| 32 | Hexagon screw | 955306 | 1 | |
| 32 | Hexagon screw | 955307 | 3 | L=100mm |
| 33 | Hexagon nut | 955783 | 3 | |
| 34 | Spring washer | 941908 | 3 | |
| 35 | Stud | 924075 | 3 | |
| 36 | Cover | 1542307 | 1 | |
| 37 | O-ring | 925258 | 1 | |
| 38 | Hexagon screw | 940142 | 1 | ÅKERMAN. |
| 39 | Spring washer | 941907 | 1 | |
| 40 | Washer | 1542314 | 1 | |
| 41 | Gear | 1542308 | 1 | |
| 42 | Shaft | 1542375 | 1 | |
| 43 | Retaining ring | 914526 | 2 | |
| 44 | Ball bearing | 181464 | 1 |
| Item | Part Name | Part No. |
| 8 | Bearing spindle 838997 | 838997 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Timing Gear Casing and Gears |
| Specification | |
| Descriptions | (1542064) |
