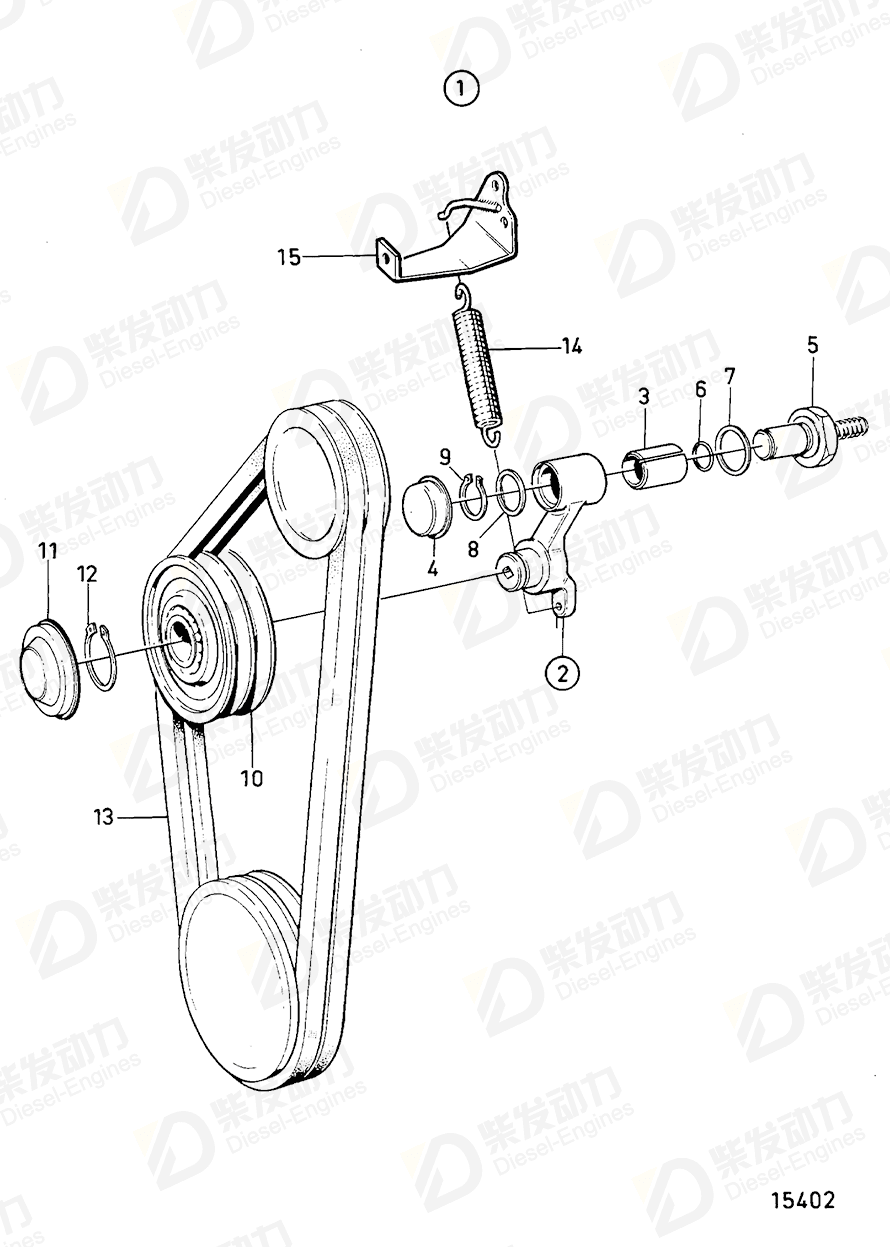

Belt tensioner 847892
| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt tensioner | 847892 | 1 | |
| 1 | Belt tensioner | 1664689 | 1 | |
| 2 | Lever | 1664691 | 1 | |
| 3 | Bearing bushing | 946176 | 2 | |
| 4 | Protecting casing | 1664696 | 1 | |
| 5 | Pivot pin | 1664695 | 1 | |
| 6 | O-ring | 942089 | 1 | Replaced by 1pc 382913 cable and 1pc 267345 lever. |
| 7 | Back-up ring | 962548 | 1 | |
| 8 | Shim | 941831 | 1 | |
| 9 | Snap ring | 951077 | 1 | |
| 10 | Pulley | 1661878 | 1 | |
| 11 | Body | 471430 | 1 | |
| 12 | Retaining ring | 914462 | 1 | |
| 13 | V-belt | 978777 | 1 | |
| 14 | Spring | 1676307 | 1 | |
| 15 | Bracket | 1665674 | 1 | SN-XXXXXXXXXX/281207 |
| 15 | Retainer | 8152212 | 1 | SNXXXXXXXXXX/281208- |
| Item | Part Name | Part No. |
| 1 | Belt tensioner 847892 | 847892 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1230G, TAD1232GE TAD1230P TAD1230V TD100G-87 TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD1210G, TWD1210G, TWD1211G TD121G-87, TD121GG-87, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TWD1230VE, TWD1231VE TD121GP-87, TWD1210P, TWD1211P TID121FG |
| Application | Belt Tensioner Device Belt Tensioner Device, Early Design Belt Tensioner Device, Early Design: A Belt Tensioner Device, Early Design: B Belt Transmission and Automatic Belt Tensioner Belt Transmission and Belt Tensioner Device: A Belt Transmission and Belt Tensioner Device: B |
| Specification | |
| Descriptions | Belt tensioner complete Complete For TAD1230G and TAD1232GE. for other repl by 1 pc belt tensioner 1664689, 1 pc retainer 8152212 and 2 pc screw 955526. |
