Box 3198058

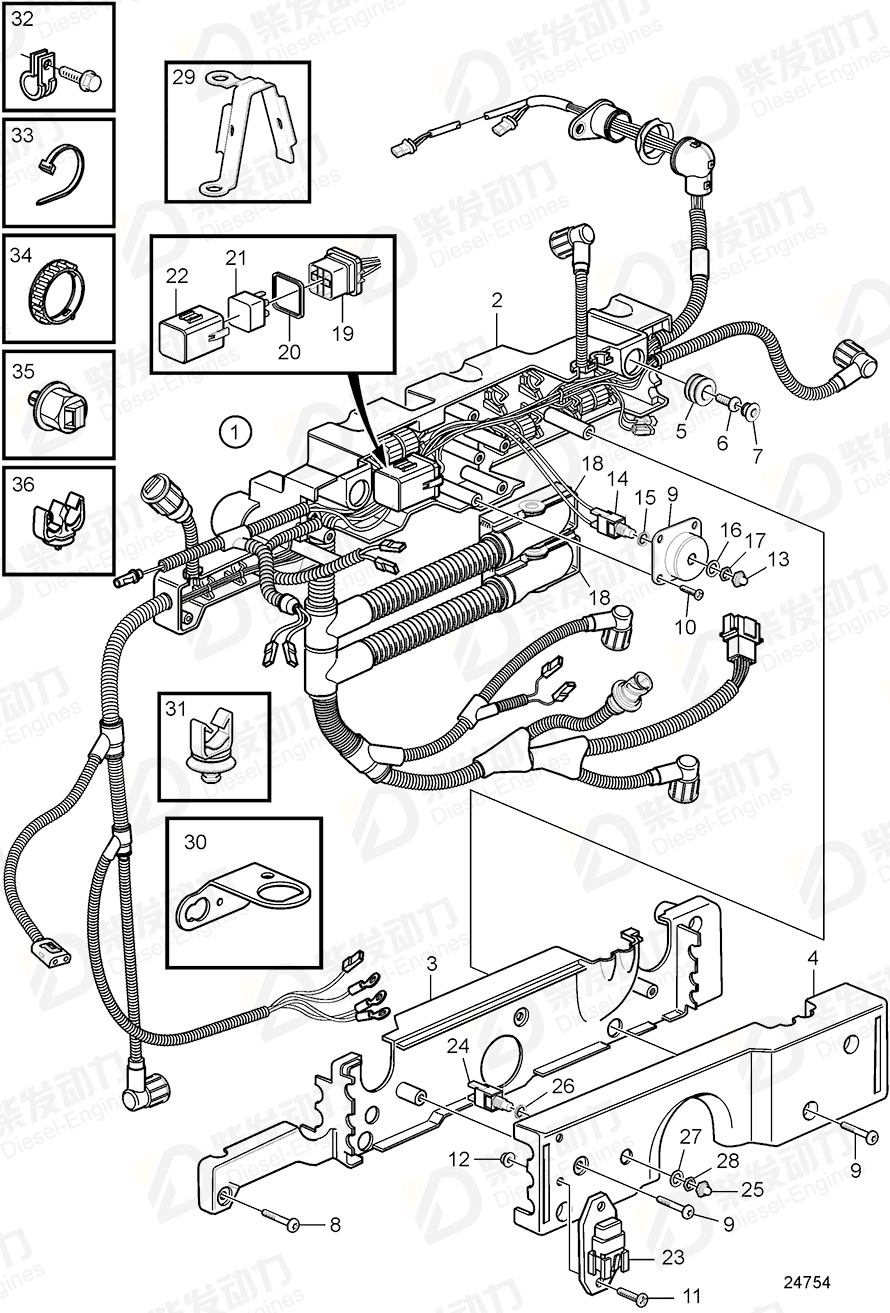

| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness modul | 3887151 | 1 | SN-7009159769, See the part number on the existing cable |
| 1 | Wiring harness modul | 21144332 | 1 | SN7009159770-, See the part number on the existing cable |
| 1 | Wiring harness modul | 21220526 | 1 | SN7009169491-, See the part number on the existing cable |
| 2 | Box | 3198058 | 1 | |
| 3 | Extension part | 3198059 | 1 | |
| 4 | Cap | 881926 | 1 | |
| 5 | Rubber cushion | 1079687 | 4 | |
| 6 | Six point socket scr | 969598 | 4 | |
| 7 | Plug | 1079677 | 4 | |
| 8 | Six point socket scr | 3985652 | 4 | |
| 9 | Cap | 3838949 | 1 | |
| 10 | Six point socket scr | 969407 | 4 | |
| 11 | Six point socket scr | 969405 | 2 | (955244) |
| 12 | Flange lock nut | 949874 | 2 | |
| 13 | Nut | 828586 | 1 | |
| 14 | Breaker | 873959 | 1 | Stop |
| 19 | Relay socket | 3587172 | 1 | |
| 21 | Relay | 3171420 | 1 | |
| 22 | Relay box | 3587173 | 1 | Replaced by 21494263 |
| 24 | Toggle switch | 828584 | 1 | |
| 25 | Nut | 828586 | 1 | |
| 29 | Bracket | 20393627 | 1 | |
| 30 | Bracket | 3988328 | 1 | |
| 31 | Retainer | 20440939 | 3 | |
| 32 | Clamp | 945081 | 1 | |
| 32 | Clamp | 947827 | 1 | 25,4mm |
| 32 | Clamp | 949997 | 2 | |
| 33 | Cable tie | 948211 | 1 | |
| 34 | Ring | 3963413 | 1 | |
| 35 | Retainer | 8131393 | 1 | For cable to unit injectors. |
| 36 | Retainer | 20440940 | 1 |
| Item | Part Name | Part No. |
| 2 | Box 3198058 | 3198058 |
| Details | |
| Engine model | TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD950VE, TAD951VE, TAD952VE |
| Application | Electrical System |
