Brace 849110

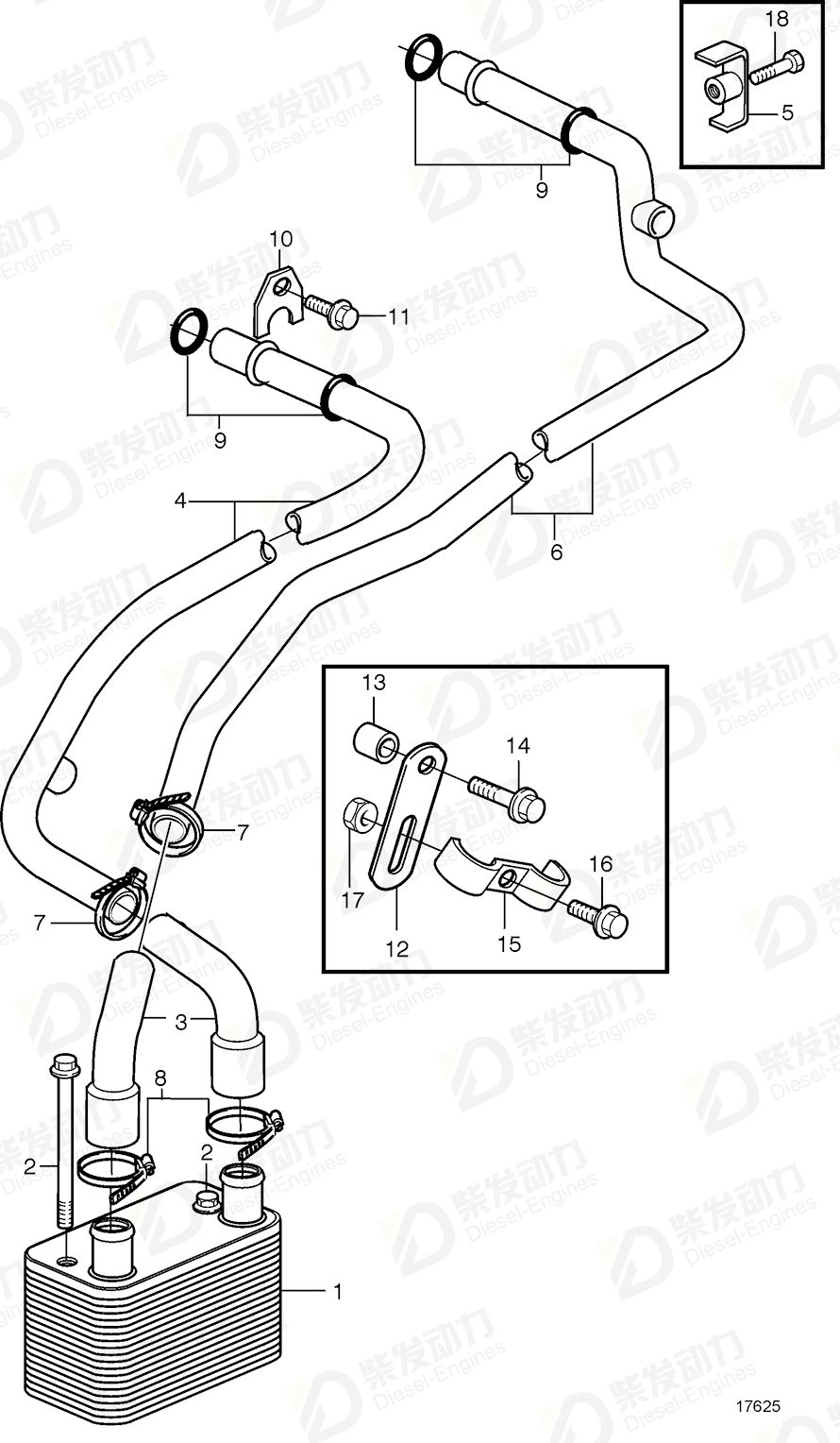

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 8192444 | 1 | |
| 2 | Flange screw | 965190 | 2 | |
| 3 | Hose | 1664386 | 2 | |
| 4 | Tube | 3830180 | 1 | |
| 5 | Attaching clamp | 849059 | 1 | |
| 6 | Tube | 3830179 | 1 | |
| 7 | Hose clamp | 943473 | 2 | |
| 8 | Hose clamp | 994560 | 2 | |
| 9 | Rubber moulding | 471626 | 4 | |
| 10 | Brace | 849110 | 1 | |
| 11 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 12 | Bracket | 965537 | 1 | |
| 13 | Spacer sleeve | 843075 | 1 | |
| 14 | Flange screw | 945444 | 1 | |
| 15 | Clamp | 942421 | 1 | |
| 16 | Flange screw | 945414 | 1 | |
| 17 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 18 | Flange screw | 965194 | 1 |
| Item | Part Name | Part No. |
| 10 | Brace 849110 | 849110 |
| Details | |
| Engine model | TD610M TD610V TD61A, TD61AW TD61AG TD630ME TD630VE TD710G TD71A, TD71AW TD71A, TD730VE, TAD730V TD730ME TID61AG TID71A, TWD710V, TWD731VE TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD710P, TAD730P TWD730ME TWD731ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Air Compressor &TUFLO 500 and Installation Components Air Compressor 15,5 and Install. Components. &Early &Prod Air Compressor 15.5 W31 Air Compressor 15.5W31 and Installation Components Oil Cooler Thermostat and Water Pump with Installation Components Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C |
| Specification | |
| Descriptions | Early type SN XXXXXXXXXX/43621- |
