Bracket 15030907

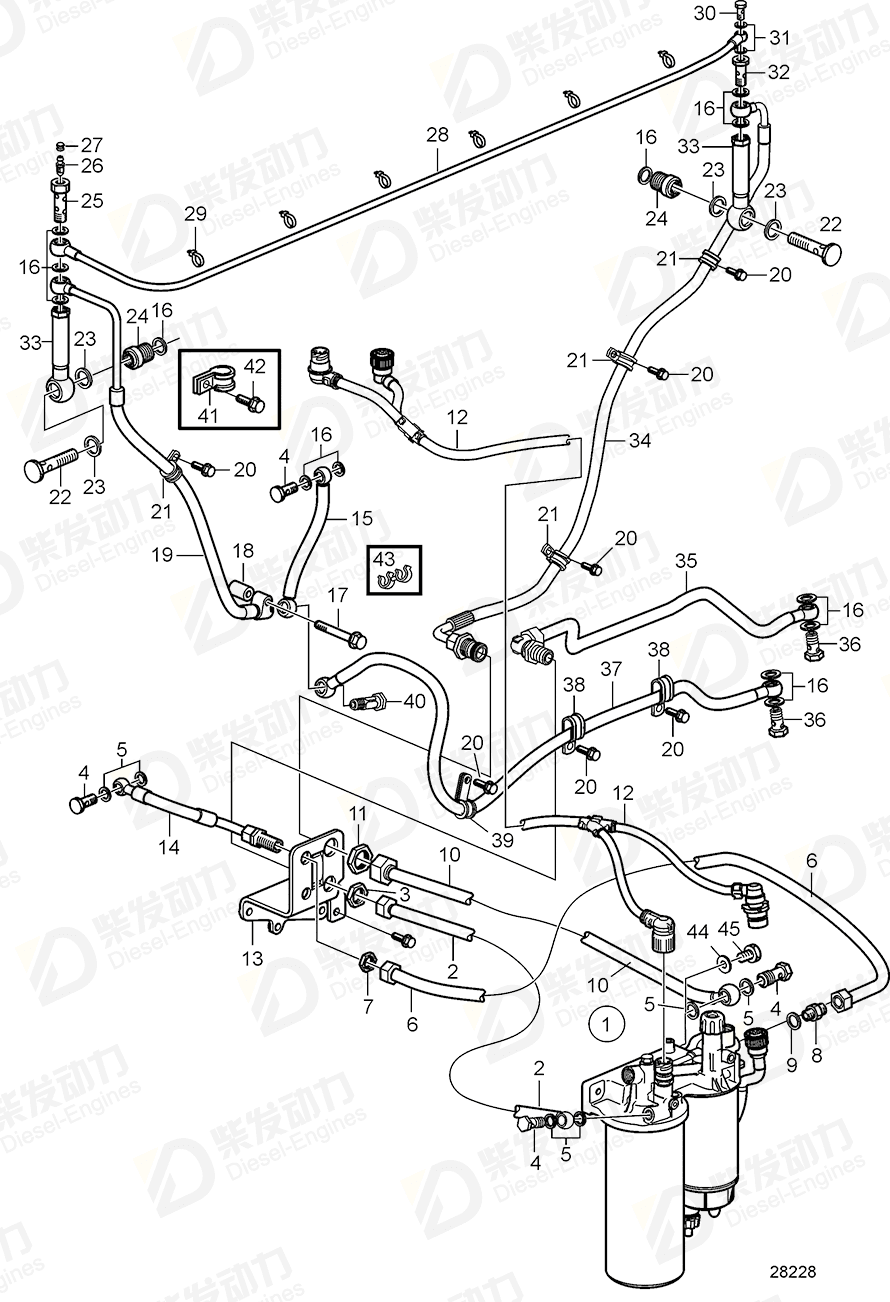

| No. | Part Name | Part Number | Qty | Description |
| 2 | Fuel hose | 21417371 | 1 | |
| 3 | Hexagon nut | 957020 | 1 | |
| 4 | Hollow screw | 991048 | 10 | |
| 5 | Sealing ring | 20852764 | 4 | |
| 6 | Fuel hose | 21417375 | 1 | |
| 7 | Hollow screw | 968126 | 1 | |
| 8 | Hexagon nut | 957021 | 1 | |
| 9 | Nipple | 946602 | 1 | |
| 10 | Gasket | 969011 | 1 | |
| 11 | Hexagon nut | 957019 | 1 | |
| 12 | Wiring harness | 21472660 | 1 | |
| 13 | Bracket | 15030907 | 1 | |
| 14 | Fuel hose | 21508585 | 1 | Replaced by 23112305 |
| 14 | Fuel hose | 23112305 | 1 | |
| 15 | Fuel hose | 21284489 | 1 | |
| 16 | Sealing ring | 20852765 | 12 | |
| 17 | Flange screw | 984741 | 1 | L=70mm |
| 18 | Spacer sleeve | 823494 | 1 | For Fan guard 22389861 |
| 19 | Fuel hose | 21187595 | 1 | SN-2016111523 |
| 19 | Fuel hose | 22366851 | 1 | SN-2016111523 |
| 20 | Fuel hose | 78490149 | 1 | SN2016111524- |
| 21 | Clamp | 949747 | 2 | |
| 22 | Flange screw | 984733 | 2 | |
| 23 | Bracket | 78490145 | 1 | SN2016111524- |
| 24 | Overflow valve | 21140647 | 1 | |
| 25 | Sealing ring | 20883435 | 4 | |
| 26 | Flange screw | 984738 | 1 | |
| 27 | Fuel hose | 78490150 | 1 | SN2016111524- |
| 28 | Hollow screw | 190714 | 1 | |
| 29 | Flange screw | 984733 | 7 | |
| 30 | Clamp | 949747 | 4 | |
| 31 | Hollow screw | 21184847 | 2 | |
| 32 | Sealing ring | 20899253 | 2 | |
| 33 | Spacer tube | 21686595 | 2 | |
| 34 | Hollow screw | 3595373 | 1 | |
| 35 | Faucet | 20548012 | 1 | |
| 36 | Protecting cover | 20547976 | 1 | |
| 37 | Fuel hose | 21452472 | 1 | |
| 38 | Cable tie | 948211 | 6 | |
| 39 | Hollow screw | 48634 | 1 | |
| 40 | Sealing ring | 20852762 | 2 | |
| 41 | Hollow screw | 21159427 | 1 | |
| 42 | Rising pipe | 21775773 | 2 | If change of riser must also clamp, hollow screw, spacer tube, retainer and gaskets be changed |
| 43 | Fuel hose | 21380682 | 1 | |
| 44 | Fuel hose | 21508598 | 1 | |
| 45 | Hollow screw | 991046 | 2 | |
| 46 | Fuel hose | 21284484 | 1 | |
| 47 | Clamp | 981664 | 2 | |
| 48 | Clamp | 974582 | 1 | |
| 49 | Overflow valve | 21014054 | 1 | |
| 50 | Clamp | 982258 | 1 | |
| 51 | Flange screw | 984735 | 1 | |
| 52 | Retainer | 9205207 | 1 | |
| 53 | Gasket | 11998 | 1 | |
| 54 | Plug | 960632 | 1 |
| Item | Part Name | Part No. |
| 13 | Bracket 15030907 | 15030907 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Fuel System, Alternative Mounting |
