Bracket 20459260

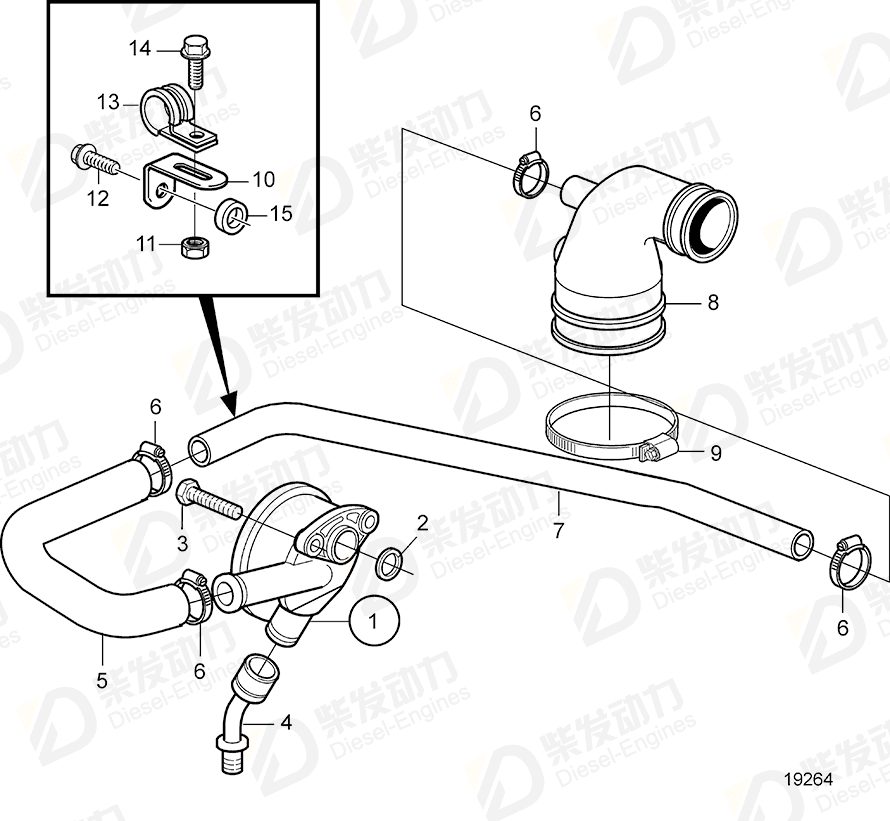

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil separator | 20405626 | 1 | |
| 1 | Pressure regulator | 20459252 | 1 | Replaced by 20405626. |
| 2 | Gasket | 20405627 | 1 | |
| 3 | Flange screw | 20450728 | 2 | |
| 4 | Connector | 20405938 | 1 | |
| 5 | Tube | 20459255 | 1 | |
| 6 | Hose clamp | 20405755 | 3 | |
| 7 | Breather pipe | 20511323 | 1 | SN-01099383 |
| 7 | Breather pipe | 20758402 | 1 | |
| 8 | Manifold | 20459248 | 1 | |
| 9 | Hose clamp | 20412379 | 1 | |
| 10 | Bracket | 20459260 | 1 | |
| 11 | Flange nut | 990940 | 1 | |
| 12 | Flange screw | 975199 | 1 | |
| 13 | Clamp | 20405532 | 1 | |
| 14 | Flange screw | 975197 | 1 | |
| 15 | Spacer washer | 948871 | 1 | For 946671 |
| Item | Part Name | Part No. |
| 10 | Bracket 20459260 | 20459260 |
| Details | |
| Engine model | TAD420VE TAD520GE TAD620VE TAD722VE TD420VE TD420VE, TAD420VE TD520GE |
| Application | Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 1, Tier 1 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2. Exhaust Manifold and Turbocharger. Low Mounted Turbo: A Exhaust Manifold and Turbocharger. Low Mounted Turbo: B |
