Bracket 21147050

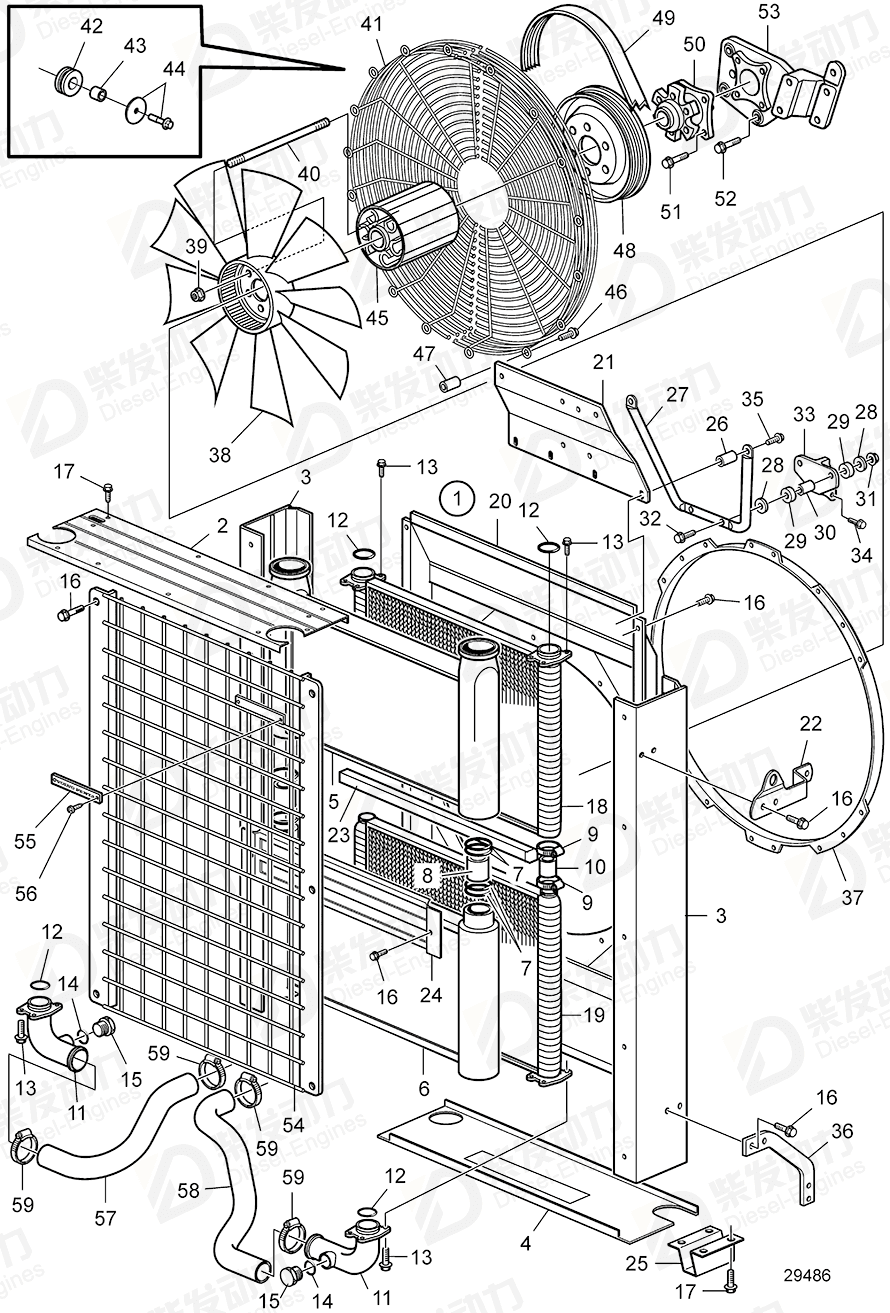

| No. | Part Name | Part Number | Qty | Description |
| 2 | Frame profile | 21134770 | 1 | |
| 3 | Frame profile | 21134766 | 2 | |
| 4 | Frame profile | 21134775 | 1 | |
| 5 | Charge air cooler | 3838129 | 1 | |
| 6 | Charge air cooler | 3587692 | 1 | |
| 7 | O-ring | 3587694 | 8 | |
| 8 | Intermediate pipe | 3587693 | 2 | |
| 9 | Hose clamp | 943478 | 4 | 62 (951794) |
| 10 | Hose | 21134129 | 2 | |
| 11 | Hose connection | 21134796 | 2 | |
| 12 | O-ring | 21138584 | 4 | |
| 14 | O-ring | 21147027 | 2 | |
| 15 | Plug | 21147028 | 2 | |
| 16 | Flange screw | 984733 | 20 | |
| 17 | Screw | 3587729 | 18 | |
| 18 | Radiator | 21134096 | 1 | |
| 19 | Radiator | 21133904 | 1 | |
| 20 | Fan shroud | 21135099 | 1 | |
| 21 | Bracket | 21147050 | 1 | |
| 22 | Bracket | 3830508 | 1 | Right |
| 22 | Bracket | 3830509 | 1 | Left |
| 23 | Sealing strip | 3587741 | 4 | |
| 24 | Lid | 3588348 | 1 | |
| 25 | Base | 21134779 | 2 | |
| 26 | Spacer sleeve | 849352 | 2 | |
| 27 | Stay | 3593807 | 1 | |
| 28 | Washer | 948556 | 4 | |
| 29 | Rubber bushing | 866857 | 4 | |
| 30 | Spacer sleeve | 252202 | 1 | |
| 31 | Flange nut | 966818 | 2 | Alt |
| 32 | Flange screw | 968302 | 2 | |
| 33 | Bracket | 3594409 | 1 | |
| 34 | Flange screw | 984753 | 3 | |
| 35 | Flange screw | 984758 | 2 | |
| 36 | Bracket | 3808825 | 1 | Left |
| 36 | Bracket | 3808827 | 1 | Right |
| 37 | Fan ring | 3827612 | 1 | |
| 37 | Fan ring | 78467816 | 1 | For Fan guard 78467466 |
| 38 | Fan | 3828963 | 1 | Suction fan, D=890mm |
| 39 | Flange nut | 990941 | 6 | |
| 40 | Stud | 130204 | 6 | |
| 41 | Fan guard | 3825490 | 2 | |
| 41 | Fan guard | 78467466 | 2 | |
| 42 | Rubber damper | 21860181 | 12 | |
| 43 | Spacer sleeve | 845988 | 12 | |
| 44 | Flange screw | 22147274 | 12 | |
| 45 | Fan hub | 3829537 | 1 | |
| 46 | Flange screw | 994386 | 12 | |
| 47 | Spacer sleeve | 807257 | 12 | |
| 48 | Pulley | 3829958 | 1 | Ratio 1:0,99 |
| 49 | V-ribbed belt | 3838617 | 1 | For 3807446 |
| 50 | Fan hub | 3829537 | 1 | |
| 51 | Flange screw | 984754 | 4 | |
| 52 | Flange screw | 965221 | 5 | |
| 53 | Bracket | 3830000 | 1 | |
| 54 | Radiator protector | 3829123 | 1 | Replaced by 21154155 |
| 54 | Radiator protector | 21154155 | 1 | |
| 55 | Emblem | 846118 | 1 | |
| 56 | Screw | 941651 | 2 | |
| 57 | Radiator hose | 3886478 | 1 | Left |
| 58 | Radiator hose | 3886480 | 1 | Right |
| 59 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| Item | Part Name | Part No. |
| 21 | Bracket 21147050 | 21147050 |
| Details | |
| Engine model | TAD1641VE, TAD1642VE TAD1643VE |
| Application | Radiator and Sunktion Fan. SN-2016079647 Radiator Suction Fan. SN2016028725-201679647 |
