Bracket 21349297

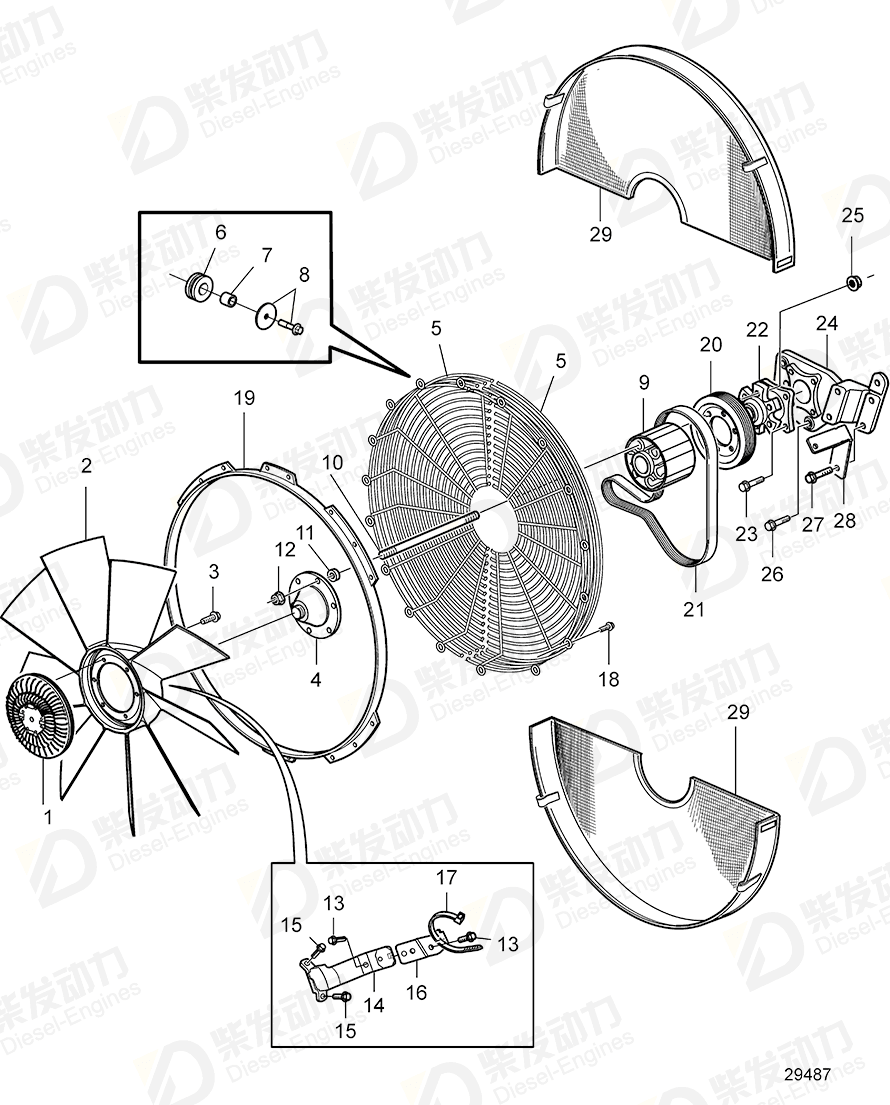

| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 21968941 | 1 | |
| 2 | Fan | 3595217 | 1 | Pushing fan |
| 2 | Fan | 21210284 | 1 | Suction fan |
| 3 | Six point screw | 21318856 | 6 | |
| 4 | Adapter | 21305942 | 1 | |
| 5 | Fan guard | 21206539 | 2 | SN-20131725003, For Visco fan and all other fans, Replaced by 78467466 |
| 5 | Fan guard | 78467466 | 2 | |
| 6 | Rubber damper | 21860181 | 12 | |
| 7 | Spacer sleeve | 845988 | 12 | |
| 8 | Flange screw | 22147274 | 12 | |
| 9 | Fan hub | 21349312 | 1 | L=118mm |
| 10 | Stud | 130201 | 6 | |
| 11 | Spacer sleeve | 842930 | 6 | |
| 12 | Flange nut | 990941 | 6 | |
| 13 | Flange screw | 984733 | 3 | |
| 14 | Sensor | 21315240 | 1 | For Visco fan and all other fans |
| 16 | Bracket | 21303458 | 1 | |
| 17 | Cable tie | 948211 | 2 | |
| 18 | Flange screw | 984734 | 12 | |
| 19 | Fan ring | 3827612 | 1 | |
| 19 | Fan ring | 78467816 | 1 | For Fan guard 78467466 |
| 20 | Pulley | 3828043 | 1 | Ratio 1:0,84, Not for TAD1374VE, TAD1375VE |
| 20 | Pulley | 3829957 | 1 | Ratio 0.93:1 |
| 20 | Pulley | 3829958 | 1 | Ratio 1:0,99 |
| 21 | V-ribbed belt | 3819398 | 1 | For TAD1640GE SN2016029185- |
| 21 | V-ribbed belt | 3838617 | 1 | For 3807446 |
| 21 | V-ribbed belt | 70326597 | 1 | For pulley 3828043 |
| 22 | Fan hub | 21924453 | 1 | |
| 23 | Flange screw | 984754 | 4 | |
| 24 | Bracket | 3830000 | 1 | |
| 25 | Flange nut | 990941 | 6 | |
| 26 | Flange screw | 965221 | 5 | |
| 27 | Flange screw, camshaft | 8192804 | 2 | |
| 28 | Bracket | 21349297 | 1 | |
| 29 | Air filter | 21192558 | 2 | Replaced by 78467607 |
| 29 | Filter netting | 78467607 | 2 | For Fan guard 78467466 |
| Item | Part Name | Part No. |
| 28 | Bracket 21349297 | 21349297 |
| Details | |
| Engine model | TAD1642GE, TAD1651GE TAD1650GE TAD1650GE, TAD1651GE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Fan Drive, Visco Fan Drive, Visco, SN2016079648- Visco Fan. Pusher and Suction Fan, SN-2016079647 |
