Bracket 21756476
Bracket 21756476
- Brandsvolvo penta
- Part No.: 21756476
- Availability: 联系我们

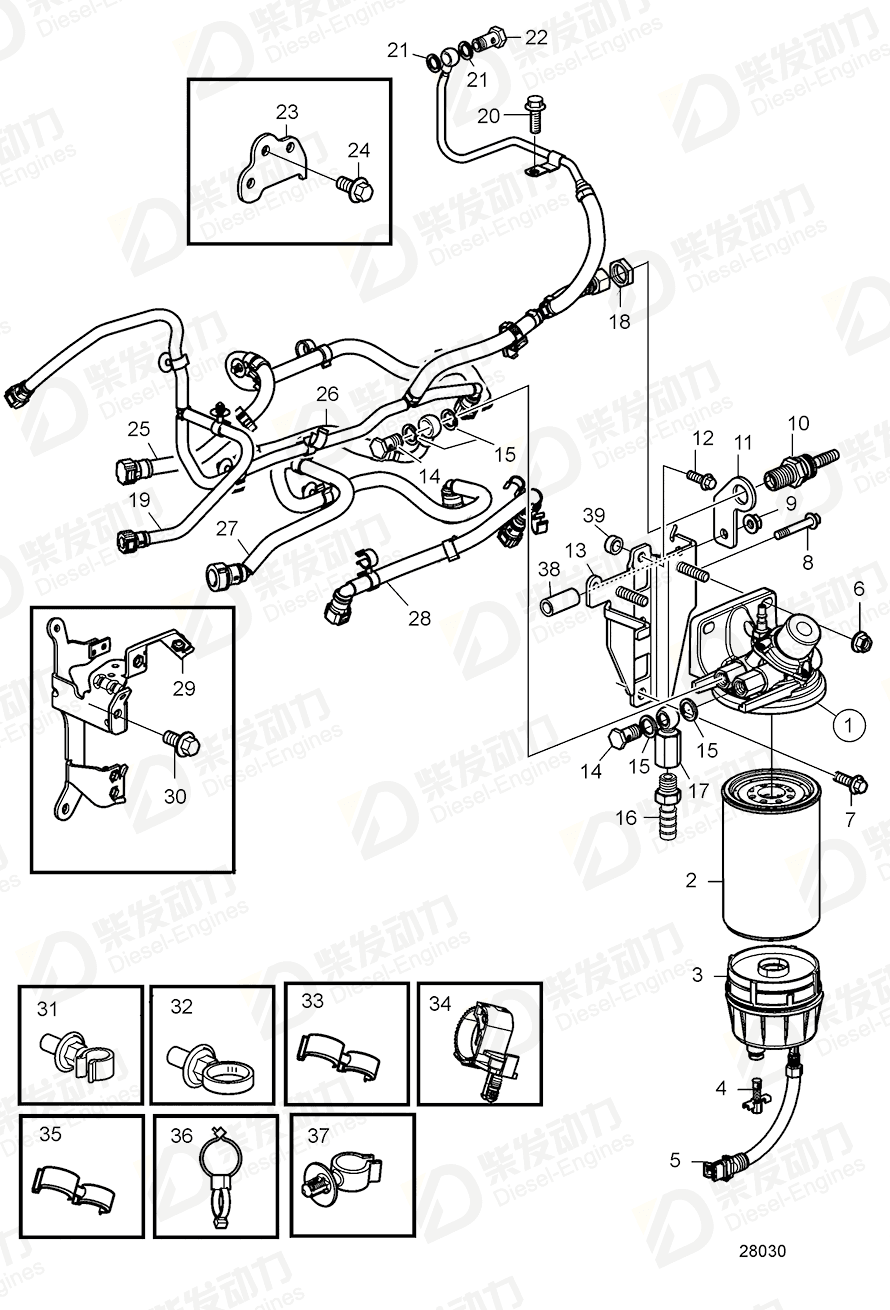

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Fuel filter |
21961468 |
1 |
|
| 2 |
Fuel filter |
21538975 |
1 |
|
| 3 |
Bowl |
21283474 |
1 |
|
| 4 |
Drain valve |
21279867 |
1 |
|
| 5 |
Sensor |
3885070 |
1 |
|
| 6 |
Flange nut |
990941 |
2 |
|
| 7 |
Flange screw |
984733 |
2 |
|
| 8 |
Flange screw |
984734 |
1 |
|
| 9 |
Flange nut |
990940 |
1 |
|
| 10 |
Nipple |
21828028 |
1 |
|
| 11 |
Bracket |
22168786 |
1 |
|
| 12 |
Flange screw |
984733 |
2 |
|
| 13 |
Bracket |
21749572 |
1 |
|
| 14 |
Hollow screw |
991048 |
2 |
|
| 15 |
Sealing ring |
20852764 |
4 |
|
| 16 |
Hose nipple |
3825000 |
1 |
For Fuel hose,Belongs to valve 70351592 |
| 17 |
Non-return valve |
3828976 |
1 |
|
| 18 |
Hexagon nut |
957019 |
1 |
|
| 19 |
Fuel hose |
22128291 |
1 |
|
| 20 |
Flange screw |
984733 |
1 |
|
| 21 |
Gasket |
20869257 |
2 |
|
| 22 |
Hollow screw |
981368 |
1 |
|
| 23 |
Bracket |
21756476 |
1 |
|
| 24 |
Flange screw |
984733 |
1 |
|
| 25 |
Fuel pipe |
21746491 |
1 |
|
| 26 |
Fuel hose |
22128295 |
1 |
|
| 27 |
Fuel pipe |
21746489 |
1 |
|
| 28 |
Fuel pipe |
21746487 |
1 |
|
| 29 |
Bracket |
22041435 |
1 |
|
| 30 |
Flange screw |
984733 |
2 |
|
| 31 |
Retainer |
21777574 |
1 |
|
| 32 |
Cable tie |
980881 |
1 |
|
| 33 |
Retainer |
3920536 |
1 |
|
| 34 |
Retainer |
21751694 |
1 |
|
| 35 |
Retainer |
981857 |
1 |
|
| 36 |
Retainer |
20885496 |
1 |
|
| 37 |
Retainer |
21979938 |
1 |
|
| 38 |
Spacer sleeve |
846425 |
1 |
Stop solenoid energized to stop., L=30mm |
| 39 |
Spacer sleeve |
820506 |
1 |
L=9mm |
| Item |
Part Name |
Part No. |
| 23 |
Bracket 21756476 |
21756476 |
| Details |
| Engine model |
TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application |
Fuel System |
Tags:
Bracket,
Volvo Penta,
21756476
