Bracket 21759871

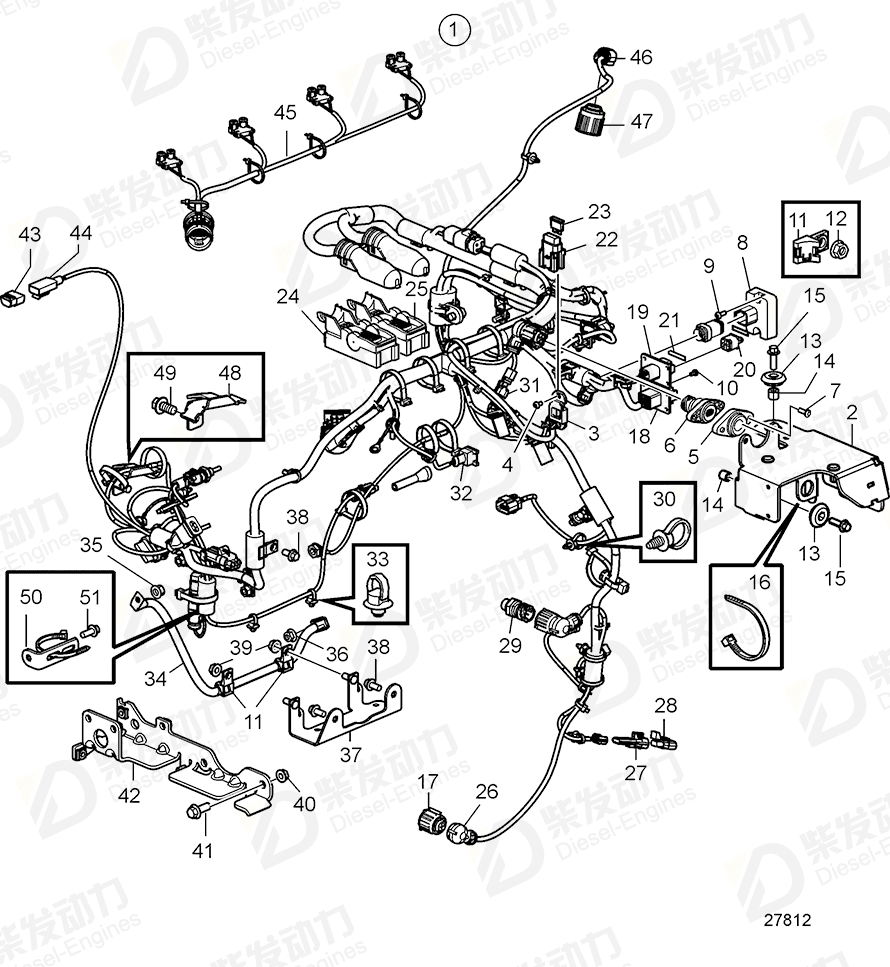

| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 22498246 | 1 | |
| 2 | Bracket | 22241915 | 1 | |
| 3 | Retainer | 873944 | 1 | |
| 4 | Six point socket scr | 972408 | 2 | |
| 5 | Cover | 21738845 | 1 | |
| 6 | Button | 21827824 | 1 | |
| 7 | Six point socket scr | 969422 | 2 | |
| 8 | Control unit | 21918597 | 1 | |
| 9 | Six point socket scr | 972410 | 6 | |
| 10 | Six point socket scr | 972399 | 8 | |
| 11 | Cable tie | 993183 | 2 | |
| 12 | Flange nut | 990940 | 2 | |
| 13 | Rubber bushing | 3886025 | 3 | |
| 14 | Spacer | 3830336 | 3 | |
| 15 | Flange screw | 984735 | 3 | |
| 16 | Cable tie | 980881 | 1 | |
| 17 | Connector | 3589939 | 4 | Replaced by: 984849, 3985621, 3985620, 984846, 970771, and 970772. |
| 18 | Tab housing | 874432 | 1 | |
| 19 | Housing | 992330 | 1 | |
| 20 | Sealing plug | 3840433 | 1 | |
| 21 | Decal | 21243308 | 1 | |
| 23 | Fuse | 969162 | 1 | |
| 24 | Housing | 20429842 | 1 | Black |
| 25 | Housing | 20429843 | 1 | Grey |
| 26 | Adapter, 90 Degrees | 3888501 | 1 | Replaced by 3985621 |
| 27 | Tab housing | 874211 | 1 | |
| 28 | Receptacle housing | 874283 | 1 | |
| 29 | Pressure sensor, oil-pressure | 21634021 | 1 | |
| 29 | Pressure sensor | 22899626 | 1 | SN2013690141- |
| 30 | Cable tie | 980881 | 10 | |
| 31 | Wiring harness | 22782895 | 1 | |
| 32 | Receptacle housing | 874368 | 2 | |
| 33 | Housing | 976256 | 1 | 2-pole |
| 34 | Cable tie | 990073 | 3 | For cable to unit injectors. |
| 35 | Power cable | 21760606 | 1 | |
| 36 | Hexagon nut | 983715 | 1 | (949578) |
| 37 | Hexagon nut | 983716 | 1 | |
| 38 | Bracket | 21759853 | 1 | |
| 39 | Flange screw | 984733 | 7 | |
| 40 | Flange nut | 990940 | 2 | |
| 41 | Bracket | 21759871 | 1 | |
| 42 | Flange screw | 984753 | 2 | |
| 43 | Flange nut | 990940 | 2 | |
| 44 | Housing | 1307049 | 1 | 2-pole |
| 45 | Housing | 1624477 | 1 | 2-pole |
| 46 | Wiring harness | 21760502 | 1 | |
| 47 | Connector | 3589939 | 1 | Replaced by: 984849, 3985621, 3985620, 984846, 970771, and 970772. |
| 48 | Terminal cover | 3888383 | 1 | |
| 49 | Bracket | 22245782 | 1 | |
| 50 | Flange screw | 984752 | 1 | |
| 51 | Bracket | 965558 | 1 | |
| 52 | Flange screw | 984734 | 1 |
| Item | Part Name | Part No. |
| 41 | Bracket 21759871 | 21759871 |
| Details | |
| Engine model | TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Electrical System |
