Bracket 21831617

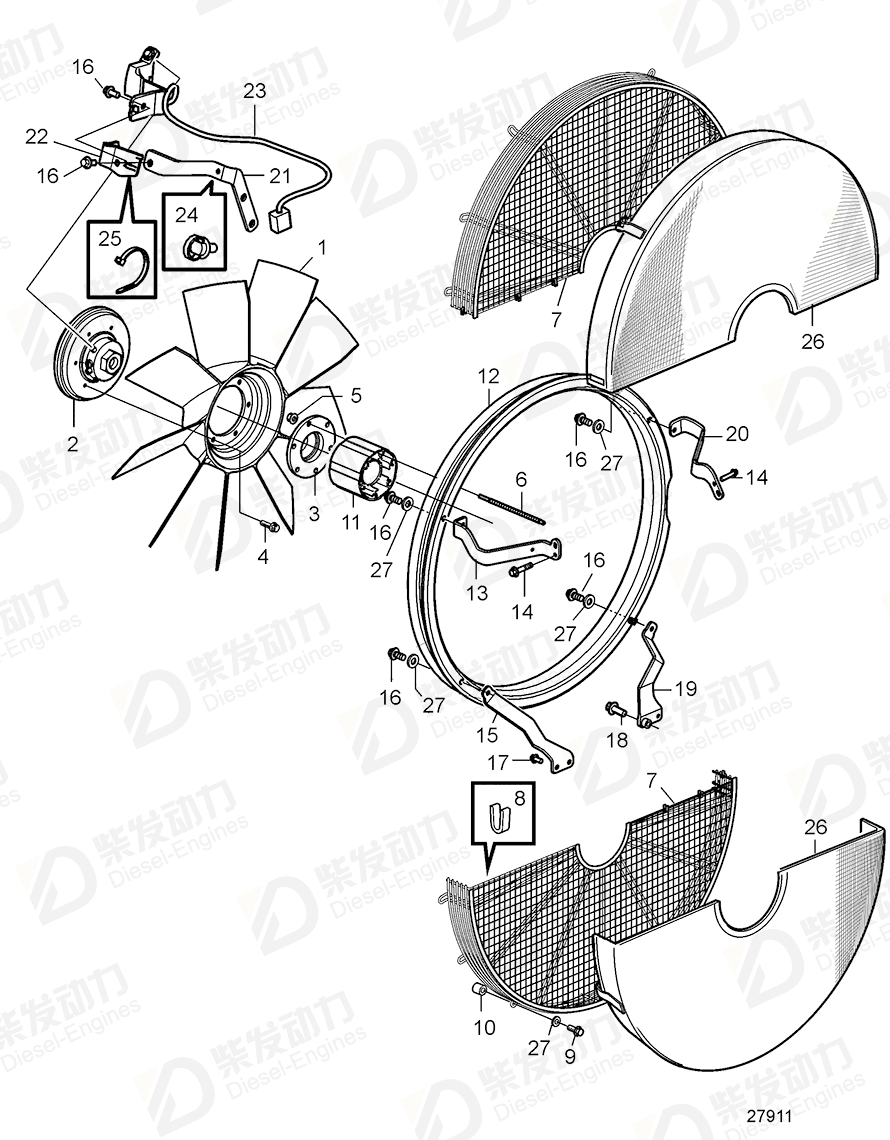

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 21328922 | 1 | Suction fan, D=750mm |
| 1 | Fan | 21849998 | 1 | Pushing fan |
| 2 | Clutch | 21372710 | 1 | |
| 3 | Adapter | 21305942 | 1 | |
| 4 | Six point screw | 21318856 | 6 | |
| 5 | Flange lock nut | 990951 | 6 | |
| 6 | Stud | 953005 | 6 | L=140mm |
| 7 | Fan guard | 22389861 | 2 | Replaced by 78467466 |
| 9 | Flange screw | 984739 | 12 | |
| 10 | Spacer sleeve | 823494 | 12 | For Fan guard 22389861 |
| 11 | Fan hub | 21314136 | 1 | |
| 12 | Fan ring | 1664910 | 1 | |
| 13 | Bracket | 21831617 | 1 | |
| 14 | Flange screw | 984734 | 4 | |
| 15 | Bracket | 21831615 | 1 | |
| 16 | Flange screw | 984733 | 4 | |
| 17 | Flange screw | 984752 | 2 | |
| 18 | Flange screw | 984736 | 2 | |
| 19 | Bracket | 22030887 | 1 | |
| 20 | Bracket | 21831619 | 1 | |
| 21 | Bracket | 21868019 | 1 | |
| 22 | Bracket | 21338750 | 1 | |
| 23 | Sensor | 21315240 | 2 | For Visco fan and all other fans |
| 24 | Cable tie | 980881 | 1 | |
| 25 | Cable tie | 948211 | 3 | |
| 26 | Air filter | 22036546 | 2 | |
| 27 | Washer | 976944 | 16 |
| Item | Part Name | Part No. |
| 13 | Bracket 21831617 | 21831617 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Fan and Fan Ring, D=750mm. Suction & Pushing Fan and Fan Ring. D=750mm. Suction & Pushing. Visco |
