Bracket 22096551

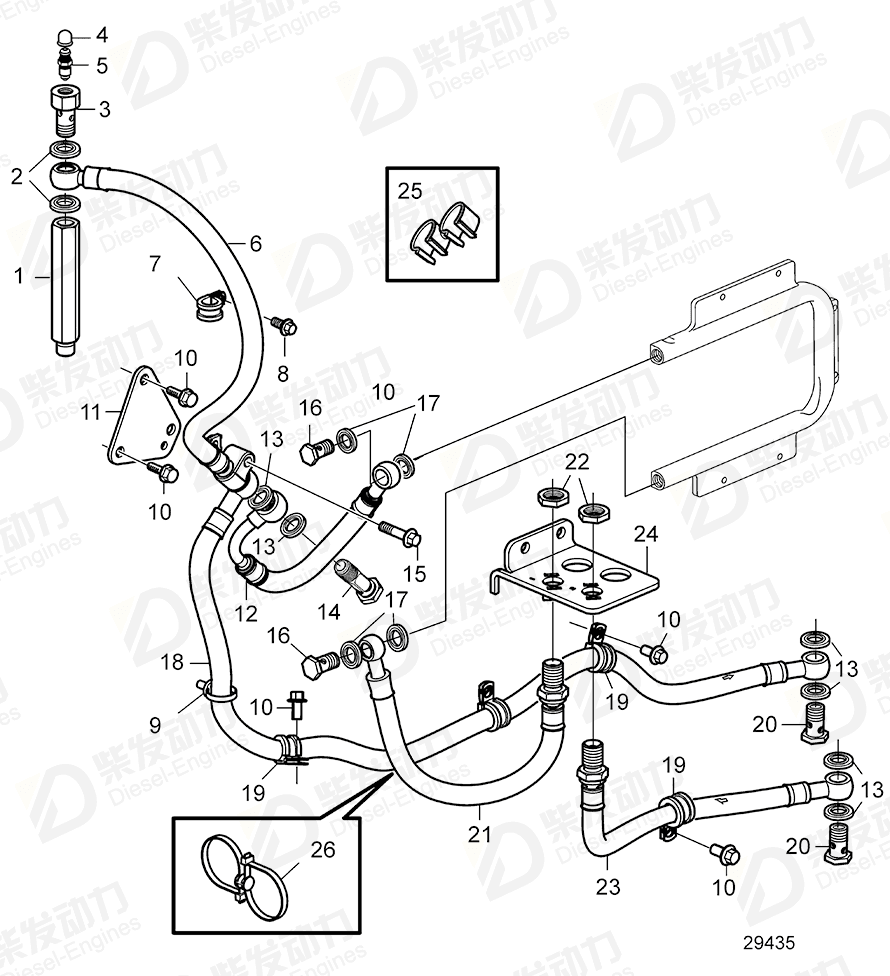

| No. | Part Name | Part Number | Qty | Description |
| 1 | Spacer | 3848722 | 1 | |
| 2 | Gasket | 982724 | 2 | |
| 3 | Hollow screw | 3595375 | 1 | |
| 4 | Protecting cover | 20547976 | 1 | |
| 5 | Faucet | 20548012 | 1 | |
| 6 | Fuel hose | 23153390 | 1 | |
| 7 | Clamp | 60114308 | 1 | |
| 8 | Flange screw | 984733 | 1 | |
| 9 | Cable tie | 980881 | 3 | |
| 10 | Flange screw | 984733 | 6 | |
| 11 | Bracket | 22096551 | 1 | |
| 12 | Fuel hose | 22572741 | 1 | |
| 13 | Sealing ring | 20852765 | 6 | |
| 14 | Overflow valve | 21014054 | 1 | |
| 15 | Flange screw | 984737 | 1 | |
| 16 | Hollow screw | 991048 | 2 | |
| 17 | Sealing ring | 20852764 | 4 | |
| 18 | Fuel hose | 22098677 | 1 | |
| 19 | Clamp | 949747 | 4 | |
| 20 | Hollow screw | 991046 | 2 | |
| 21 | Fuel hose | 22099011 | 1 | |
| 22 | Hexagon nut | 957019 | 2 | |
| 23 | Fuel hose | 22099276 | 1 | |
| 24 | Bracket | 22306195 | 1 | |
| 25 | Retainer | 9194404 | 1 | |
| 26 | Retainer | 20885497 | 1 |
| Item | Part Name | Part No. |
| 11 | Bracket 22096551 | 22096551 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Fuel System, Alternative Mounting |
