Bracket 22642909

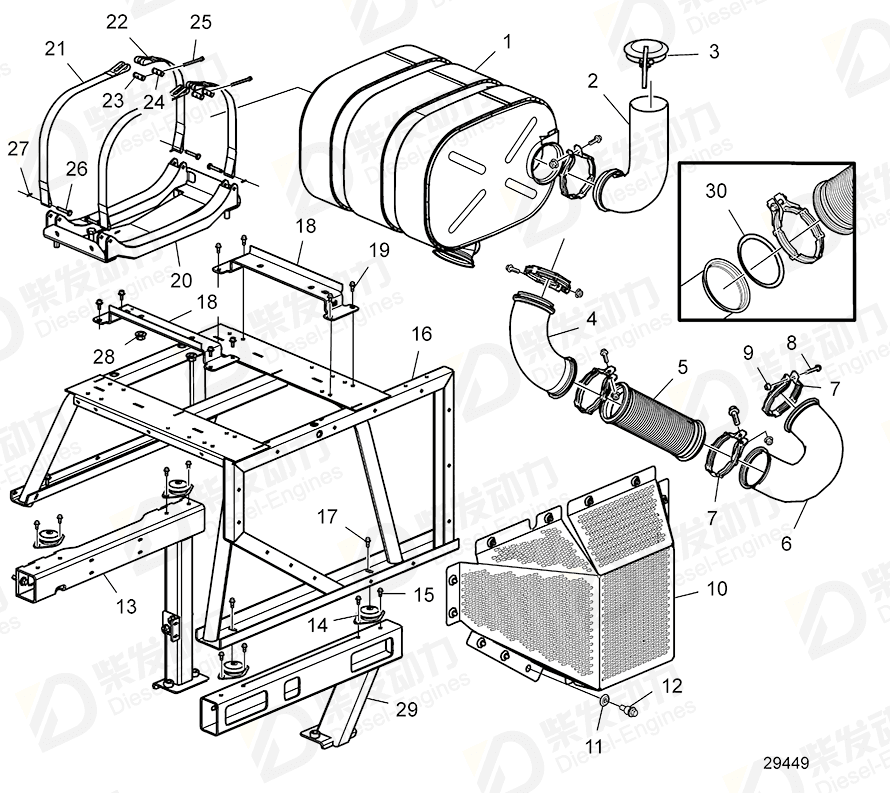

| No. | Part Name | Part Number | Qty | Description |
| 1 | Silencer | 22030713 | 1 | |
| 2 | Exhaust pipe | 22641820 | 1 | |
| 3 | Rain cap | 21659349 | 1 | |
| 4 | Exhaust pipe | 22517000 | 1 | |
| 5 | Exhaust pipe | 22321908 | 1 | |
| 6 | Exhaust pipe | 22516294 | 1 | |
| 7 | V-clamp | 1629499 | 5 | |
| 8 | Flange screw | 994195 | 5 | |
| 9 | Flange nut | 990941 | 5 | |
| 10 | Heat shield | 22656565 | 1 | |
| 11 | Rubber bushing | 3883499 | 12 | |
| 12 | Shoulder screw | 21972025 | 12 | |
| 13 | Bracket | 22642920 | 1 | |
| 14 | Cushion | 22522861 | 4 | |
| 15 | Flange screw | 984752 | 8 | |
| 16 | Bracket | 22656507 | 1 | |
| 17 | Flange screw | 984814 | 4 | |
| 18 | Bracket | 22515432 | 2 | |
| 19 | Flange screw | 984752 | 8 | |
| 20 | Bracket | 22243453 | 1 | |
| 21 | Mounting strap | 78467060 | 2 | |
| 22 | Mounting strap | 78467051 | 2 | |
| 23 | Stub | 8150742 | 2 | |
| 24 | Stub | 8150740 | 2 | |
| 25 | Hex. socket screw | 1076336 | 2 | |
| 26 | Clevis pin | 964863 | 4 | |
| 27 | Split pin | 664822 | 4 | |
| 28 | Flange nut | 990944 | 4 | |
| 29 | Bracket | 22642909 | 1 | |
| 30 | Gasket | 21095726 | 1 | 5'' Gasket if reqired |
| Item | Part Name | Part No. |
| 29 | Bracket 22642909 | 22642909 |
| Details | |
| Engine model | TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Engine Mounting, Fixed, Open Power Unit SCR. Installation Components Muffler, Open Power Unit |
| Specification | |
| Descriptions | 5'' Gasket if reqired |
