Bracket 3808827

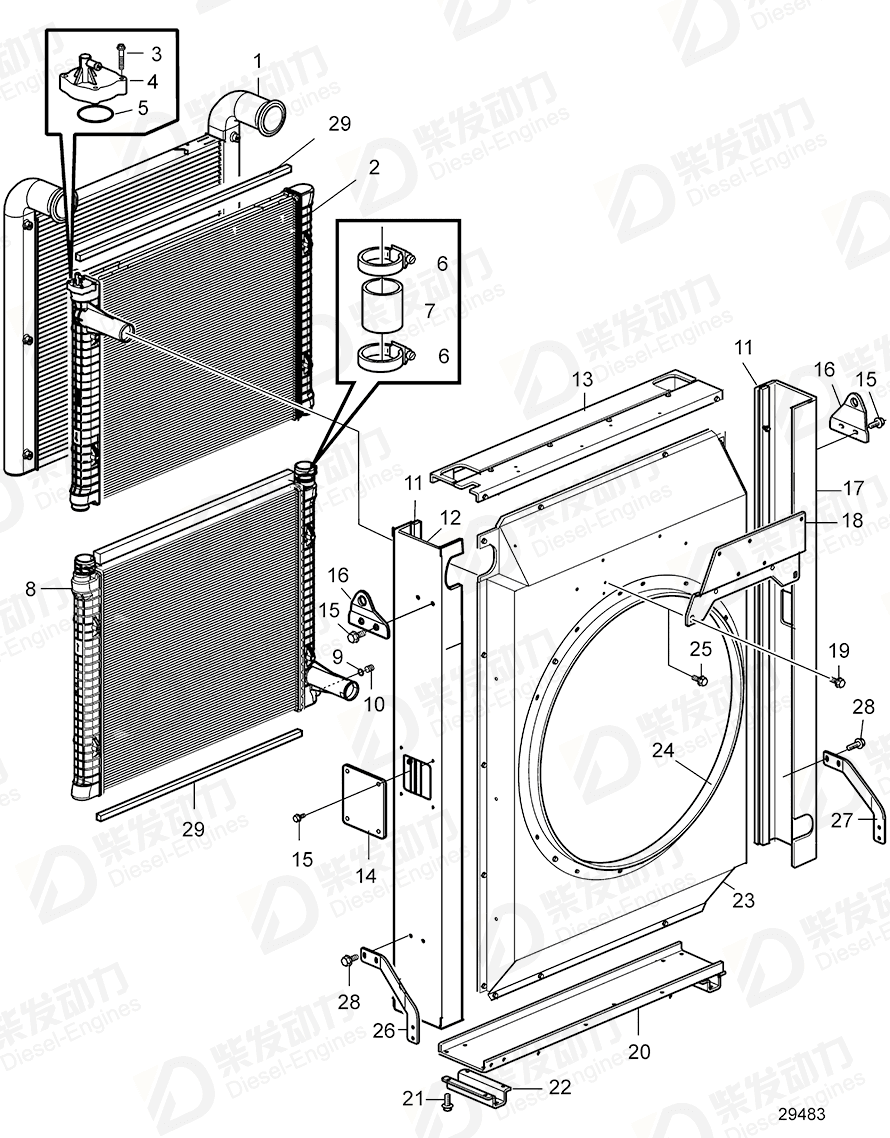

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air cooler | 22174556 | 1 | SN-2016108826 |
| 1 | Charge air cooler | 23136793 | 1 | SN2016108827- |
| 2 | Radiator | 22174564 | 1 | |
| 3 | Flange screw | 996061 | 4 | |
| 4 | Plate | 22347421 | 1 | |
| 5 | Sealing ring | 22347412 | 1 | |
| 6 | Hose clamp | 961672 | 4 | |
| 7 | Hose | 22075129 | 2 | |
| 8 | Radiator | 22174567 | 1 | |
| 9 | O-ring | 22347426 | 1 | |
| 10 | Plug | 22347425 | 1 | |
| 11 | Seal | 22343834 | 2 | |
| 12 | Frame | 22174500 | 1 | |
| 13 | Frame | 22174549 | 1 | |
| 14 | Plate | 22155655 | 2 | |
| 15 | Flange screw | 984724 | 8 | |
| 16 | Bracket | 22075131 | 2 | |
| 17 | Frame | 22174498 | 1 | |
| 18 | Bracket | 22272317 | 1 | |
| 19 | Flange screw | 984733 | 48 | |
| 20 | Frame | 22075123 | 1 | |
| 21 | Flange screw | 984752 | 15 | |
| 22 | Bracket | 22075190 | 2 | |
| 23 | Cover | 22347467 | 1 | SN-2016108826 |
| 23 | Cover | 23176225 | 1 | SN2016108827- Only together with Fan Guard 78467466 |
| 24 | Fan ring | 22347468 | 1 | |
| 24 | Fan ring | 78467816 | 1 | For Fan guard 78467466 |
| 25 | Flange screw | 984733 | 10 | |
| 26 | Bracket | 3808827 | 1 | Right |
| 27 | Bracket | 3808825 | 1 | Left |
| 28 | Flange screw | 984734 | 8 | |
| 29 | Seal | 22837691 | 2 |
| Item | Part Name | Part No. |
| 26 | Bracket 3808827 | 3808827 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1641VE, TAD1642VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1643VE TAD1643VE-B TAD1650GE, TAD1651GE TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Radiator and Charge Air Cooler, Pushing Radiator and Charge Air Cooler, Pushing, SN2016084274- Radiator and Charge Air Cooler, Pushing, SN201679648-SN2016084273 Radiator and Charge Air Cooler, SN-2016079647 Radiator and Charge Air Cooler, Suction Radiator and Charge Air Cooler, Suction, SN2016079648- Radiator and Charge Air Cooler,Pushing,SN2016027048-2016079647 Radiator and Pushing Fan. SN-2016028724 Radiator and Sunktion Fan. SN-2016079647 Radiator Suction Fan. SN2016028725-201679647 |
| Specification | |
| Descriptions | Left Right |
