Bracket 3825152

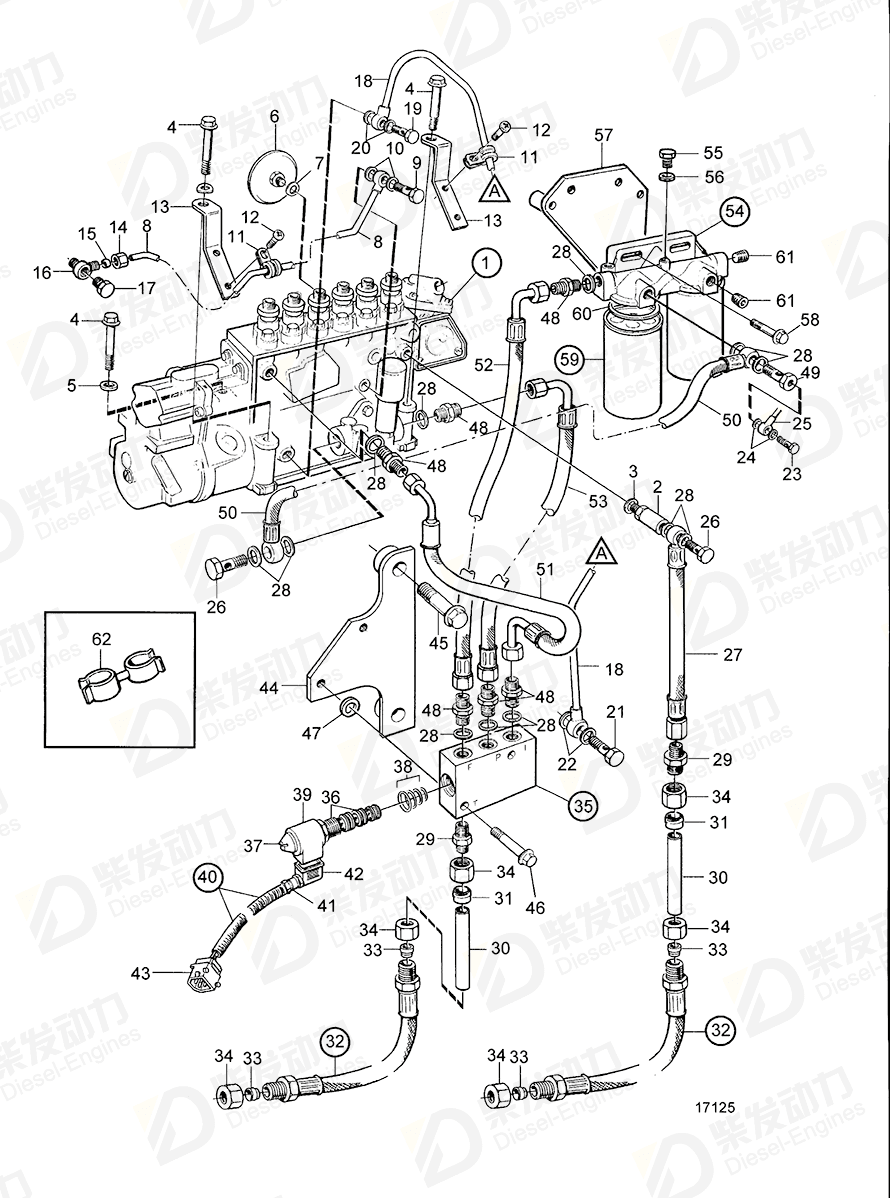

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 865567 | 1 | |
| 1 | Injection pump | 3803718 | 1 | |
| 2 | Overflow valve | 3825154 | 1 | |
| 3 | Gasket | 11996 | 1 | |
| 4 | Flange screw | 984760 | 4 | |
| 5 | Washer | 190509 | 2 | |
| 6 | Pressure equalizer | 477173 | 1 | (466398) |
| 7 | Gasket | 976929 | 1 | Alt (969011) |
| 8 | Oil pressure pipe | 862997 | 1 | |
| 9 | Hollow screw | 48634 | 1 | |
| 10 | Gasket | 947281 | 2 | |
| 11 | Clamp | 952623 | 2 | |
| 12 | Cross recessed screw | 956092 | 2 | (241793) |
| 13 | Bracket | 1543721 | 2 | |
| 14 | Fitting nut | 954356 | 1 | |
| 15 | Sleeve | 954364 | 1 | |
| 16 | T-nipple, oil pipe-injection pump | 942078 | 1 | |
| 17 | Plug | 479979 | 1 | |
| 18 | Oil return pipe | 3826169 | 1 | (1543962) |
| 19 | Hollow screw | 48634 | 1 | |
| 20 | Gasket | 947281 | 2 | |
| 21 | Hollow screw | 25167 | 1 | |
| 22 | Gasket | 976929 | 2 | Alt (969011) |
| 23 | Hollow screw | 74033 | 1 | |
| 24 | Gasket | 947620 | 2 | (233321) |
| 25 | Leak-off line | 865360 | 1 | (862566) |
| 26 | Hollow screw | 16496 | 2 | |
| 27 | Fuel hose | 3825603 | 1 | |
| 28 | Gasket | 969011 | 12 | |
| 29 | Nipple | 957055 | 2 | |
| 30 | Fuel pipe | 3825770 | 2 | |
| 31 | Ferrule | 956969 | 2 | |
| 32 | Fuel hose | 865737 | 2 | |
| 33 | Ferrule | 956969 | 4 | |
| 34 | Fitting nut | 956983 | 4 | |
| 35 | Fuel valve | 3828983 | 1 | |
| 36 | Valve | 3825235 | 1 | |
| 38 | Gasket kit | 3828981 | 1 | |
| 39 | Magnet | 3825240 | 1 | |
| 40 | Cable kit | 866927 | 1 | |
| 41 | Housing | 866664 | 1 | |
| 42 | Grommet | 844576 | 1 | |
| 44 | Bracket | 3825152 | 1 | |
| 45 | Hexagon screw | 955368 | 2 | |
| 46 | Flange screw | 984738 | 2 | |
| 47 | Washer | 976944 | 2 | |
| 48 | Nipple | 941754 | 6 | |
| 49 | Hollow screw | 16496 | 1 | |
| 50 | Hose | 3825670 | 1 | |
| 51 | Hose | 3825671 | 1 | |
| 52 | Hose | 3825722 | 1 | |
| 53 | Hose | 3825669 | 1 | |
| 54 | Fuel filter housing | 8194541 | 1 | |
| 55 | Hollow screw | 471177 | 1 | |
| 56 | Gasket | 947620 | 1 | (233321) |
| 57 | Bracket | 849769 | 1 | |
| 58 | Flange screw | 984755 | 2 | |
| 59 | Fuel filter | 3825133 | 2 | |
| 60 | Gasket | 6638088 | 2 | |
| 61 | Plug | 968062 | 3 | |
| 62 | Retainer | 9205207 | 2 |
| Item | Part Name | Part No. |
| 44 | Bracket 3825152 | 3825152 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TWD1630P TWD1630V |
| Application | Fuel System with Fuel Shut-offValve |
