Bracket 3825163

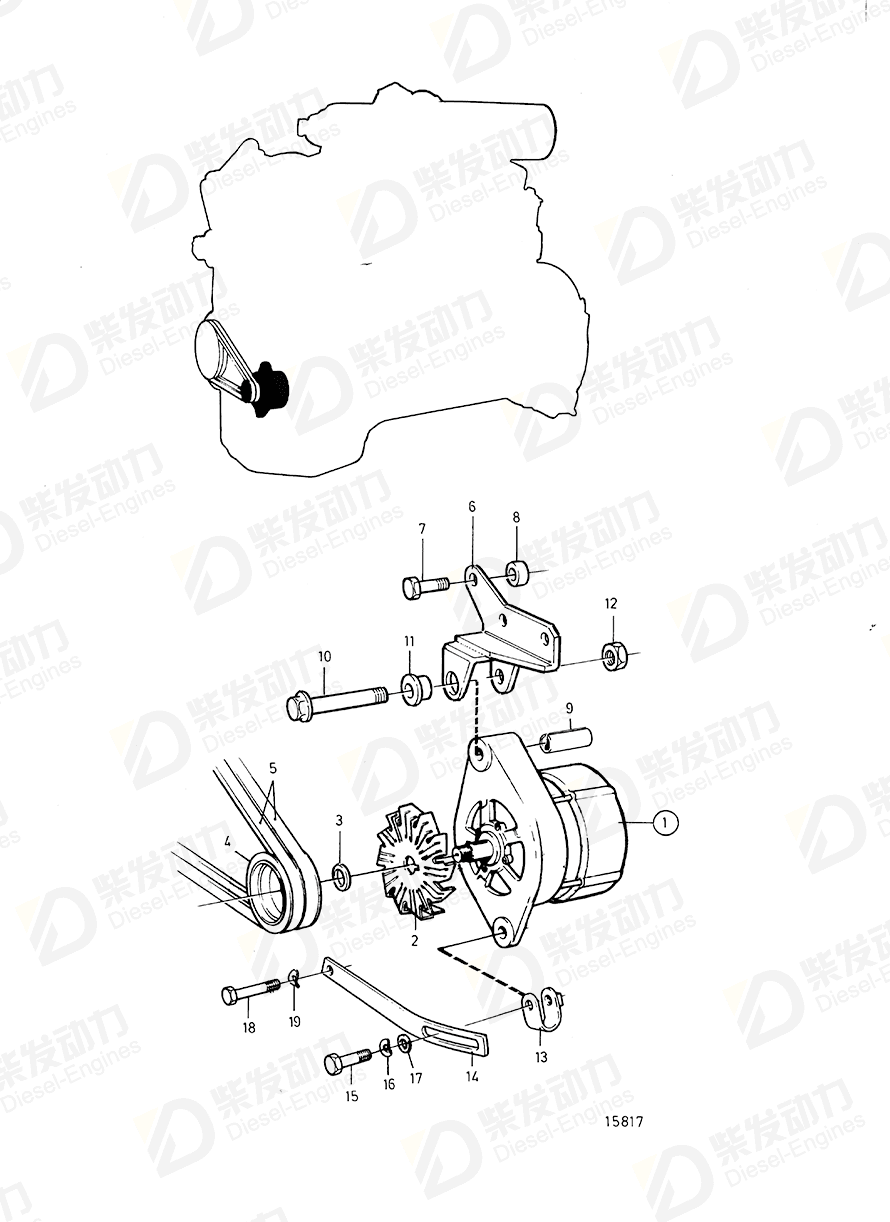

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 1 | Alternator | 1089862 | 1 | 28V 80A, E.U=3803394 |
| 1 | Alternator, exch | 3803394 | 1 | 28V 80A, E.U=3803394 |
| 1 | Alternator | 6779261 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Fan | 1613241 | 1 | |
| 3 | Washer | 955900 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 4 | Pulley | 822573 | 1 | |
| 5 | V-belt | 978548 | 1 | L=2x1225mm |
| 6 | Bracket | 3825163 | 1 | |
| 7 | Hexagon screw | 955537 | 3 | |
| 8 | Spacer sleeve | 823575 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 9 | Spring pin | 1610144 | 1 | |
| 10 | Flange screw | 966367 | 1 | M14X100 |
| 11 | Spacer sleeve | 1675685 | 1 | |
| 12 | Lock nut | 971091 | 1 | |
| 13 | Tensioning loop | 466734 | 1 | |
| 13 | Tensioning loop | 466735 | 1 | |
| 14 | Tensioner | 966797 | 1 | |
| 15 | Hexagon screw | 955299 | 1 | |
| 16 | Spring washer | 941907 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Hexagon screw | 955541 | 1 | |
| 19 | Spring washer | 942336 | 1 |
| Item | Part Name | Part No. |
| 6 | Bracket 3825163 | 3825163 |
| Details | |
| Engine model | TD100G-87 |
| Application | Alternator, Low-Left, SNXXXXXXXXXX/268617- Alternator, Twin, Low L-High R, SNXXXXXXXXXX/268617- Alternator, Twin, Low L/R, SNXXXXXXXXXX/268617- |
