Bracket 3825634

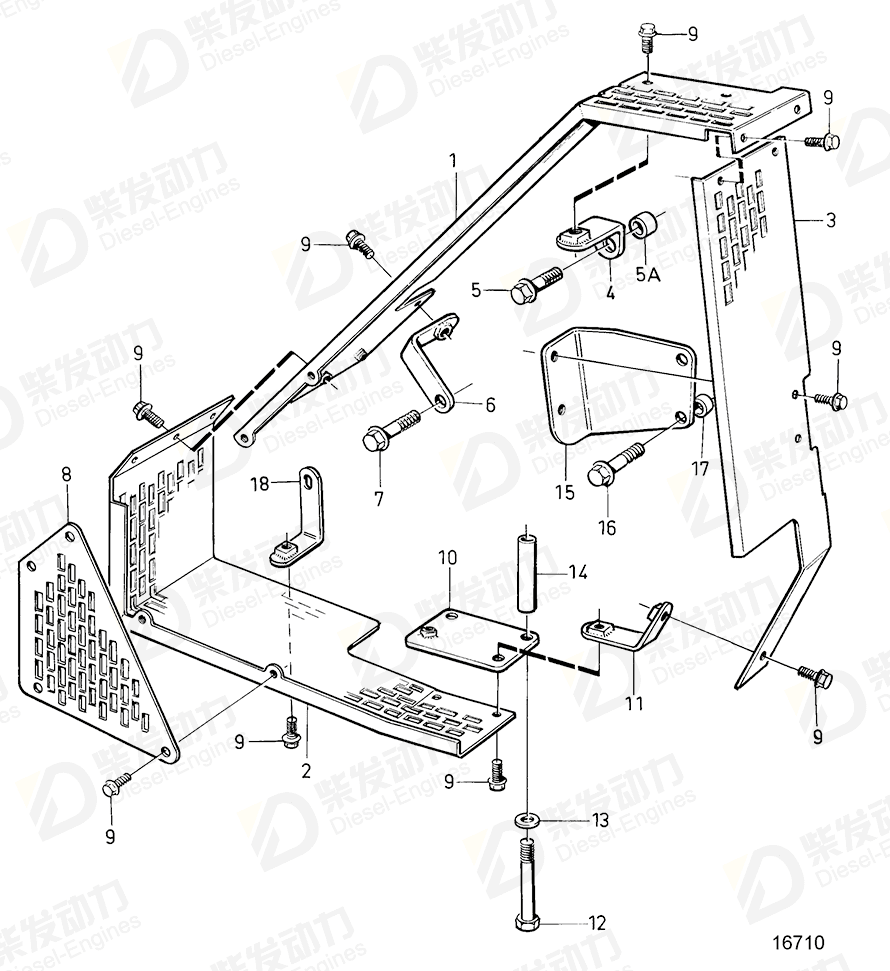

| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt protector | 3826980 | 1 | |
| 2 | Belt protector | 3825175 | 1 | |
| 3 | Belt protector | 3825176 | 1 | |
| 4 | Bracket | 3825634 | 1 | Replaced by 1 pc 965556 and 1 pc 945407. |
| 5 | Hexagon screw | 955526 | 1 | MD70BK spec 867116 MOXXXX/9685- |
| 6 | Bracket | 3825183 | 1 | |
| 7 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 8 | Protecting plate | 3825251 | 1 | |
| 9 | Flange screw | 967949 | 18 | |
| 10 | Bracket | 3825179 | 1 | |
| 11 | Bracket | 3825252 | 1 | |
| 12 | Hexagon screw | 955534 | 2 | |
| 13 | Washer | 976944 | 2 | |
| 14 | Spacer sleeve | 848882 | 2 | |
| 15 | Bracket | 3826241 | 1 | |
| 16 | Hexagon screw | 955538 | 2 | |
| 17 | Spacer sleeve | 829653 | 2 | |
| 18 | Bracket | 3826377 | 1 | |
| 5A | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| Item | Part Name | Part No. |
| 4 | Bracket 3825634 | 3825634 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TD610V, TWD610V, TWD630VE, TD640VE TD71A, TWD710V, TWD731VE, TAD730V TWD610P, TWD710P, TAD730P |
| Application | Belt Guard Belt Guard, SN2100281208- Belt Protection, Later Production |
| Specification | |
| Descriptions | Replaced by 1 pc 965556 and 1 pc 945407. Replaced by bracket 965556 and flange nut 945407. |
