Bracket 3825677

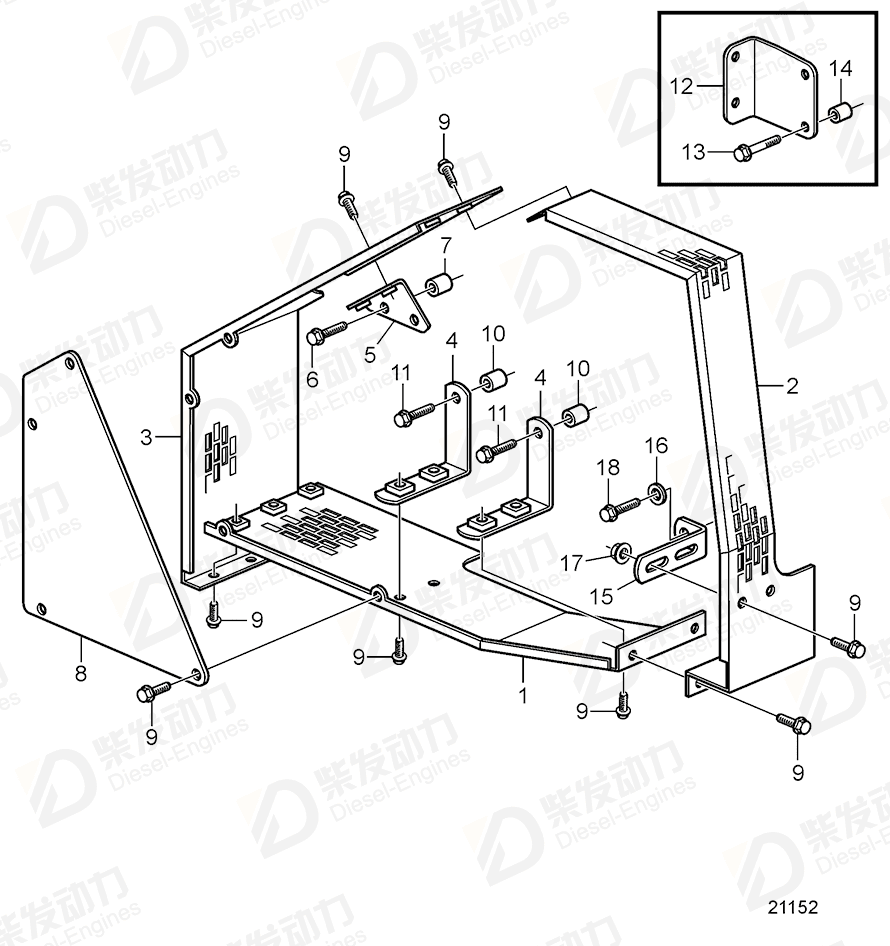

| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt protector | 3826616 | 1 | |
| 2 | Belt protector | 3826617 | 1 | |
| 3 | Belt protector | 3826258 | 1 | |
| 4 | Bracket | 3825677 | 2 | |
| 5 | Bracket | 3825673 | 1 | |
| 6 | Hexagon screw | 955538 | 2 | |
| 7 | Spacer sleeve | 827861 | 2 | MO-201373/XXXXX |
| 8 | Protecting plate | 3825676 | 1 | |
| 9 | Flange screw | 967949 | 19 | |
| 10 | Spacer sleeve | 829653 | 2 | |
| 11 | Hexagon screw | 942529 | 2 | |
| 12 | Bracket | 3825674 | 1 | |
| 13 | Hexagon screw | 955538 | 2 | |
| 14 | Spacer sleeve | 824205 | 2 | D=17mm |
| 15 | Bracket | 965562 | 1 | |
| 16 | Spring washer | 942336 | 6 | |
| 17 | Flange nut | 945407 | 2 | For THD102KB and THD102KD. |
| 18 | Hexagon screw | 955543 | 1 |
| Item | Part Name | Part No. |
| 4 | Bracket 3825677 | 3825677 |
| Details | |
| Engine model | TD100G-87 TD1010G, TWD1010G |
| Application | Belt Guard Belt Guard, SN2100277341-: SN-2100309241 Belt Guard, SN2100277341-: SN2100309242- |
