Bracket 3826159

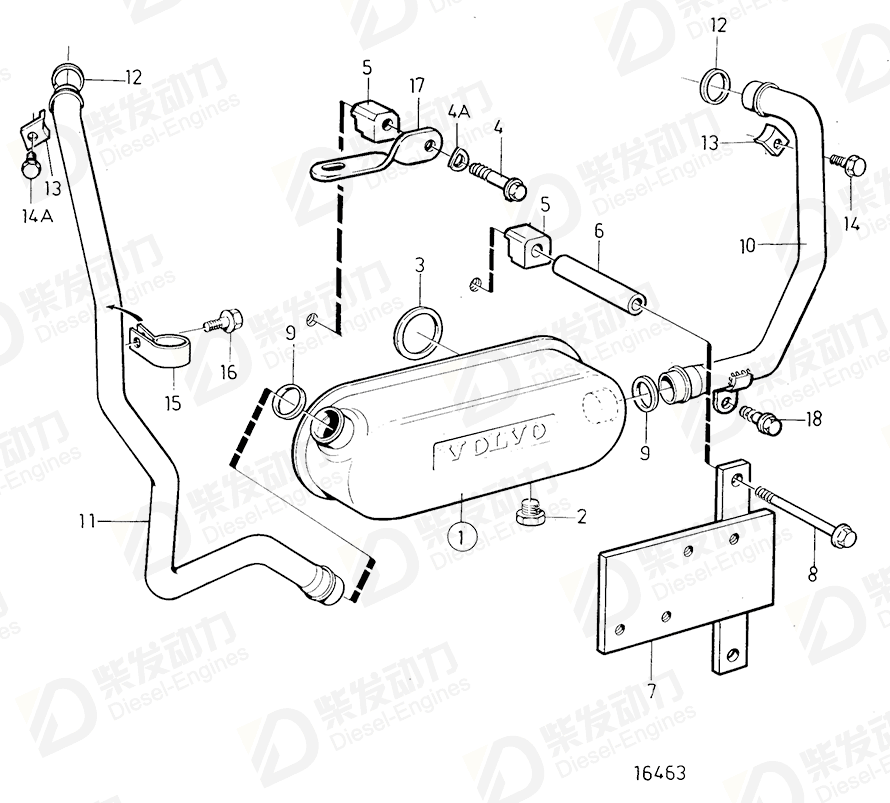

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 864915 | 1 | |
| 2 | Plug | 479979 | 1 | |
| 3 | Sealing ring | 471467 | 2 | |
| 4 | Flange screw | 965186 | 4 | |
| 5 | Retainer | 471804 | 4 | |
| 6 | Spacer sleeve | 822779 | 2 | |
| 7 | Bracket | 3826159 | 1 | |
| 8 | Flange screw | 969313 | 2 | |
| 9 | Rubber moulding | 471708 | 2 | |
| 10 | Coolant pipe | 848524 | 1 | |
| 11 | Coolant pipe | 849673 | 1 | Thermostat housing-oil cooler. |
| 12 | Sealing ring | 471637 | 2 | |
| 13 | Clamp | 421654 | 2 | |
| 14 | Flange screw | 946440 | 1 | |
| 15 | Clamp | 968508 | 1 | |
| 16 | Flange screw | 946471 | 1 | |
| 17 | Anchorage | 1136551 | 1 | |
| 18 | Flange screw | 946471 | 1 | |
| 4A | Spring washer | 941908 | 4 | |
| 14A | Flange screw | 949846 | 1 |
| Item | Part Name | Part No. |
| 7 | Bracket 3826159 | 3826159 |
| Details | |
| Engine model | TAD730P TAD730V TAD740GE TAD741GE TD630ME TD630VE TD630VE, TWD630VE TD640VE TD71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD730ME, TWD731ME TD730VE TID71A TWD630ME TWD630VE TWD710P TWD710V TWD731VE |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump with Shut-off Valve, Energized to Run. Option. Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C Oil Cooler with Bracket for Shut-off Valve Oil Cooler, Engine, with Bracket for Shut-off Valve Oil Cooler, Engine, with Bracket for Shut-off Valve: A Oil Cooler, Engine, with Bracket for Shut-off Valve: B |
Related Products
Tags: Bracket, Volvo Penta, 3826159
