Bracket 3826364

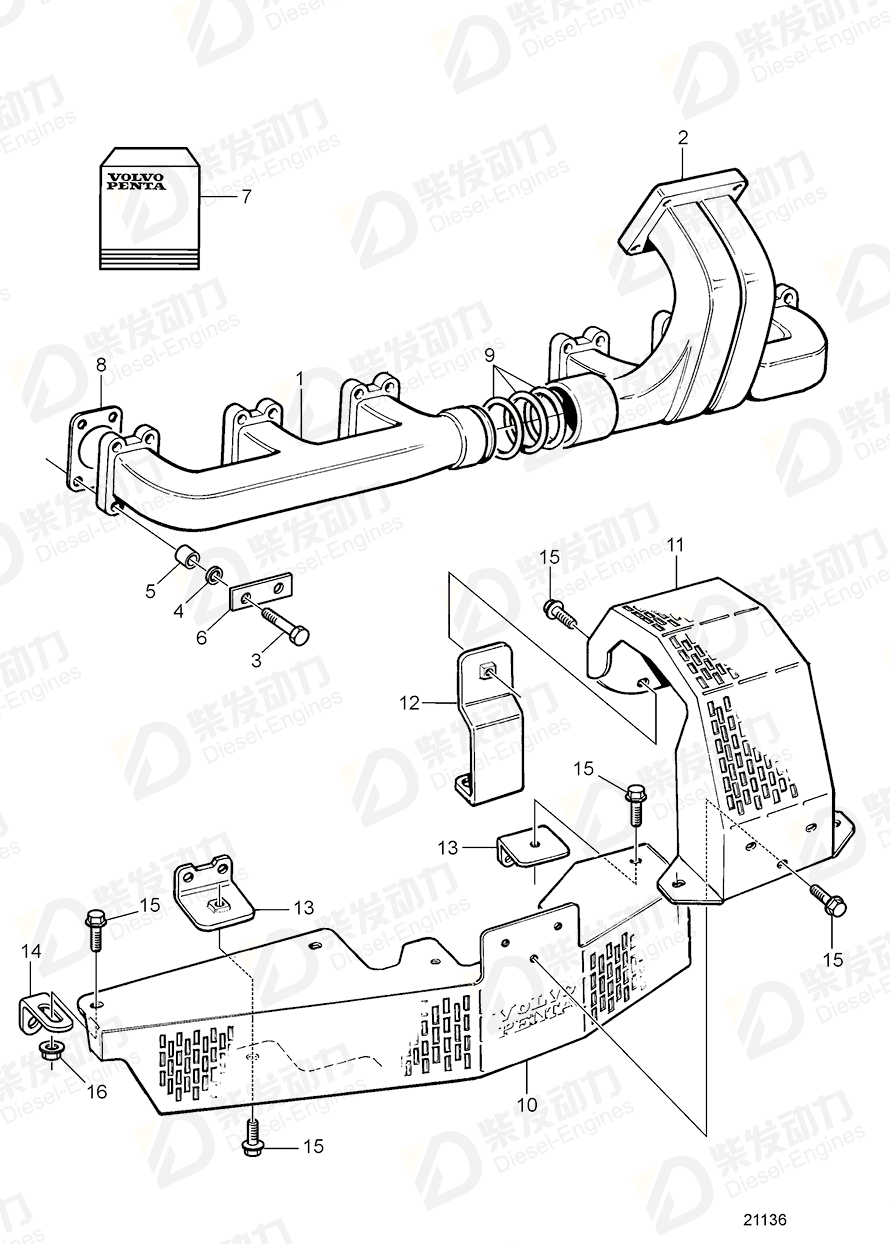

| No. | Part Name | Part Number | Qty | Description |
| 1 | Exhaust manifold | 8194525 | 1 | (8194048) |
| 2 | Exhaust manifold | 8194524 | 1 | |
| 3 | Hexagon screw | 945698 | 24 | |
| 4 | Washer | 941744 | 24 | |
| 5 | Spacer sleeve | 422217 | 12 | |
| 6 | Tab washer | 966717 | 12 | |
| 7 | Gasket kit | 876722 | 1 | See group 99 |
| 8 | Gasket | 479107 | 6 | |
| 9 | Sealing ring | 471219 | 1 | |
| 9 | Sealing ring | 1545109 | 2 | |
| 10 | Radiation shield | 3826361 | 1 | SN2100298533- |
| 11 | Radiation shield | 3826362 | 1 | SN2100298533- |
| 12 | Bracket | 3826364 | 1 | SN2100298533- |
| 13 | Bracket | 3826363 | 1 | SN2100298533- |
| 14 | Bracket | 965556 | 1 | |
| 15 | Flange screw | 967949 | 12 | |
| 16 | Flange lock nut | 949278 | 1 |
| Item | Part Name | Part No. |
| 12 | Bracket 3826364 | 3826364 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE TAD1030P TAD1030V TD1010G, TWD1010G |
| Application | Exhaust Pipe Exhaust Pipe: A Exhaust Pipe: B |
| Specification | |
| Descriptions | SN2100298533- |
Related Products
Tags: Bracket, Volvo Penta, 3826364
