Bracket 3830480

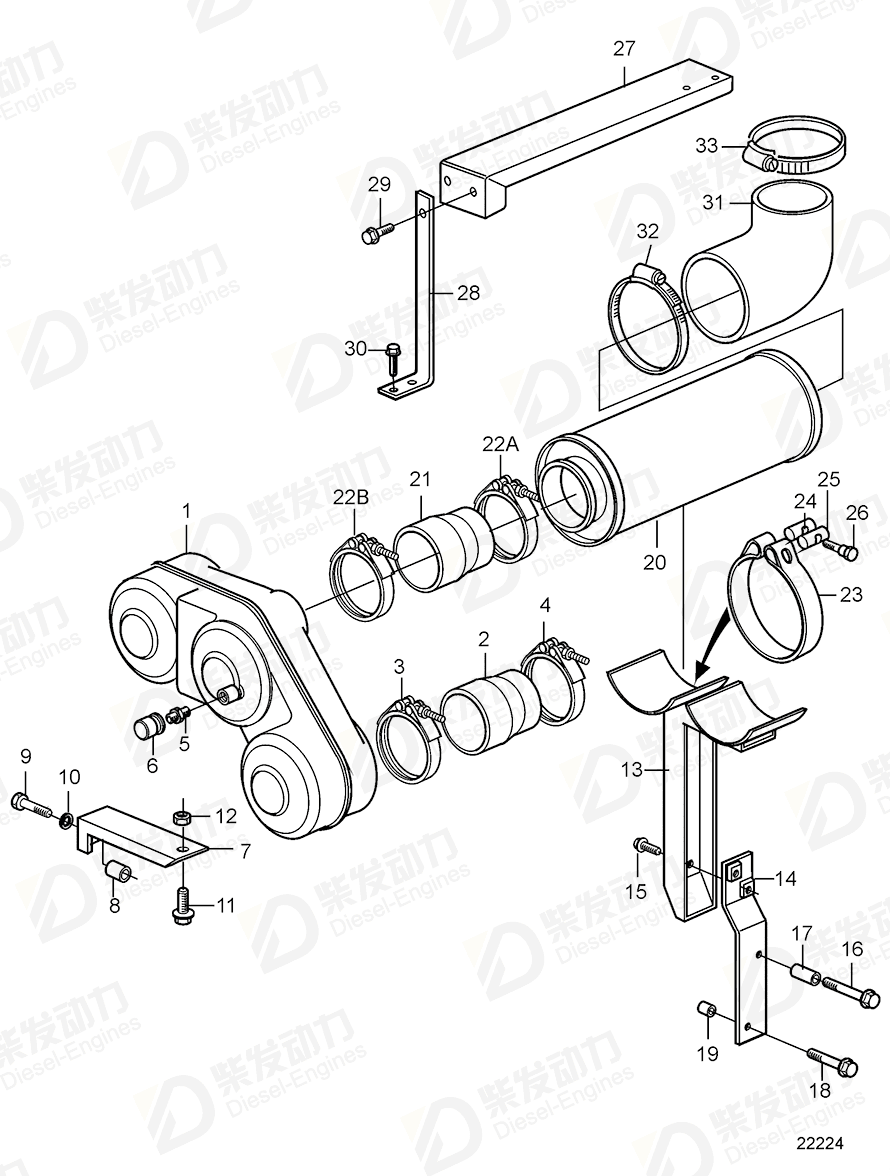

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 3825971 | 1 | |
| 2 | Rubber fitting | 847685 | 1 | |
| 3 | Hose clamp | 1544734 | 1 | |
| 4 | Hose clamp | 1544732 | 1 | |
| 5 | Nipple | 191095 | 1 | |
| 6 | Pressure drop indica | 3828765 | 1 | |
| 7 | Bracket | 3830480 | 1 | (862754) |
| 8 | Spacer sleeve | 852660 | 2 | |
| 9 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 10 | Washer | 955894 | 2 | |
| 11 | Flange screw | 984734 | 1 | |
| 12 | Flange lock nut | 990950 | 1 | |
| 13 | Bracket | 862694 | 1 | |
| 14 | Bracket | 862693 | 1 | |
| 15 | Flange screw | 984735 | 2 | |
| 16 | Flange screw | 984741 | 1 | L=70mm |
| 17 | Spacer sleeve | 826652 | 1 | |
| 18 | Flange screw | 994385 | 1 | L=45mm |
| 19 | Spacer sleeve | 862713 | 1 | |
| 20 | Air filter | 3825778 | 2 | |
| 21 | Rubber fitting | 836334 | 2 | For 804961., D=105mm-113mm |
| 23 | Tensioning band | 821028 | 2 | |
| 24 | Clevis pin, threaded | 31404 | 2 | |
| 25 | Pin | 31405 | 2 | |
| 26 | Hexagon screw | 31406 | 2 | |
| 27 | Radiation shield | 3829338 | 1 | |
| 28 | Bracket | 862947 | 1 | |
| 29 | Flange screw | 967949 | 2 | |
| 30 | Flange screw | 984743 | 2 | |
| 31 | Manifold | 865197 | 1 | For air intake from outside the engine room |
| 32 | Hose clamp | 979654 | 1 | |
| 33 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| 22A | Hose clamp | 1544733 | 2 | |
| 22B | Hose clamp | 1544734 | 2 |
| Item | Part Name | Part No. |
| 7 | Bracket 3830480 | 3830480 |
| Details | |
| Engine model | TAD1631G, TAD1631GE TWD1630V |
| Application | Air Filter External Cooling System, Air Filter |
| Specification | |
| Descriptions | (862754) |
