Bracket 3831494

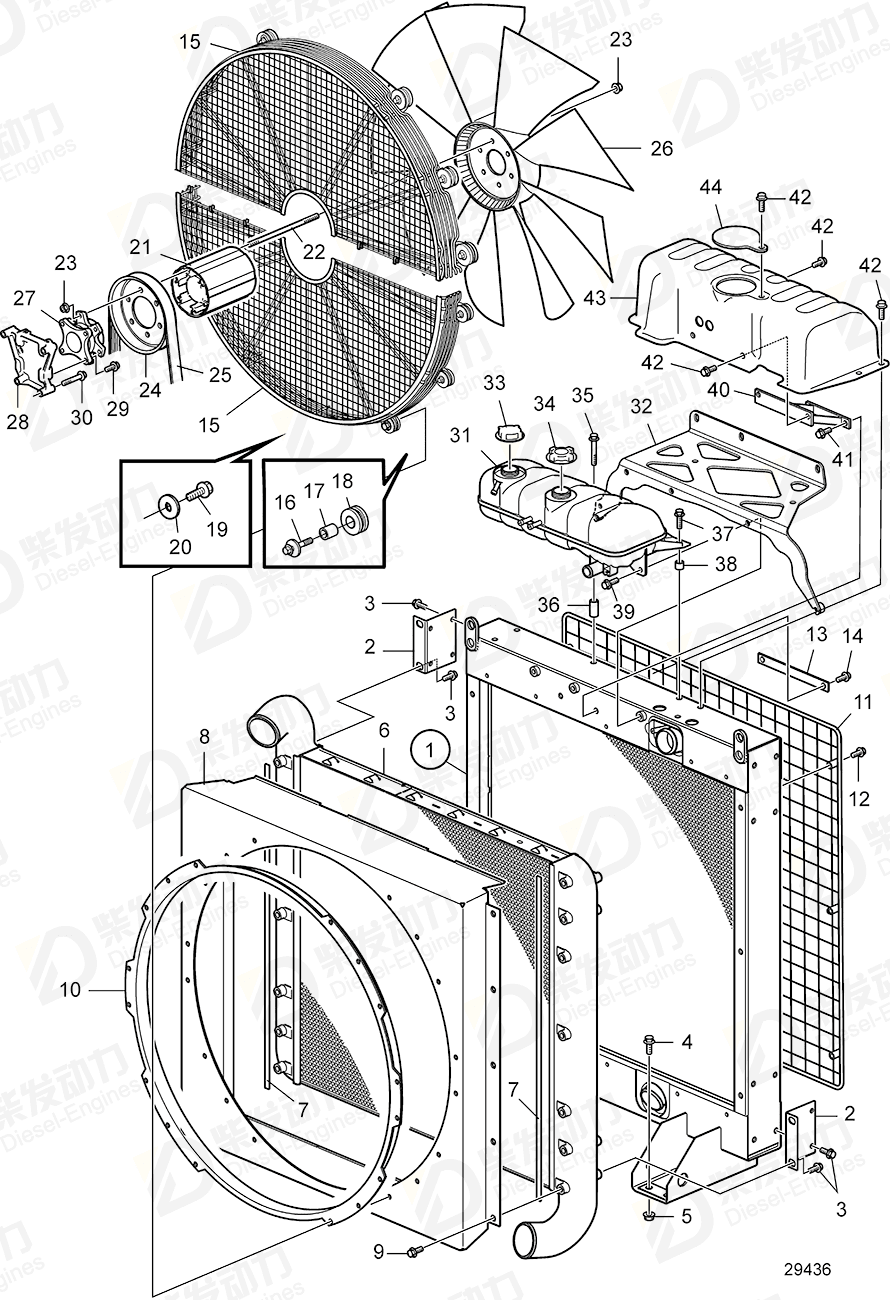

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 21146121 | 1 | |
| 2 | Bracket | 40005104 | 1 | |
| 4 | Flange screw | 946817 | 8 | |
| 5 | Flange nut | 990942 | 8 | |
| 6 | Charge air cooler | 40005102 | 1 | |
| 8 | Fan shroud | 40005100 | 1 | |
| 9 | Flange screw | 984733 | 16 | |
| 10 | Fan ring | 3827612 | 1 | |
| 11 | Radiator protector | 3827871 | 1 | |
| 12 | Flange screw | 994385 | 6 | L=45mm |
| 13 | Emblem | 846118 | 1 | |
| 14 | Six point socket scr | 969514 | 2 | |
| 15 | Fan guard | 3812223 | 2 | Not for Visco fan, Replaced by 78467466 |
| 15 | Fan guard | 21206539 | 2 | SN-20131725003, For Visco fan and all other fans, Replaced by 78467466 |
| 15 | Fan guard | 78467466 | 2 | |
| 16 | Flange screw | 22147274 | 6 | |
| 17 | Spacer sleeve | 845988 | 6 | |
| 18 | Rubber damper | 21860181 | 6 | |
| 19 | Flange screw | 984734 | 12 | |
| 20 | Washer | 976944 | 12 | |
| 21 | Fan hub | 3595252 | 1 | |
| 22 | Stud | 969199 | 6 | |
| 23 | Flange nut | 990941 | 12 | |
| 24 | Pulley | 3586365 | 1 | Ratio 1:1,14 |
| 24 | Pulley | 3807446 | 1 | Ratio 1:1,07 |
| 24 | Pulley | 3828043 | 1 | Ratio 1:0,84, Not for TAD1374VE, TAD1375VE |
| 24 | Pulley | 3829958 | 1 | Ratio 1:0,99 |
| 25 | Fan belt | 3594802 | 1 | For Pulley 3586365 |
| 25 | Fan belt | 3594804 | 1 | For pulley 3828043 |
| 25 | Fan belt | 3595371 | 1 | For pulley 3807446 |
| 25 | Fan belt | 3886349 | 1 | For pulley 3829958 |
| 25 | V-ribbed belt | 20430611 | 1 | For pulley 3586365, For engines equipped with an air compressor. |
| 26 | Fan | 3594168 | 1 | |
| 27 | Fan hub | 21924453 | 1 | |
| 28 | Bracket | 3886350 | 3 | |
| 29 | Flange screw | 984754 | 4 | |
| 30 | Flange screw | 984757 | 4 | |
| 31 | Expansion tank | 1674916 | 1 | |
| 32 | Bracket | 23075065 | 1 | |
| 33 | Pressure cap | 1674083 | 1 | |
| 34 | Filler cap | 1674922 | 1 | |
| 35 | Flange screw | 984759 | 1 | |
| 36 | Spacer sleeve | 3830771 | 1 | |
| 37 | Flange screw | 990862 | 1 | |
| 38 | Spacer sleeve | 843028 | 1 | |
| 39 | Flange screw | 984751 | 3 | |
| 40 | Bracket | 3831494 | 1 | |
| 41 | Flange screw | 984751 | 2 | |
| 42 | Flange screw | 984733 | 9 | |
| 43 | Protecting casing | 3839262 | 1 | |
| 44 | Cover | 3830539 | 1 |
| Item | Part Name | Part No. |
| 40 | Bracket 3831494 | 3831494 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1240GE, TAD1241GE TAD1242GE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1240VE |
| Application | Cooling System Expansion Tank for Pusher Fan Expansion Tank for Suction Fan Fan and Fan Ring. D=890mm. Pushing. With Radiator Radiator and Fan Radiator and Fan. Power Pac Radiator and Fan. Pusher |
