Bracket 3886573

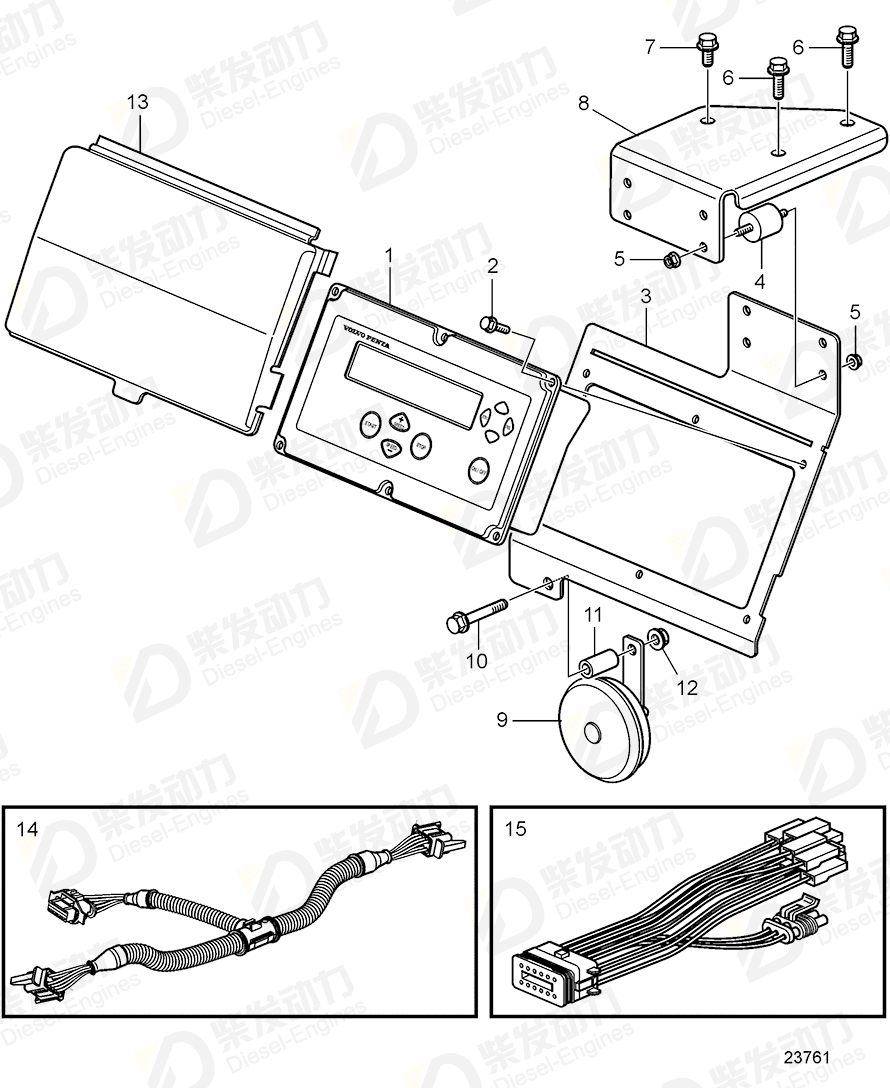

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Control unit |
881776 |
1 |
Replaced by control unit 12330500 |
| 1 |
Software |
3587268 |
1 |
Warehouse programming. This p/n can not be ordered, but will be used for invoicing. |
| 1 |
Software |
3587269 |
1 |
Vodia-programming. This p/n can not be ordered, but will be used for invoicing. |
| 1 |
Control unit |
12330500 |
1 |
Warehouse programming. This p/n can not be ordered, but will be used for invoicing. |
| 2 |
Six point socket scr |
969407 |
6 |
|
| 3 |
Bracket |
3886573 |
1 |
|
| 4 |
Vibration damper |
3574797 |
4 |
|
| 5 |
Flange nut |
990939 |
4 |
|
| 6 |
Flange screw |
984735 |
2 |
|
| 7 |
Flange screw |
984733 |
1 |
|
| 8 |
Bracket |
3886580 |
1 |
|
| 9 |
Horn |
874050 |
1 |
24V, (872874) |
| 10 |
Flange screw |
973924 |
1 |
|
| 11 |
Spacer sleeve |
848229 |
1 |
L=31mm |
| 12 |
Flange nut |
990940 |
1 |
|
| 13 |
Protecting casing |
3588333 |
1 |
|
| 14 |
Wiring harness |
21930866 |
1 |
Cable for DCU |
| 15 |
Wiring harness |
3807270 |
1 |
|
| Item |
Part Name |
Part No. |
| 3 |
Bracket 3886573 |
3886573 |
| Details |
| Engine model |
TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE |
| Application |
Control Panel, DCU |
Tags:
Bracket,
Volvo Penta,
3886573
