Bracket 468005

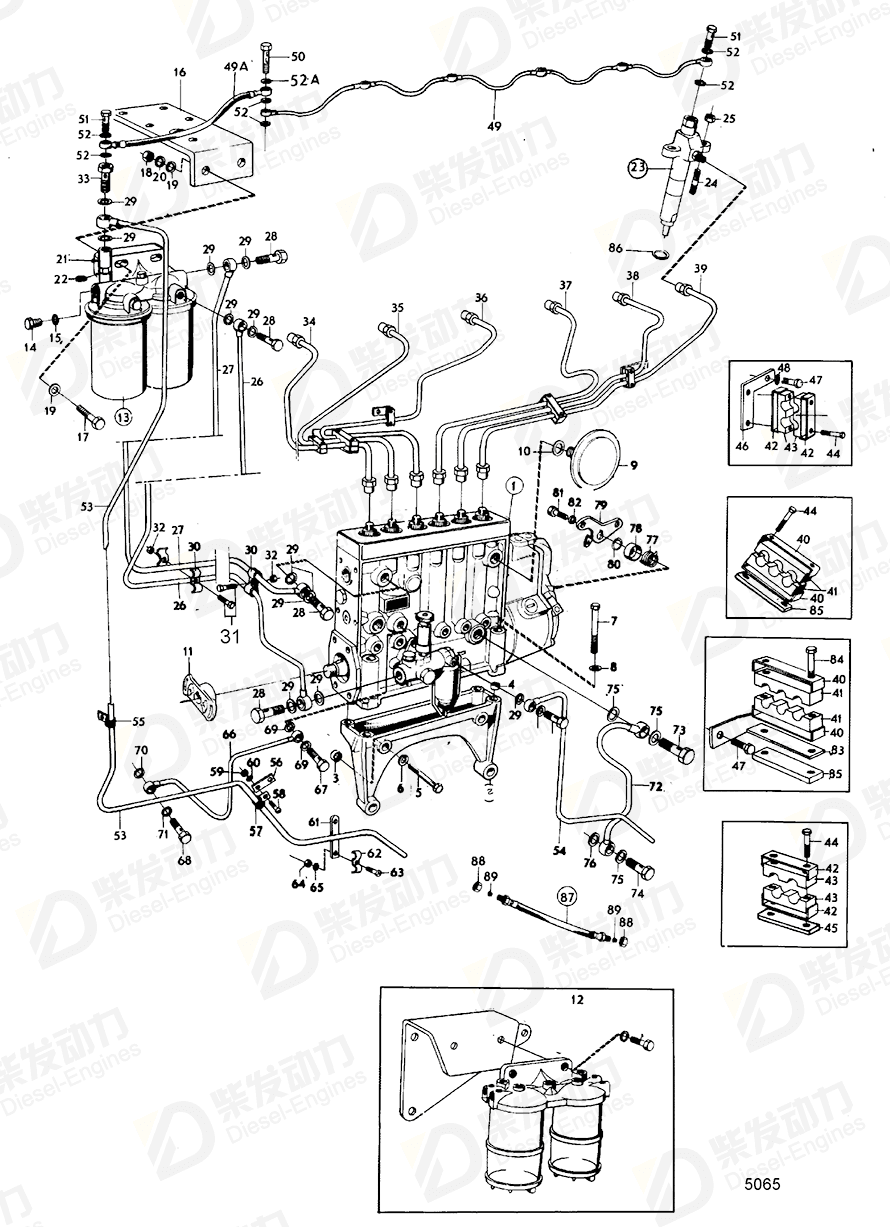

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 241699 | 1 | Repl by 836910 |
| 1 | Injection pump | 836910 | 1 | MO3926/XXXXX- |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Pressure equalizer | 466398 | 1 | |
| 10 | Gasket | 957178 | 1 | |
| 13 | Filter housing | 241672 | 1 | Replaced by 1 PC 843512,1 ST 191026., Classed engine,not included in fuel feed pump. |
| 14 | Plug | 960630 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 15 | Gasket | 957178 | 2 | |
| 17 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 17 | Hexagon screw | 955537 | 2 | |
| 18 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 19 | Washer | 940097 | 4 | |
| 20 | Spring washer | 942336 | 2 | |
| 21 | Overflow valve | 35096 | 1 | |
| 22 | Gasket | 957178 | 1 | |
| 23 | Injector | 468217 | 6 | |
| 24 | Stud | 941928 | 12 | |
| 25 | Nut | 417110 | 12 | |
| 26 | Fuel pipe | 823522 | 1 | Included in fuel injection pump |
| 26 | Fuel pipe | 836781 | 1 | |
| 27 | Fuel pipe | 823523 | 1 | Included in fuel injection pump |
| 27 | Fuel pipe | 836782 | 1 | |
| 28 | Hollow screw | 25167 | 5 | |
| 29 | Gasket | 957178 | 12 | |
| 30 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 31 | Cross recessed screw | 950047 | 2 | |
| 32 | Hexagon nut | 955825 | 2 | Late type |
| 33 | Hollow screw | 16496 | 1 | |
| 34 | Tube | 423344 | 1 | |
| 35 | Tube | 423345 | 1 | |
| 36 | Tube | 423346 | 1 | |
| 37 | Tube | 423347 | 1 | |
| 38 | Tube | 423348 | 1 | |
| 39 | Tube | 423349 | 1 | |
| 40 | Attaching clamp | 414346 | 4 | |
| 41 | Attaching clamp | 414347 | 4 | |
| 42 | Attaching clamp | 414344 | 6 | |
| 43 | Attaching clamp | 414345 | 6 | |
| 44 | Hexagon screw | 955247 | 8 | |
| 45 | Nut plate | 414736 | 1 | |
| 46 | Bracket | 468005 | 2 | |
| 47 | Hexagon screw | 940100 | 3 | |
| 48 | Spring washer | 941906 | 3 | |
| 49 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 50 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 51 | Hollow screw | 74033 | 1 | |
| 52 | Gasket | 957171 | 14 | |
| 53 | Fuel pipe | 824464 | 1 | MO-XXXXX/3687 |
| 53 | Fuel pipe | 836783 | 1 | MOXXXXX/3688 |
| 54 | Fuel pipe | 842656 | 1 | |
| 55 | Clamp | 942542 | 1 | |
| 56 | Anchorage | 821036 | 1 | |
| 57 | Clamp | 952625 | 1 | |
| 58 | Cross recessed screw | 950046 | 1 | |
| 59 | Hexagon nut | 955825 | 1 | Late type |
| 60 | Spring washer | 941906 | 1 | |
| 61 | Anchorage | 821625 | 1 | |
| 62 | Clamp | 941492 | 1 | |
| 63 | Cross recessed screw | 950046 | 1 | |
| 64 | Hexagon nut | 955825 | 1 | Late type |
| 65 | Spring washer | 941906 | 1 | |
| 66 | Feed line | 423393 | 1 | |
| 67 | Hollow screw | 48634 | 1 | |
| 68 | Hollow screw | 942081 | 1 | |
| 69 | Gasket | 957173 | 2 | |
| 70 | Gasket | 18666 | 1 | |
| 71 | Gasket | 11994 | 1 | |
| 72 | Return pipe | 422246 | 1 | |
| 73 | Hollow screw | 25167 | 1 | |
| 74 | Hollow screw | 954394 | 1 | |
| 75 | Gasket | 957178 | 3 | |
| 76 | Gasket | 957181 | 1 | |
| 77 | Spring | 239056 | 1 | Replaced by 837364. |
| 78 | Cover | 239059 | 1 | Replaced by 837364 |
| 79 | Lever | 821134 | 1 | |
| 80 | Washer | 120265 | 1 | |
| 81 | Hexagon screw | 955637 | 1 | |
| 82 | Spring washer | 941906 | 1 | |
| 83 | Bracket | 422400 | 1 | |
| 84 | Hexagon screw | 955249 | 2 | |
| 85 | Nut plate | 414735 | 2 | |
| 86 | Sealing ring | 468210 | 6 | |
| 87 | Fuel hose | 845450 | 2 | (880618) |
| 88 | Fitting nut | 956983 | 4 | |
| 89 | Ferrule | 956969 | 4 | |
| 49A | Fuel hose | 837794 | 1 | D42A PP spec. 16053, 867638., Late type |
| 52A | Gasket | 957171 | 1 |
| Item | Part Name | Part No. |
| 46 | Bracket 468005 | 468005 |
| Details | |
| Engine model | D120A TD120A TD120C TD120G TD120GG TID120FG |
| Application | Fuel System Fuel System, Standard Model: A Fuel System, Standard Model: B FUEL SYSTEM: A FUEL SYSTEM: B |
| Specification | |
| Descriptions | EARLY TYPE |
