Bracket 468772

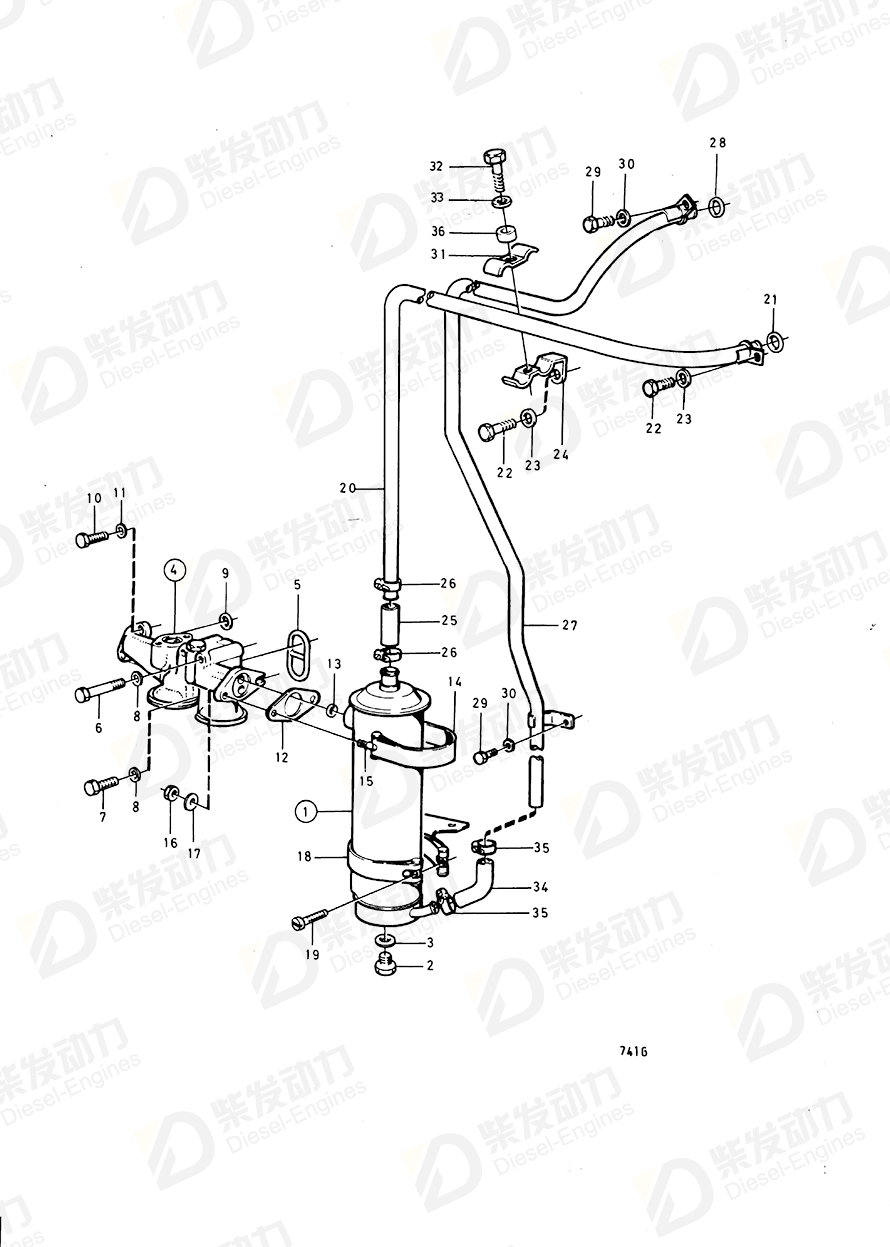

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 468612 | 1 | |
| 2 | Plug | 180759 | 1 | |
| 3 | Gasket | 907132 | 1 | |
| 4 | Oil filter housing | 470979 | 1 | Compl repl by 470983 |
| 5 | Gasket | 469486 | 1 | |
| 6 | Hexagon screw | 942529 | 2 | |
| 7 | Hexagon screw | 940115 | 2 | |
| 8 | Spring washer | 942336 | 4 | |
| 9 | O-ring | 949659 | 1 | |
| 10 | Hexagon screw | 955525 | 2 | |
| 11 | Spring washer | 941907 | 1 | |
| 12 | Guide washer | 468652 | 1 | |
| 13 | Sealing ring | 469483 | 2 | (422581) |
| 14 | Tensioning band | 1545255 | 1 | Late type |
| 15 | Stud | 924072 | 2 | |
| 16 | Hexagon nut | 955782 | 2 | |
| 17 | Washer | 960141 | 2 | |
| 18 | Tensioning band | 1545256 | 1 | (468659) early type |
| 19 | Hexagon screw | 1545257 | 1 | Late type |
| 20 | Tube | 468774 | 1 | SN-XXXXXXXXXX/210691 |
| 21 | Sealing ring | 470527 | 1 | |
| 22 | Hexagon screw | 940113 | 2 | |
| 23 | Spring washer | 941907 | 2 | |
| 24 | Bracket | 468772 | 1 | SN-XXXXXXXXXX/210691 |
| 25 | Rubber hose | 944386 | 1 | |
| 26 | Hose clamp | 943475 | 2 | |
| 27 | Tube | 470419 | 1 | Repl by pipe 479612, pipe 479614, bracket 479616., SN-XXXXXXXXXX/210691 |
| 28 | Sealing ring | 470527 | 1 | |
| 29 | Hexagon screw | 940113 | 2 | |
| 30 | Spring washer | 941907 | 2 | |
| 31 | Attaching plate | 468684 | 1 | |
| 32 | Hexagon screw | 940161 | 1 | For engine with 40° angle of inclination, L=45mm |
| 33 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 34 | Cooling hose | 468706 | 1 | |
| 35 | Hose clamp | 943475 | 2 | |
| 36 | Spacer sleeve | 470721 | 1 |
| Item | Part Name | Part No. |
| 24 | Bracket 468772 | 468772 |
| Details | |
| Engine model | TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD120C TD120G TD120HPP TID120FG TID120HPP TID121FG |
| Application | Oil Cooler Oil Cooler and Installation Components |
| Specification | |
| Descriptions | SN-XXXXXXXXXX/210691 |
