Bracket 820535

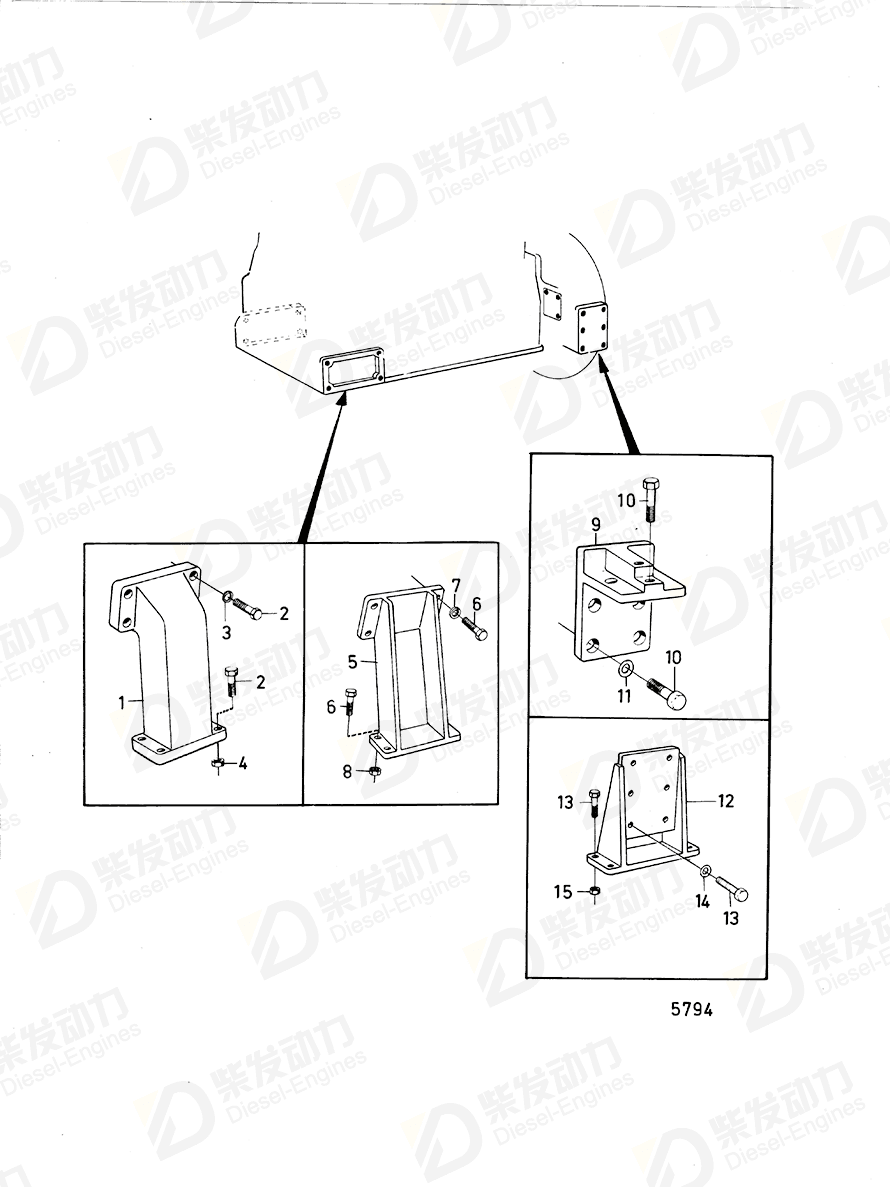

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 820510 | 2 | D70B spec.867055 alt spec.867277.D70BK, TD70B |
| 2 | Hexagon screw | 955564 | 4 | |
| 2 | Hexagon screw | 955565 | 8 | Temporary production., L=57mm |
| 2 | Hexagon screw | 955568 | 4 | For bracket 829839 with 8 holes., L=76mm |
| 3 | Spring washer | 940280 | 8 | |
| 4 | Lock nut | 950356 | 8 | Temporary production. |
| 5 | Bracket | 820535 | 2 | Spec.867056 |
| 6 | Hexagon screw | 955561 | 4 | |
| 6 | Hexagon screw | 955565 | 4 | Temporary production., L=57mm |
| 7 | Spring washer | 940280 | 8 | |
| 8 | Lock nut | 950356 | 8 | Temporary production. |
| 9 | Bracket | 821685 | 2 | |
| 10 | Hexagon screw | 955591 | 2 | Pusher type, For tropic radiator |
| 10 | Hexagon screw | 960737 | 8 | |
| 11 | Spring washer | 940280 | 8 | |
| 12 | Engine bracket | 843068 | 2 | Power Pack |
| 12 | Engine bracket | 843134 | 2 | |
| 13 | Hexagon screw | 955561 | 12 | |
| 14 | Spring washer | 940280 | 12 |
| Item | Part Name | Part No. |
| 5 | Bracket 820535 | 820535 |
| Details | |
| Engine model | D70B D70CRC, TD70CRC TD60D-83 TD70G-83 TID60D TID60DG TID70G |
| Application | Engine Suspension Engine Suspension: A ENGINE SUSPENSION: B ENGINE SUSPENSION: C |
| Specification | |
| Descriptions | ALT Spec.867056 |
