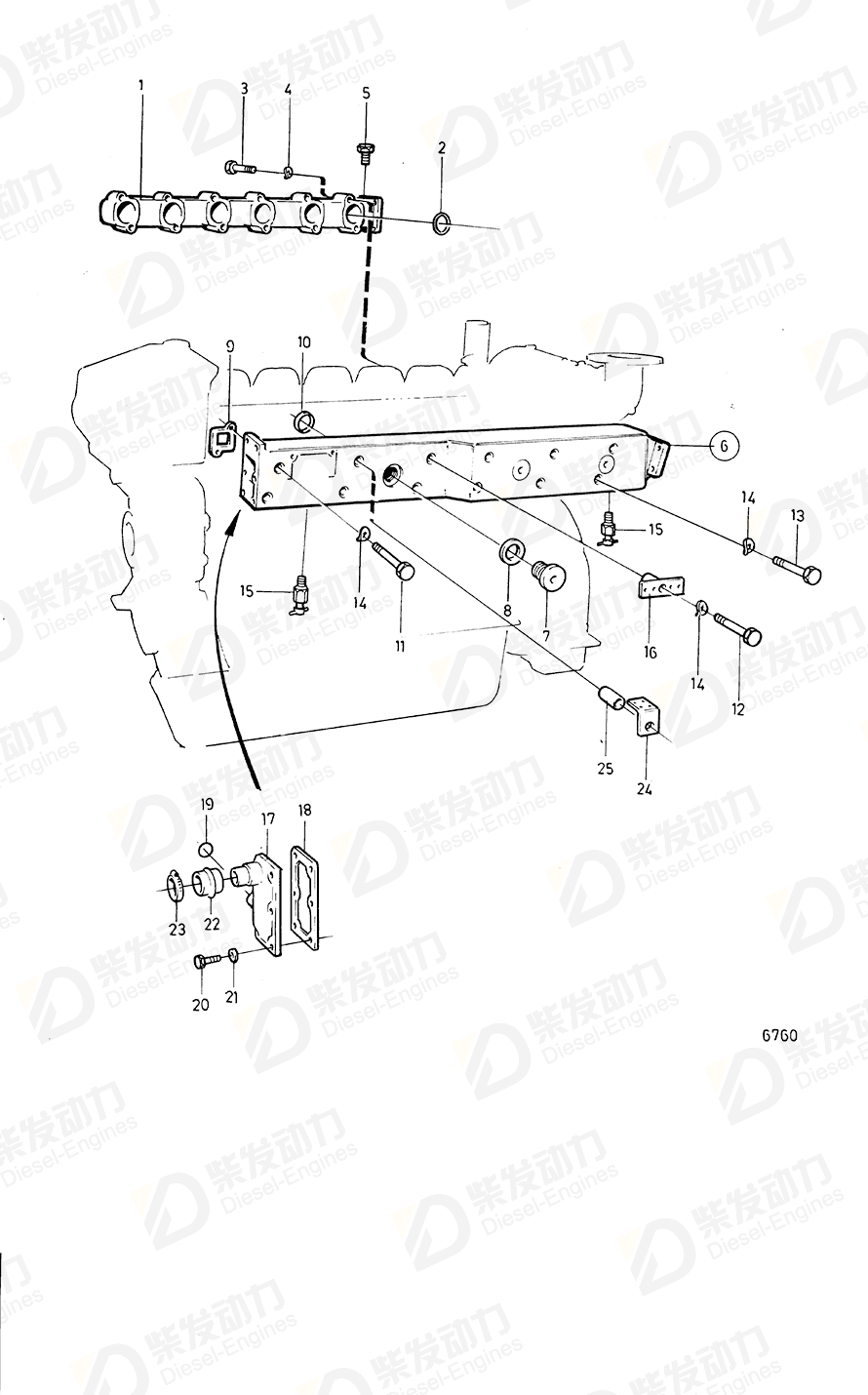

Bracket 822546
| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 820831 | 1 | |
| 2 | Rubber ring | 423174 | 6 | |
| 3 | Hexagon screw | 955529 | 11 | |
| 4 | Spring washer | 941907 | 11 | |
| 5 | Plug | 191026 | 1 | |
| 6 | Exhaust pipe | 836841 | 1 | |
| 7 | Plug | 467367 | 12 | |
| 8 | Gasket | 469328 | 12 | |
| 9 | Gasket | 468647 | 6 | |
| 10 | Sealing ring | 822575 | 6 | |
| 11 | Hexagon screw | 942547 | 4 | |
| 12 | Hexagon screw | 192058 | 2 | |
| 12 | Hexagon screw | 959800 | 1 | See group 2B |
| 13 | Hexagon screw | 102040 | 1 | |
| 13 | Hexagon screw | 941252 | 5 | (959800) |
| 14 | Spring washer | 942336 | 12 | |
| 15 | Shut-off cock | 949918 | 2 | (82745) |
| 16 | Bracket | 822546 | 1 | |
| 24 | Attaching plate | 844659 | 2 | See group 2B |
| 25 | Spacer ring | 912130 | 2 |
| Item | Part Name | Part No. |
| 16 | Bracket 822546 | 822546 |
| Details | |
| Engine model | D120A TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | Classed Fuel System: A Classed Fuel System: B Fuel System Fuel System: A Fuel System: B Fuel System: C Induction and Exhaust Manifold with Installation Components Induction and Exhaust Manifold with Installation Components: A Induction and Exhaust Manifold with Installation Components: B Induction and Exhaust Manifold with Installation Components: C Induction and Exhaust Manifold with Installation Components: D Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B Induction- and Exhaust Manifold, Classed Engine: A Induction- and Exhaust Manifold, Classed Engine: B |
| Specification | |
| Descriptions | D70B,classed engine., See group 2C Not when double sheated pipes are mounted., See group 2C See group 2B See group 2C |
