Bracket 823584

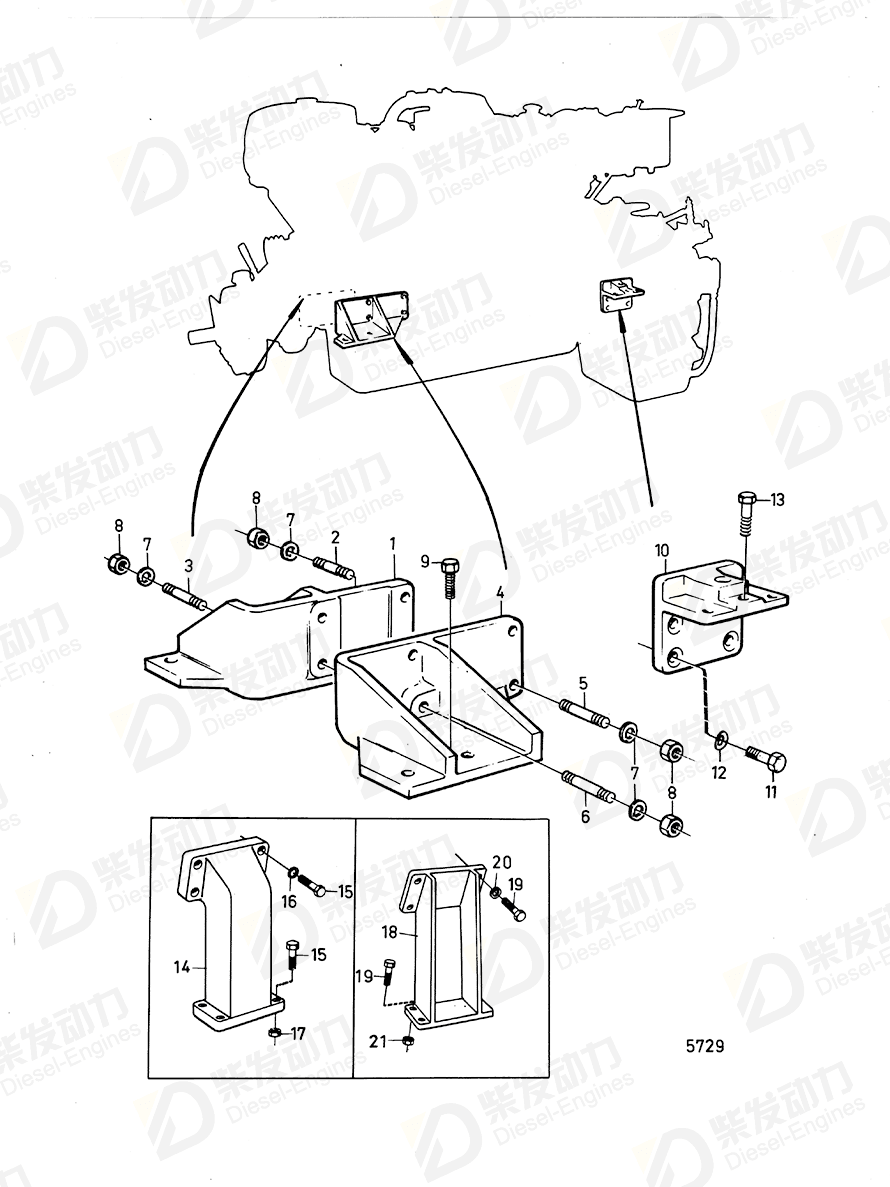

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 820633 | 1 | S.B |
| 2 | Stud | 953351 | 3 | L = 70 MM |
| 3 | Stud | 953346 | 1 | |
| 4 | Bracket | 823584 | 1 | P |
| 5 | Stud | 953346 | 3 | |
| 6 | Stud | 953351 | 1 | L = 70 MM |
| 7 | Spring washer | 941911 | 8 | |
| 8 | Hexagon nut | 955828 | 8 | |
| 9 | Hexagon screw | 955561 | 2 | |
| 10 | Bracket | 821685 | 2 | |
| 11 | Hexagon screw | 960737 | 8 | |
| 12 | Spring washer | 940280 | 8 | |
| 13 | Hexagon screw | 955591 | 2 | Pusher type, For tropic radiator |
| 14 | Bracket | 820519 | 2 | Temporary production |
| 15 | Hexagon screw | 955565 | 8 | Temporary production., L=57mm |
| 16 | Spring washer | 941911 | 8 | |
| 17 | Lock nut | 950356 | 8 | Temporary production. |
| 18 | Engine bracket | 821106 | 2 | Forged pistons. |
| 19 | Hexagon screw | 955561 | 8 | |
| 19 | Hexagon screw | 955577 | 8 | Forged pistons., L=38mm |
| 20 | Spring washer | 941911 | 8 | |
| 21 | Lock nut | 950356 | 8 | Temporary production. |
| Item | Part Name | Part No. |
| 4 | Bracket 823584 | 823584 |
| Details | |
| Engine model | D100BHC TAD120CHC TAD121CHC TD100AHC TD100CHC TD120AHC, TAD120AHC, TAD120BHC TD120BHC TD121CHC |
| Application | Engine Suspension ENGINE SUSPENSION: A ENGINE SUSPENSION: C |
| Specification | |
| Descriptions | P |
