Bracket 824187

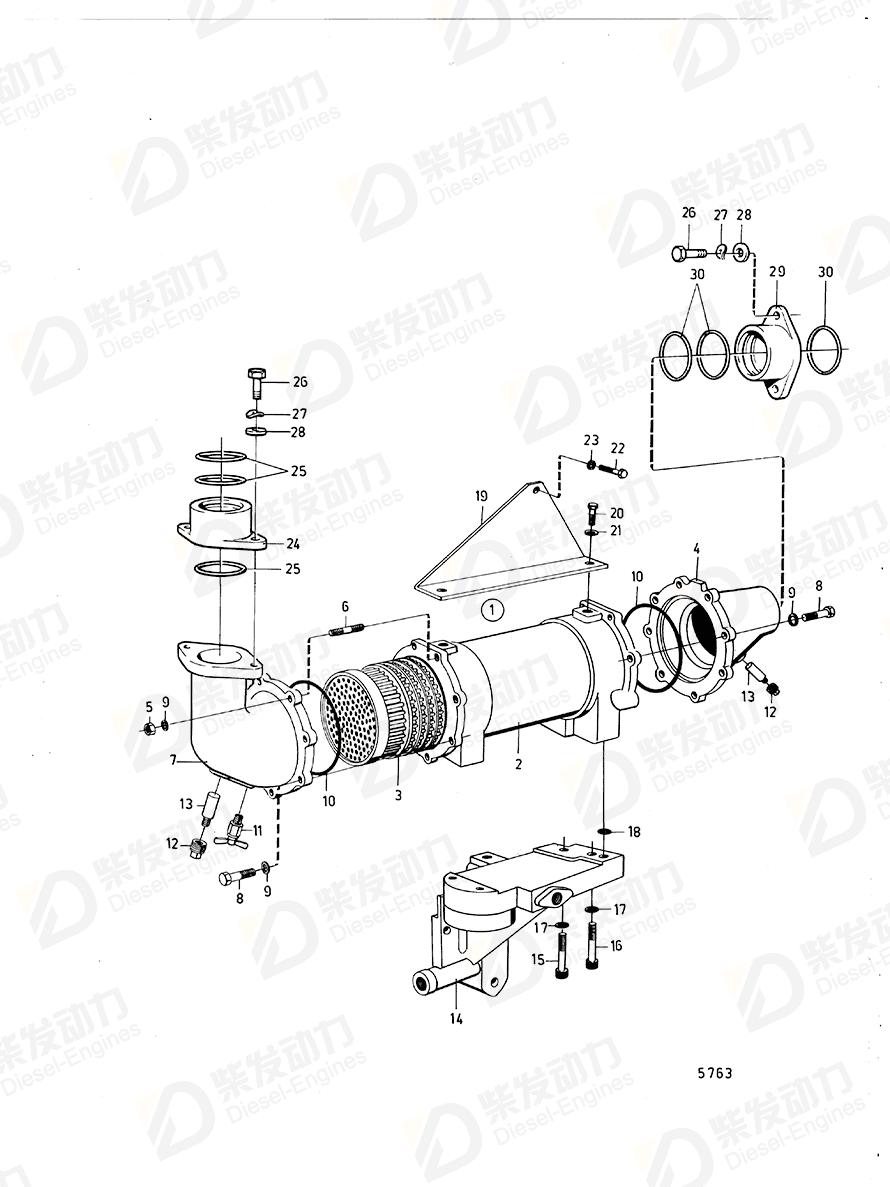

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 844101 | 1 | |
| 2 | Housing | 824191 | 1 | |
| 3 | Insert | 813885 | 1 | |
| 4 | End cover | 843580 | 1 | |
| 5 | Hexagon nut | 955833 | 1 | |
| 6 | Stud | 953224 | 1 | |
| 7 | End cover | 843821 | 1 | |
| 8 | Hexagon screw | 955514 | 15 | L = 25 MM |
| 9 | Spring washer | 941906 | 16 | |
| 10 | O-ring | 925027 | 2 | |
| 11 | Shut-off cock | 949918 | 1 | (82745) |
| 12 | Plug | 800475 | 2 | |
| 13 | Zinc electrode | 800476 | 2 | |
| 14 | Bracket | 824187 | 1 | |
| 14 | Selector valve, bracket with shifting valve | 824199 | 1 | See group 2B |
| 15 | Hex. socket screw | 956571 | 3 | SEE GROUP 2B |
| 16 | Hex. socket screw | 956572 | 1 | SEE GROUP 2B |
| 17 | Gasket | 11992 | 4 | |
| 18 | O-ring | 960168 | 1 | |
| 19 | Bracket | 836011 | 1 | |
| 20 | Hexagon screw | 940100 | 2 | |
| 21 | Spring washer | 941906 | 2 | |
| 22 | Hexagon screw | 955533 | 1 | For engine with 40° angle of inclination, L=102mm |
| 23 | Spring washer | 941907 | 1 | |
| 24 | Pipe connection | 843565 | 1 | |
| 25 | O-ring | 925092 | 3 | |
| 26 | Hexagon screw | 955525 | 4 | |
| 27 | Spring washer | 941907 | 4 | |
| 28 | Washer | 191172 | 4 | Spec.867054, 867221. |
| 29 | Pipe connection | 843565 | 1 | |
| 30 | O-ring | 925092 | 3 |
| Item | Part Name | Part No. |
| 14 | Bracket 824187 | 824187 |
| Details | |
| Engine model | TAD120AHC TD120AHC, TAD120AHC |
| Application | Oil Cooler with Installation Components Oil Filter with Installation Components |
| Specification | |
| Descriptions | See group 2A |
