Bracket 837394

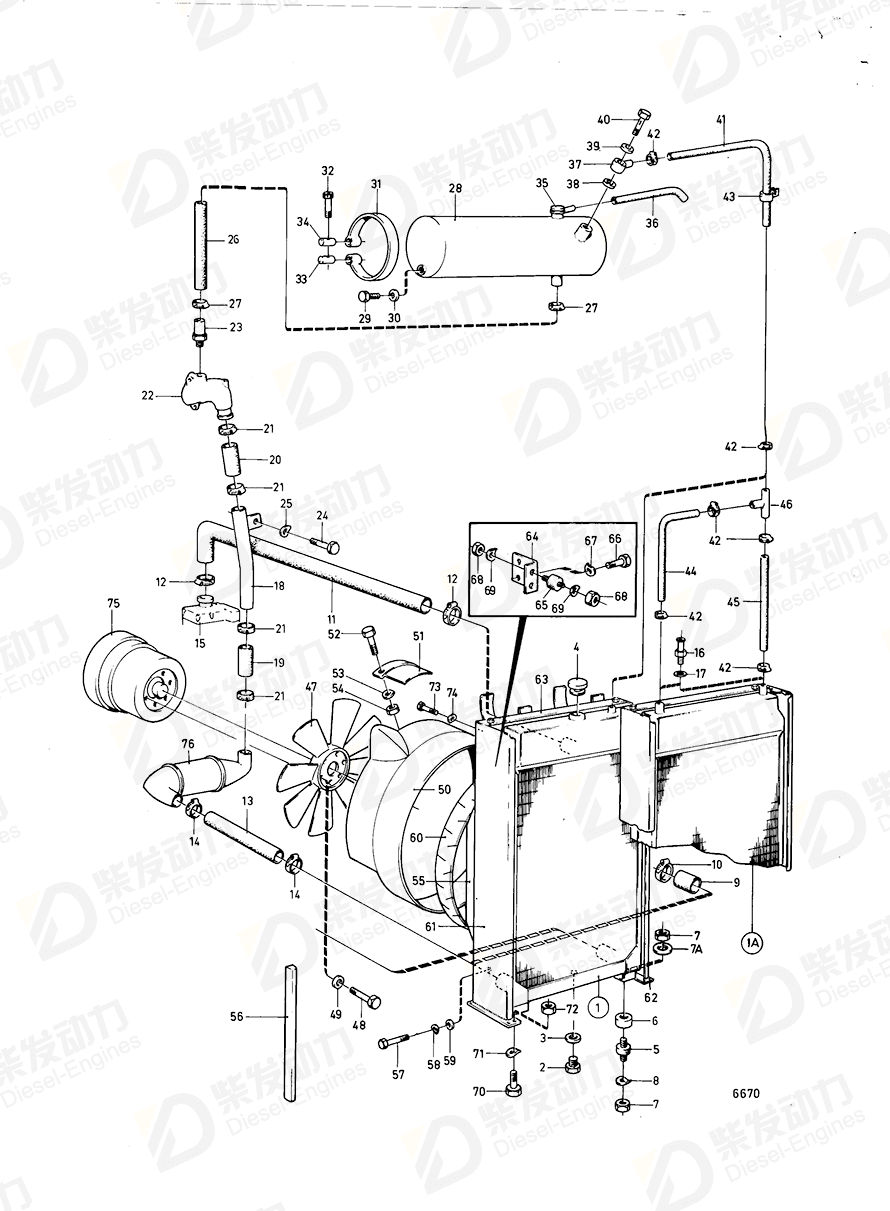

| No. | Part Name | Part Number | Qty | Description |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 957178 | 1 | |
| 5 | Rubber cushion | 833720 | 2 | |
| 6 | Sleeve | 807228 | 2 | |
| 7 | Hexagon nut | 955850 | 4 | |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Rubber cap | 824474 | 1 | |
| 10 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 11 | Hose | 836106 | 1 | |
| 12 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 13 | Rubber hose | 943372 | 1 | L=90mm |
| 14 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 15 | Upper section | 822344 | 1 | |
| 16 | Nipple | 960888 | 2 | Spec. 867131 |
| 17 | Gasket | 957177 | 2 | Spec. 867131. |
| 18 | Coolant pipe | 820639 | 1 | |
| 19 | Rubber hose | 943372 | 1 | L=90mm |
| 1A | Radiator | 836279 | 1 | Spec. 867131., Tropik-Tropic |
| 20 | Rubber hose | 943372 | 1 | L=90mm |
| 21 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 22 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 23 | Nipple | 941845 | 1 | |
| 24 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 25 | Spring washer | 942336 | 1 | |
| 26 | Rubber hose | 944386 | 1 | |
| 27 | Hose clamp | 994560 | 2 | |
| 28 | Expansion tank | 836199 | 1 | |
| 29 | Plug | 836268 | 1 | |
| 30 | Gasket | 957175 | 1 | |
| 31 | Tensioning band | 339958 | 2 | |
| 32 | Hexagon screw | 31406 | 2 | |
| 33 | Clevis pin, threaded | 31404 | 2 | |
| 34 | Pin | 31405 | 2 | |
| 35 | Cover | 334687 | 1 | |
| 36 | Hose | 192618 | 1 | L=1400mm |
| 37 | Banjo nipple | 836267 | 1 | |
| 38 | Gasket | 957178 | 1 | |
| 40 | Hollow screw | 944153 | 1 | |
| 41 | Hose | 13776 | 1 | L=450mm early type |
| 42 | Hose clamp | 994556 | 6 | |
| 43 | Clamp | 18387 | 2 | |
| 44 | Hose | 13776 | 1 | L=450mm early type |
| 45 | Hose | 13776 | 1 | L=450mm early type |
| 46 | Connector | 419446 | 1 | Spec. 867131. |
| 47 | Fan, suction type | 836039 | 1 | D=720mm |
| 47 | Fan, pusher type | 836045 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring, D=720mm |
| 48 | Hexagon screw | 955535 | 6 | |
| 49 | Washer | 940097 | 6 | |
| 50 | Fan guard | 824349 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 51 | Belt protector | 836007 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 52 | Hexagon screw | 955513 | 2 | |
| 53 | Washer | 955893 | 2 | |
| 54 | Lock nut | 950352 | 2 | |
| 55 | Fan shroud | 836282 | 1 | MO-XXXXX/98707 |
| 56 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 57 | Hexagon screw | 955270 | 14 | |
| 58 | Spring washer | 941906 | 14 | |
| 59 | Washer | 955893 | 14 | |
| 60 | Sealing cloth | 836055 | 1 | FOR SPEC VERSION 45CG |
| 61 | Bracket | 837393 | 1 | Spec. 867131 |
| 62 | Bracket | 837394 | 1 | Spec. 867131 |
| 63 | Cross stay | 837395 | 1 | Spec. 867131., L=1042mm |
| 64 | Anchorage | 837387 | 2 | |
| 65 | Cushion | 1228599 | 4 | |
| 66 | Hexagon screw | 940199 | 4 | |
| 67 | Spring washer | 941907 | 8 | |
| 68 | Hexagon nut | 955781 | 8 | |
| 69 | Spring washer | 941906 | 8 | |
| 70 | Hexagon screw | 940134 | 8 | |
| 71 | Spring washer | 941909 | 8 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 72 | Hexagon nut | 940157 | 8 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 73 | Hexagon screw | 940114 | 6 | |
| 74 | Spring washer | 942336 | 6 | |
| 7A | Washer | 955898 | 2 | Late type |
| Item | Part Name | Part No. |
| 62 | Bracket 837394 | 837394 |
| Details | |
| Engine model | TD120A TD120ARC TD120BRC TD121CRC |
| Application | Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components Radiator and Installation Components: B |
| Specification | |
| Descriptions | Classified engine, Left For 45CG, Left Spec. 867131 |
