Bracket 844498

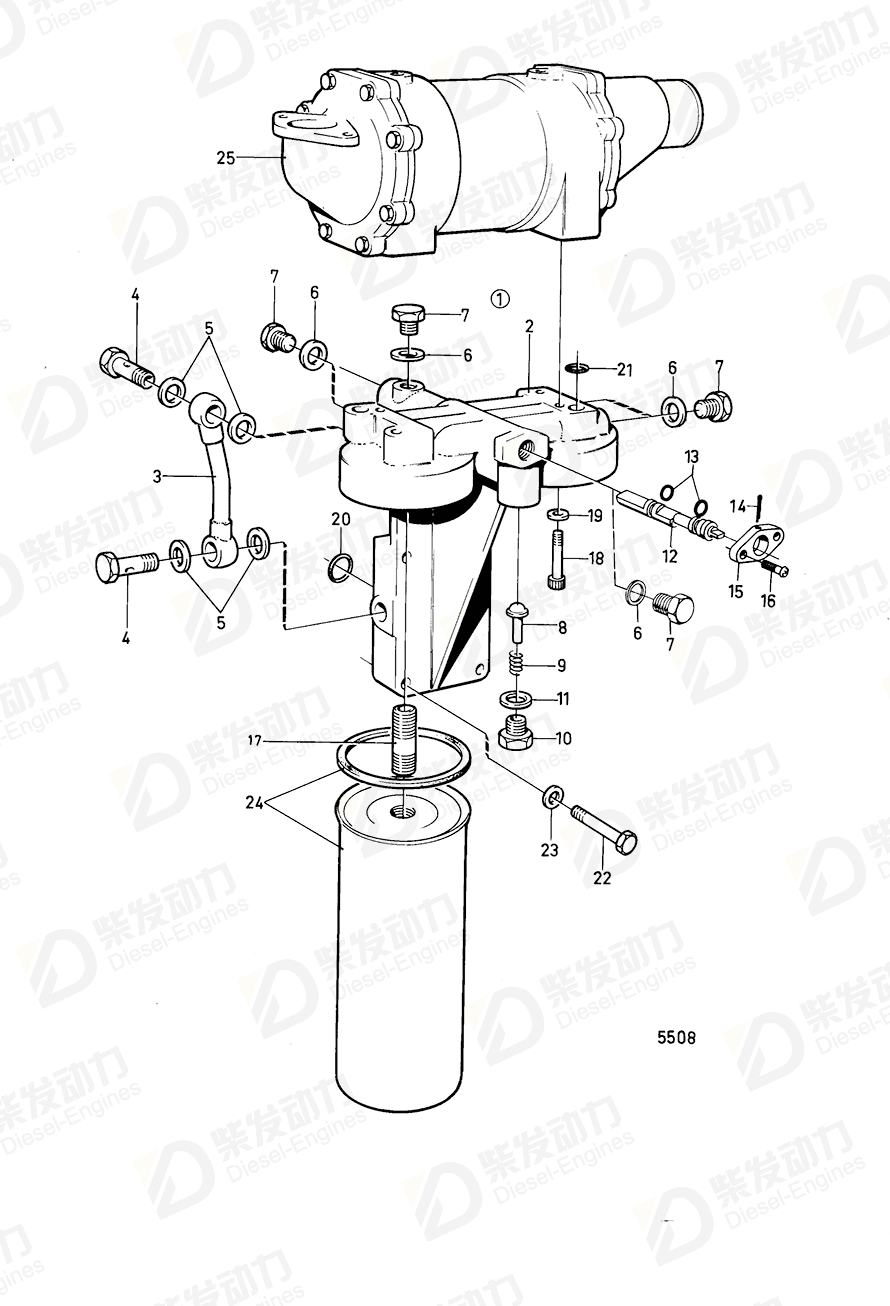

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 844498 | 1 | See group 2B |
| 2 | Bracket | 844497 | 1 | |
| 3 | Tube | 842831 | 1 | |
| 4 | Hollow screw | 191157 | 2 | |
| 5 | Gasket | 947627 | 4 | |
| 6 | Gasket | 947623 | 5 | |
| 7 | Plug | 914391 | 5 | EXCL. SPEC. 9882, 9961, 9982. |
| 8 | Valve cone | 471085 | 1 | |
| 9 | Compression spring | 466653 | 1 | |
| 10 | Plug | 466624 | 1 | |
| 11 | Gasket, plug | 18677 | 1 | |
| 12 | Valve peg | 824198 | 1 | |
| 13 | O-ring | 943177 | 2 | |
| 14 | Split pin | 907868 | 1 | |
| 15 | Flange | 824195 | 1 | |
| 16 | Cross recessed screw | 950022 | 2 | EXCL. SPEC. 9882, 9961, 9982 |
| 17 | Nipple | 466623 | 2 | |
| 18 | Hex. socket screw | 956572 | 4 | SEE GROUP 2B |
| 19 | Gasket | 11992 | 4 | |
| 20 | O-ring | 949657 | 2 | (925060) |
| 21 | O-ring | 949656 | 2 | |
| 22 | Hexagon screw | 955537 | 4 | |
| 23 | Spring washer | 942336 | 4 | |
| 24 | Oil filter | 466634 | 2 |
| Item | Part Name | Part No. |
| 1 | Bracket 844498 | 844498 |
| Details | |
| Engine model | TAD120BHC TAD120CHC TAD121CHC TD100CHC TD120BHC TD121CHC |
| Application | Oil Cooler and Installation Components Oil Cooler with Installation Components Oil Filter and Installation Components Oil Filter with Installation Components |
| Specification | |
| Descriptions | Class see group 2A See group 2A See group 2B |
