Bracket 846814

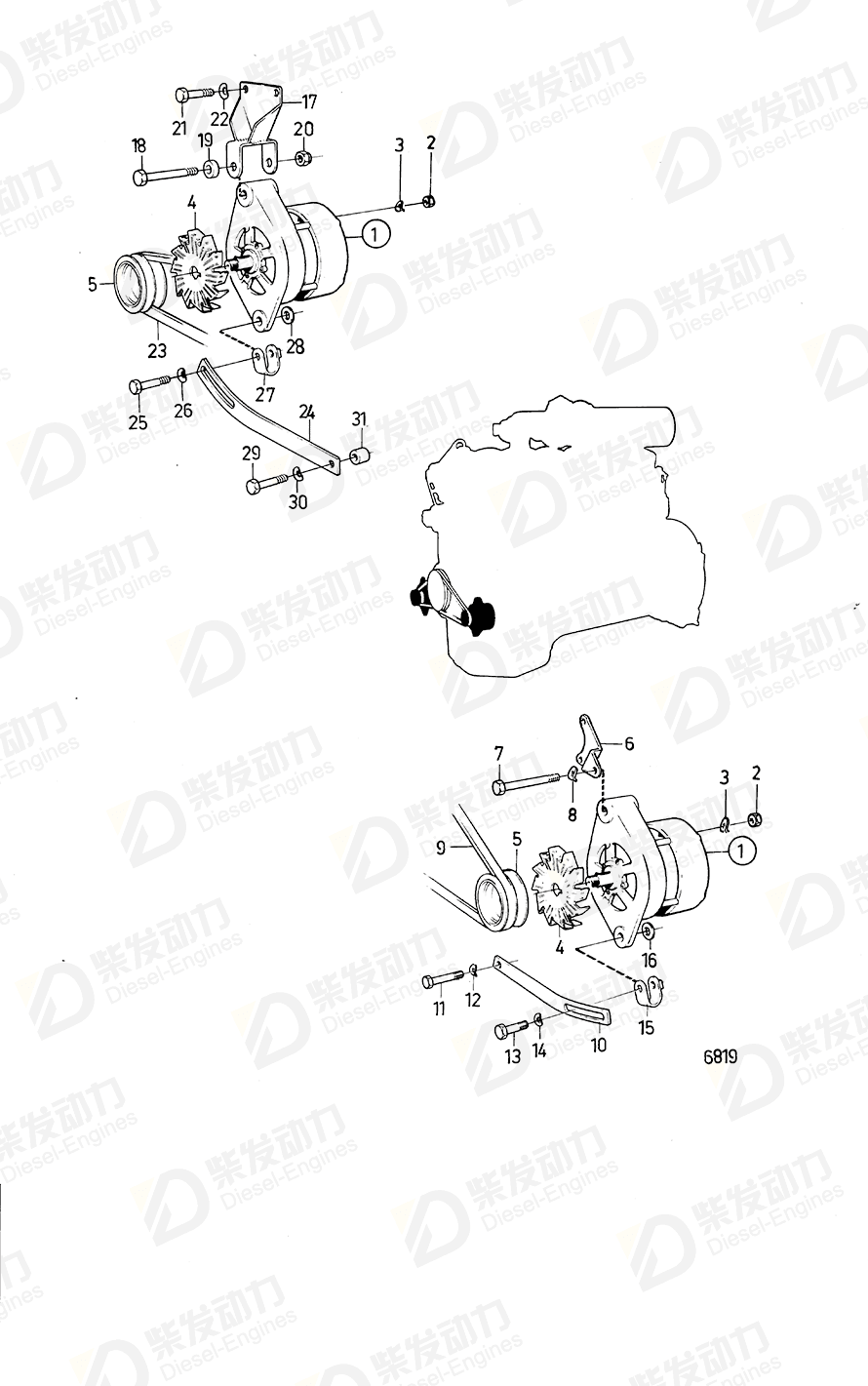

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 2 | For 24 voltage electric system., 24V 55A |
| 2 | Hexagon nut | 955780 | 2 | |
| 2 | Hexagon nut | 955781 | 2 | |
| 3 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 3 | Spring washer | 941906 | 2 | |
| 5 | Pulley | 822573 | 2 | |
| 6 | Bracket | 468299 | 1 | |
| 7 | Hexagon screw | 955555 | 1 | L=83mm |
| 8 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 9 | V-belt | 966988 | 1 | |
| 10 | Tensioner | 847453 | 1 | |
| 11 | Hexagon screw | 955542 | 1 | |
| 12 | Spring washer | 942336 | 1 | |
| 13 | Hexagon screw | 955299 | 1 | |
| 14 | Spring washer | 941907 | 1 | |
| 15 | Tensioning loop | 466734 | 1 | |
| 16 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 17 | Bracket | 846814 | 1 | |
| 18 | Hexagon screw | 955555 | 1 | L=83mm |
| 20 | Lock nut | 950355 | 1 | |
| 21 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 22 | Spring washer | 942336 | 2 | |
| 23 | V-belt | 966925 | 1 | L = 1288 MM |
| 25 | Hexagon screw | 955299 | 1 | |
| 26 | Spring washer | 941907 | 1 | |
| 27 | Tensioning loop | 466735 | 1 | |
| 28 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 29 | Hexagon screw | 955542 | 1 | |
| 30 | Spring washer | 942336 | 1 | |
| 31 | Spacer sleeve | 846903 | 1 |
| Item | Part Name | Part No. |
| 17 | Bracket 846814 | 846814 |
| Details | |
| Engine model | TD120HPP TID120HPP |
| Application | ALTERNATOR, DOUBLE MOUNTED ALTERNATOR, LOW MOUNTED RIGHT SIDE |
