Bracket 846885

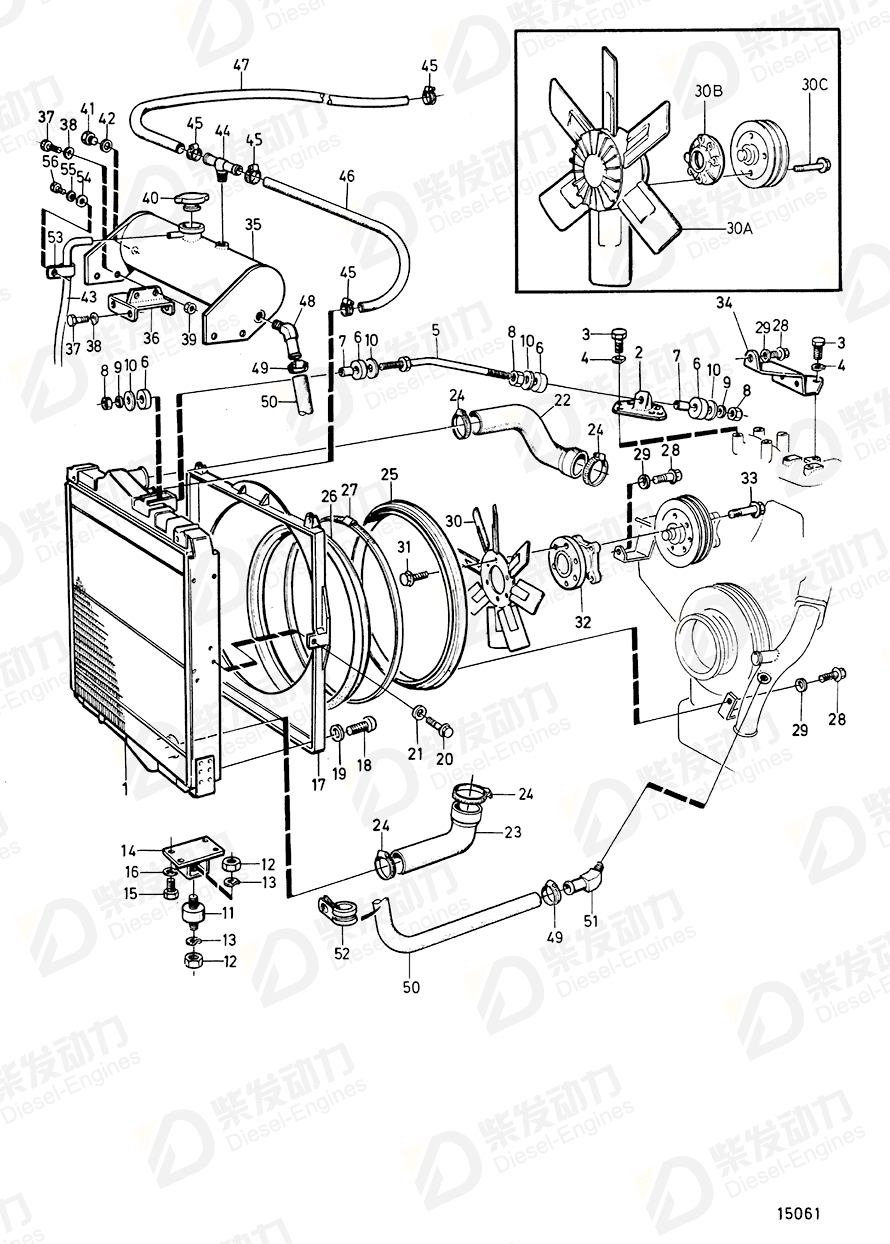

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 1664500 | 1 | 0,65m² |
| 2 | Anchorage | 1660904 | 1 | |
| 3 | Flange screw | 942402 | 3 | |
| 3 | Hexagon screw | 955523 | 4 | |
| 4 | Spring washer | 941907 | 4 | |
| 5 | Radiator stay | 1544860 | 1 | |
| 6 | Rubber bushing | 866857 | 4 | |
| 7 | Spacer sleeve | 252202 | 2 | |
| 8 | Hexagon nut | 955793 | 3 | |
| 9 | Spring washer | 941912 | 2 | |
| 10 | Washer | 191940 | 4 | |
| 11 | Rubber cushion | 849170 | 2 | |
| 12 | Hexagon nut | 955850 | 4 | |
| 13 | Spring washer | 940280 | 4 | |
| 14 | Radiator bracket | 847352 | 2 | |
| 15 | Hexagon screw | 955295 | 8 | |
| 16 | Spring washer | 941907 | 8 | |
| 17 | Fan shroud | 475820 | 1 | |
| 18 | Flange screw | 946173 | 4 | |
| 19 | Washer | 976944 | 4 | |
| 20 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 21 | Washer | 976943 | 2 | |
| 22 | Hose | 1544849 | 1 | |
| 23 | Hose | 1082205 | 1 | |
| 24 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 25 | Fan ring | 1544942 | 1 | |
| 26 | Sealing strip | 476612 | 1 | |
| 27 | Hose clamp | 1544650 | 1 | |
| 28 | Flange screw | 946173 | 4 | |
| 29 | Washer | 976944 | 4 | |
| 30 | Fan, suction type | 1674069 | 1 | D=680mm |
| 30 | Fan, pusher type | 3825017 | 1 | D=680mm |
| 31 | Flange screw | 946671 | 6 | |
| 32 | Hub | 1664828 | 1 | TD1030VE |
| 32 | Fan hub | 1675852 | 1 | TWD1031VE |
| 33 | Flange screw | 947760 | 4 | M8x40mm |
| 34 | Bracket | 1544859 | 1 | |
| 35 | Expansion tank | 3828638 | 1 | |
| 36 | Bracket | 846884 | 1 | L |
| 36 | Bracket | 846885 | 1 | Right |
| 37 | Hexagon screw | 955294 | 8 | |
| 38 | Spring washer | 941907 | 8 | |
| 39 | Hexagon nut | 955782 | 4 | |
| 40 | Pressure cap | 866095 | 1 | (350578) |
| 41 | Plug | 947660 | 1 | (836268) |
| 42 | Gasket | 11994 | 1 | |
| 43 | Hose | 192618 | 1 | L=1400mm |
| 44 | T-pipe | 948092 | 1 | |
| 45 | Hose clamp | 994556 | 4 | |
| 46 | Rubber hose | 943366 | 1 | L=600mm late type |
| 47 | Rubber hose | 943366 | 1 | L=600mm late type |
| 48 | Elbow nipple | 942240 | 1 | |
| 49 | Hose clamp | 943471 | 2 | (951787) |
| 50 | Hose | 952969 | 1 | (943368) L=600mm |
| 51 | Elbow nipple | 942240 | 1 | |
| 51 | Elbow nipple | 942649 | 1 | |
| 52 | Clamp | 949379 | 1 | |
| 53 | Clamp | 18387 | 1 | |
| 54 | Washer | 976943 | 1 | |
| 55 | Spring washer | 949607 | 1 | |
| 56 | Hexagon screw | 955269 | 1 | For 1570594 |
| 30A | Fan, temp. controlled | 1660061 | 1 | |
| 30B | Spacer | 1661040 | 1 | |
| 30C | Flange screw | 948217 | 4 |
| Item | Part Name | Part No. |
| 36 | Bracket 846885 | 846885 |
| Details | |
| Engine model | TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD120HPP TD121G TD121G-87, TWD1231VE TD121GG TID120FPP TID120HPP TWD1230ME |
| Application | RADIATOR AND FAN WITH FAN COVER AND INSTALLATION COMPONENTS Radiator and Fan with Fan Cover and Installation Components: A Radiator and Fan with Fan Cover and Installation Components: B RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator, Expansion Tank and Fan |
| Specification | |
| Descriptions | Right |
