Bracket 846999

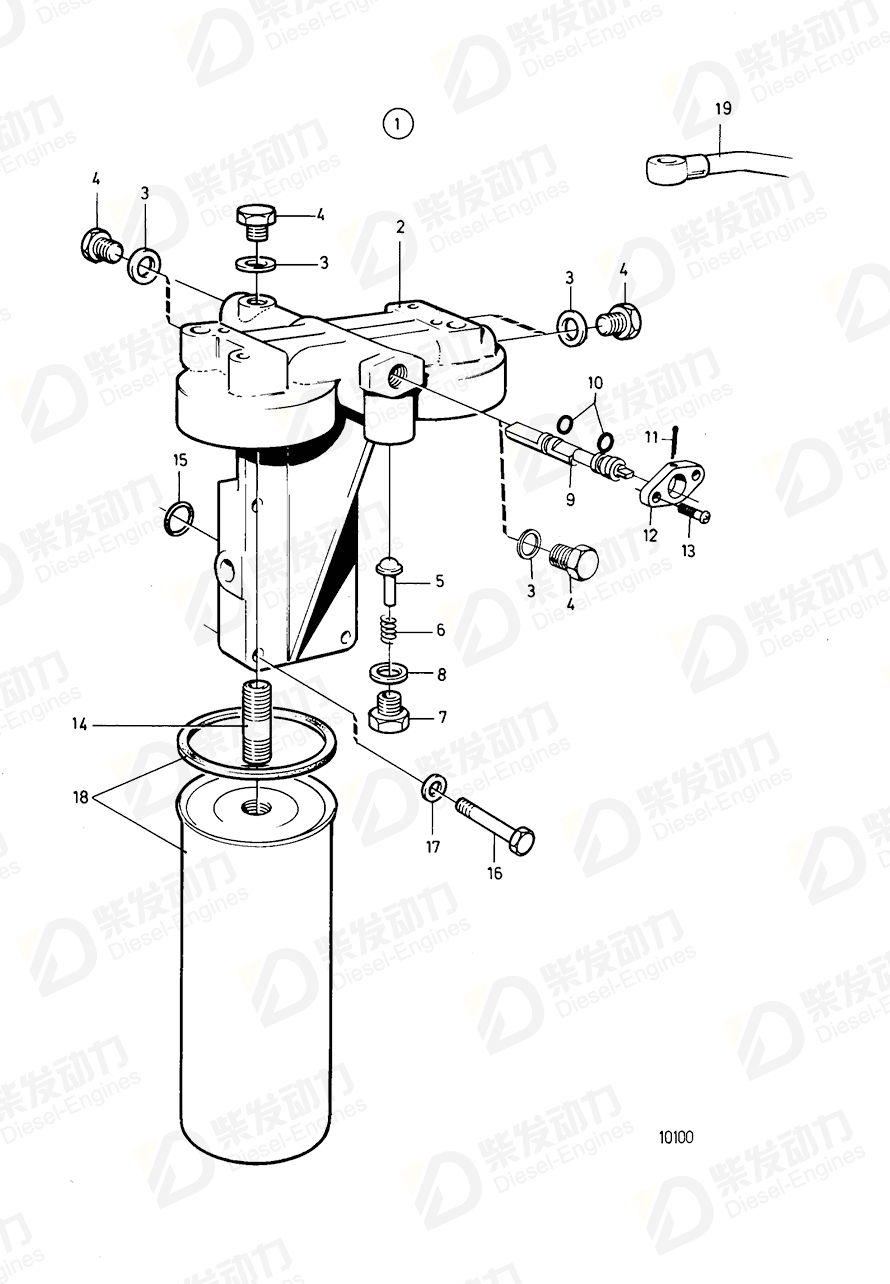

| No. | Part Name | Part Number | Qty | Description |
| 2 | Bracket | 846999 | 1 | |
| 3 | Gasket | 957180 | 5 | |
| 4 | Plug | 914391 | 5 | EXCL. SPEC. 9882, 9961, 9982. |
| 5 | Valve cone | 471085 | 1 | |
| 6 | Compression spring | 466653 | 1 | |
| 7 | Plug | 466624 | 1 | |
| 8 | Gasket, plug | 18677 | 1 | |
| 9 | Valve peg | 824198 | 1 | |
| 10 | O-ring | 925057 | 2 | |
| 11 | Split pin | 907868 | 1 | |
| 12 | Flange | 824195 | 1 | |
| 13 | Cross recessed screw | 950022 | 2 | EXCL. SPEC. 9882, 9961, 9982 |
| 14 | Nipple | 466623 | 2 | |
| 15 | O-ring | 949657 | 2 | (925060) |
| 16 | Hexagon screw | 955537 | 4 | |
| 17 | Spring washer | 942336 | 4 | |
| 18 | Oil filter | 466634 | 2 |
| Item | Part Name | Part No. |
| 2 | Bracket 846999 | 846999 |
| Details | |
| Engine model | TD100CRC TD120BRC TD121CRC |
| Application | Oil Filter and Installation Components |
