Bracket 847660

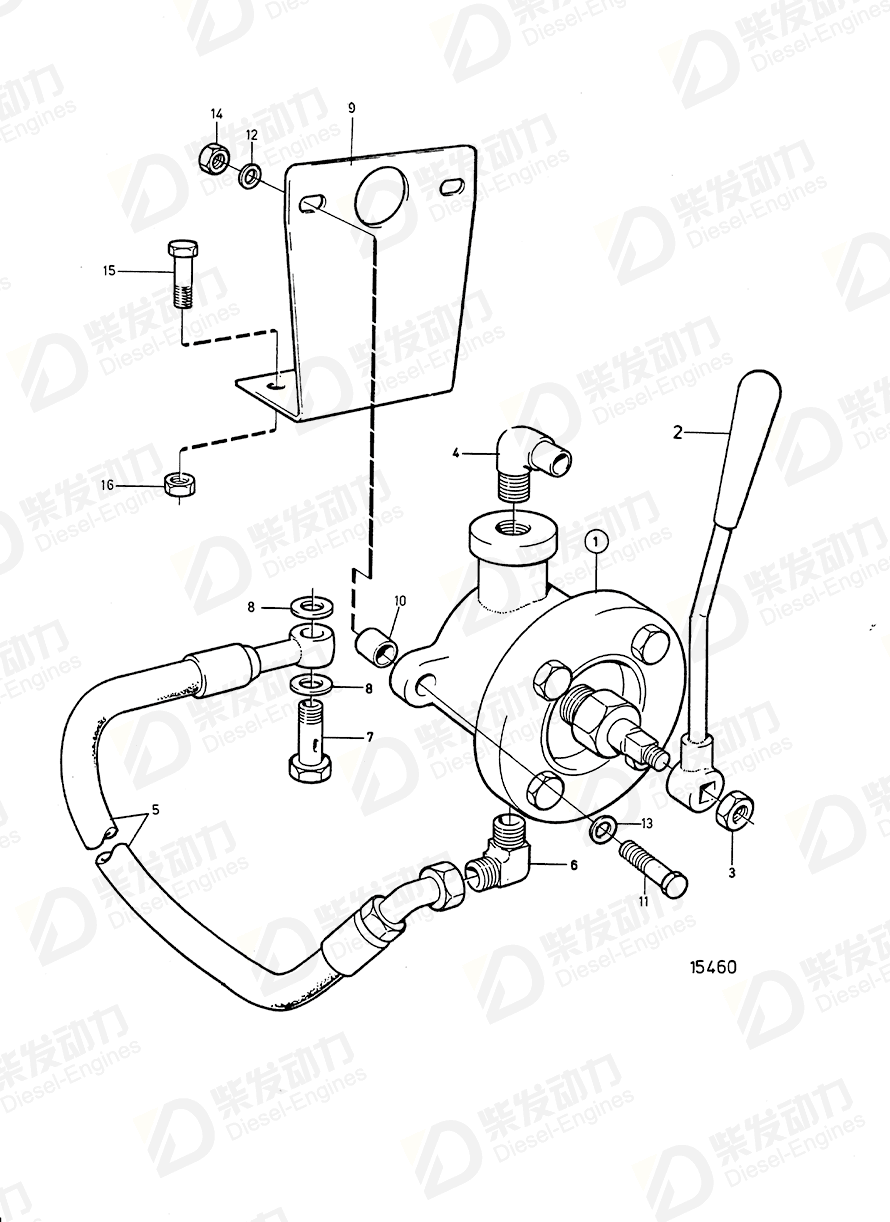

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955783 | 1 | |
| 4 | Hose nipple | 961610 | 1 | (803490) |
| 5 | Rubber hose | 821944 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 5 | Oil hose | 847395 | 1 | |
| 6 | Elbow nipple | 957111 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 7 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 7 | Hollow screw | 966821 | 1 | |
| 8 | Gasket | 18813 | 2 | |
| 8 | Gasket | 957185 | 2 | |
| 9 | Bracket | 847660 | 1 | |
| 10 | Spacer sleeve | 823492 | 2 | |
| 11 | Hexagon screw | 955298 | 2 | L=50mm |
| 12 | Spring washer | 941907 | 2 | |
| 13 | Washer | 960141 | 2 | |
| 14 | Hexagon nut | 955782 | 2 | |
| 15 | Flange screw | 946817 | 2 | |
| 16 | Flange nut | 971096 | 2 |
| Item | Part Name | Part No. |
| 9 | Bracket 847660 | 847660 |
| Details | |
| Engine model | TD610G, TWD610G TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD710G, TWD710G TWD610P TWD710P, TAD730P |
| Application | Oil Bilge Pump with Installation Parts, Earlier Prod: A Oil Bilge Pump with Installation Parts, Earlier Prod: B Oil Bilge Pump, Manual Oil Drain Pump and Installation Parts, Frame Mounted: A Oil Drain Pump and Installation Parts, Frame Mounted: B Oil Sump Pump and Install. Comps. Earlier Production |
