Bracket 848155

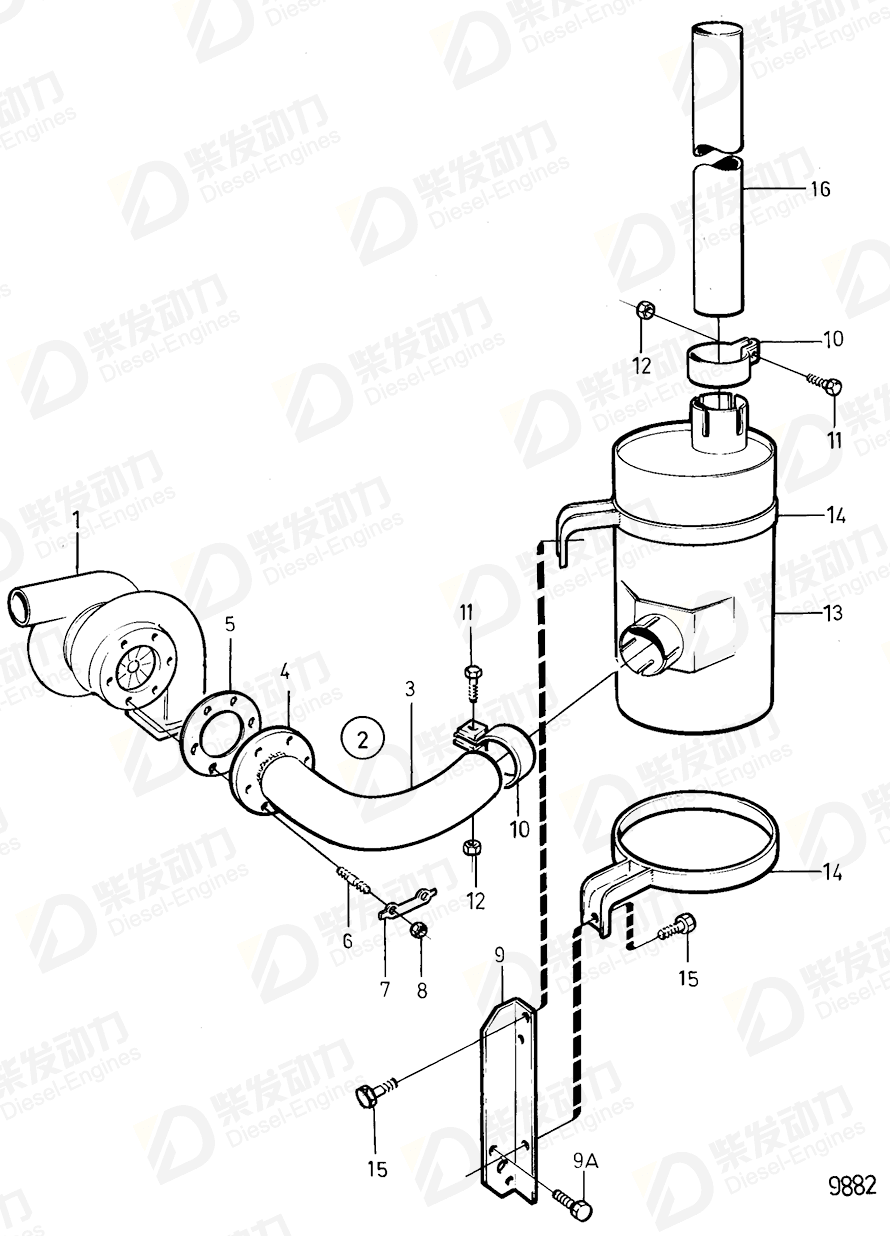

| No. | Part Name | Part Number | Qty | Description |
| 2 | Exhaust pipe | 848157 | 1 | |
| 4 | Flange | 844935 | 1 | |
| 5 | Gasket | 424628 | 1 | Included in gasket kit. |
| 6 | Stud | 924064 | 6 | |
| 7 | Tab washer | 947071 | 3 | TD60B PP |
| 8 | Hexagon nut | 946330 | 6 | |
| 9 | Bracket | 848155 | 1 | |
| 10 | Clamp | 191296 | 2 | Suction type |
| 11 | Flange screw | 965185 | 4 | |
| 12 | Flange nut | 971095 | 4 | Alt |
| 13 | Silencer | 476584 | 1 | |
| 14 | Bracket | 1575983 | 2 | |
| 15 | Flange screw | 946502 | 2 | When rubber cushions not been used for the radiator., L=20mm |
| 16 | Exhaust pipe | 848192 | 1 | |
| 9A | Flange screw | 965194 | 2 |
| Item | Part Name | Part No. |
| 9 | Bracket 848155 | 848155 |
| Details | |
| Engine model | TD71AP, TID71AP TWD710P, TAD730P |
| Application | Silencer and Installation Components, &Power &Pack Silencer, Engine Mounted: B |
