Bracket 849493

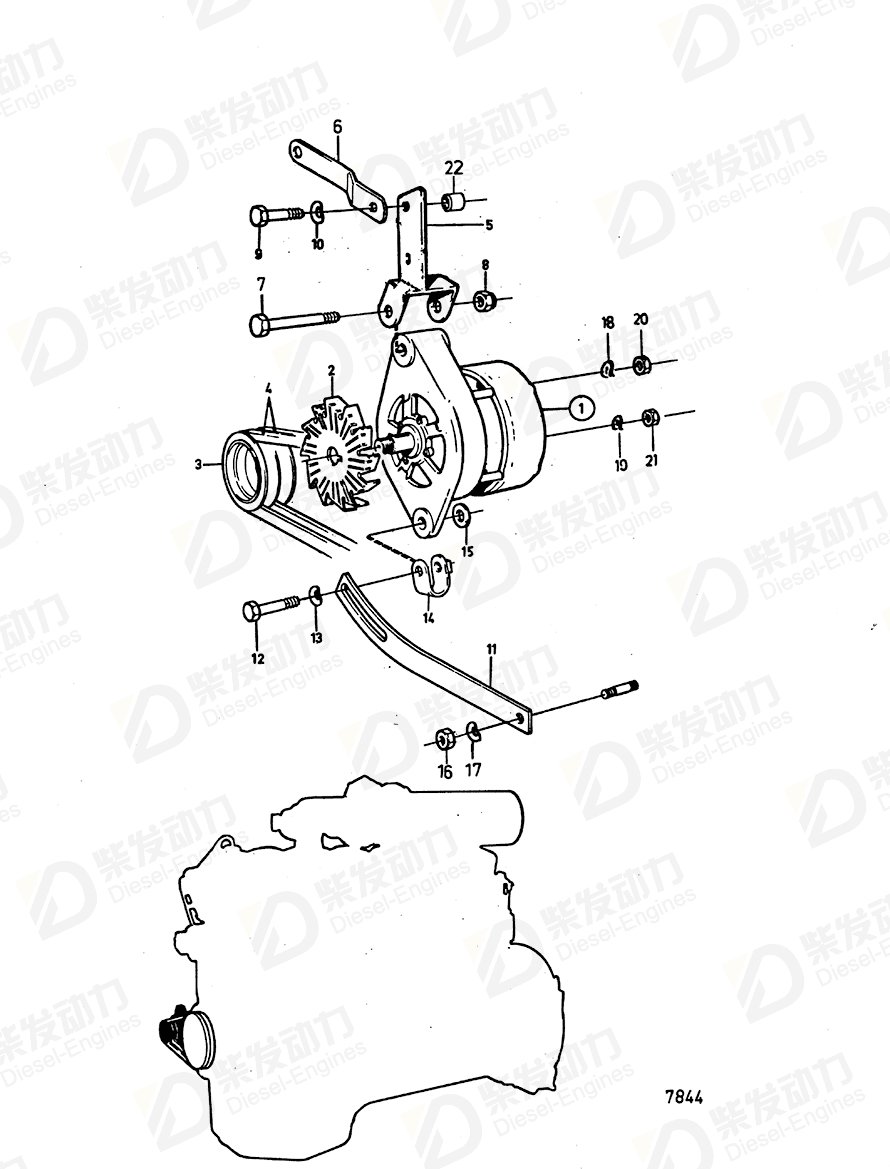

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 2 | Fan | 847707 | 1 | Included in alternator |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 966988 | 1 | |
| 5 | Support bracket kit | 849613 | 1 | (847233) |
| 6 | Bracket | 849493 | 1 | |
| 7 | Hexagon screw | 955555 | 1 | L=83mm |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Hexagon screw | 955527 | 2 | |
| 10 | Spring washer | 941907 | 2 | |
| 11 | Tensioner | 966797 | 1 | |
| 12 | Hexagon screw | 955299 | 1 | |
| 13 | Spring washer | 941907 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 15 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 16 | Hexagon nut | 955826 | 1 | |
| 17 | Spring washer | 941907 | 1 | |
| 18 | Spring washer | 941906 | 1 | |
| 19 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 20 | Hexagon nut | 955781 | 1 | |
| 21 | Hexagon nut | 955780 | 1 | |
| 22 | Spacer sleeve | 847150 | 1 |
| Item | Part Name | Part No. |
| 6 | Bracket 849493 | 849493 |
| Details | |
| Engine model | TD60D-83, TID60D, TID60DG TD70G-83 TID70G |
| Application | ALTERNATOR LOW MOUNTED RIGHT SIDE Alternator, Low Mounted Right Side: A Alternator, Low Mounted Right Side: B |
