Bracket 862161

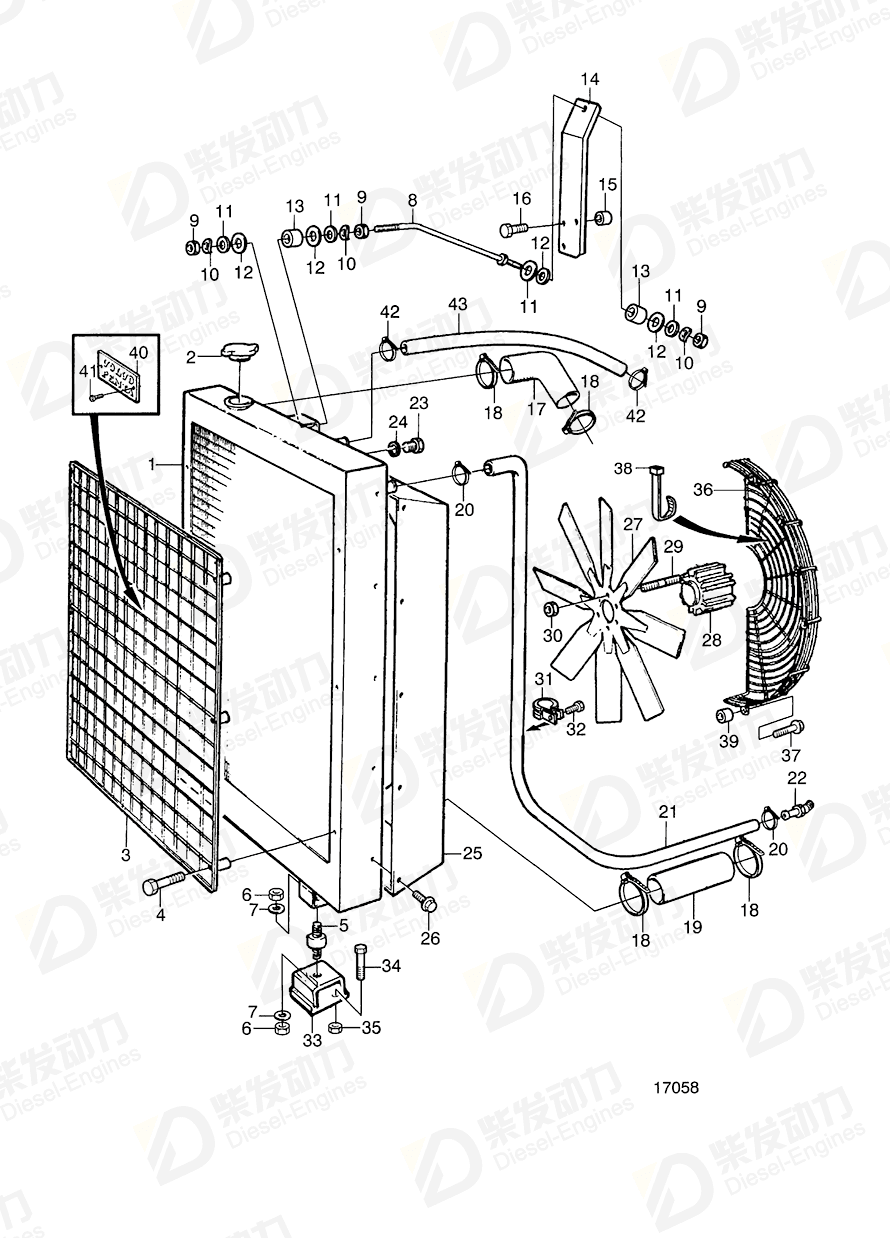

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3829278 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Radiator protector | 862959 | 1 | |
| 4 | Flange screw | 984738 | 6 | |
| 5 | Rubber cushion | 849170 | 2 | |
| 6 | Hexagon nut | 955850 | 4 | |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Radiator stay | 862159 | 1 | |
| 9 | Hexagon nut | 955793 | 3 | |
| 10 | Spring washer | 941912 | 3 | |
| 11 | Washer | 191940 | 4 | |
| 12 | Rubber bushing | 866857 | 4 | |
| 13 | Spacer sleeve | 252202 | 2 | |
| 14 | Bracket | 862161 | 1 | |
| 15 | Spacer sleeve | 847239 | 3 | |
| 17 | Radiator hose | 862102 | 1 | |
| 18 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 19 | Radiator hose | 849738 | 1 | |
| 20 | Hose clamp | 994560 | 2 | |
| 21 | Rubber hose | 944386 | 1 | |
| 22 | Elbow nipple | 942649 | 1 | |
| 23 | Plug | 947660 | 1 | (836268) |
| 24 | Gasket | 11994 | 1 | |
| 25 | Fan shroud | 3825554 | 1 | SNXXXXX19090- |
| 26 | Flange screw | 966807 | 12 | |
| 27 | Fan, pusher type | 848924 | 1 | |
| 27 | Fan, suction type | 848925 | 1 | For external produced radiator., D=890mm, alt |
| 27 | Fan | 3828963 | 1 | Suction fan, D=890mm |
| 27 | Fan | 3828964 | 1 | |
| 28 | Fan hub | 3828711 | 1 | For plastic fan |
| 28 | Fan hub | 3828712 | 1 | (862495) |
| 29 | Stud | 969199 | 6 | |
| 30 | Flange nut | 990941 | 6 | |
| 31 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 32 | Hexagon screw | 945970 | 1 | |
| 33 | Bracket | 3826264 | 2 | (865242) |
| 34 | Flange screw | 984753 | 4 | |
| 35 | Flange lock nut | 971098 | 4 | |
| 36 | Fan guard | 3825490 | 2 | |
| 37 | Flange screw | 984740 | 12 | |
| 38 | Cable tie | 948211 | 8 | |
| 39 | Spacer sleeve | 807425 | 12 | L=24mm |
| 40 | Emblem | 846118 | 1 | |
| 41 | Screw | 941651 | 2 | |
| 42 | Hose clamp | 994556 | 2 | |
| 43 | Rubber hose | 943366 | 1 | L=600mm late type |
| Item | Part Name | Part No. |
| 14 | Bracket 862161 | 862161 |
| Details | |
| Engine model | TID162AGP, TID162AP TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | Radiator and Fan Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod. Radiator and Metal Fan |
